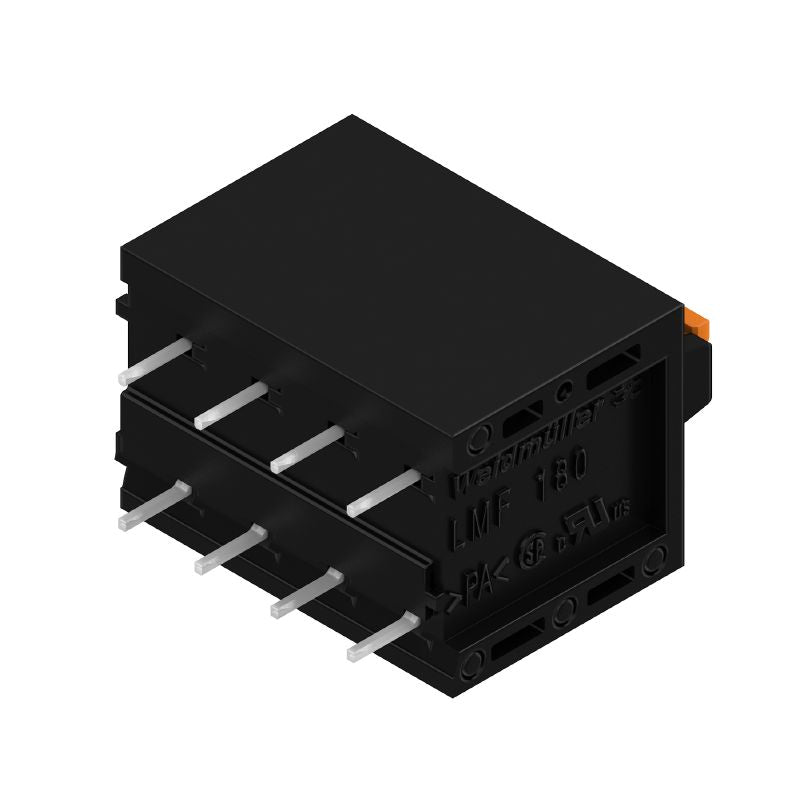

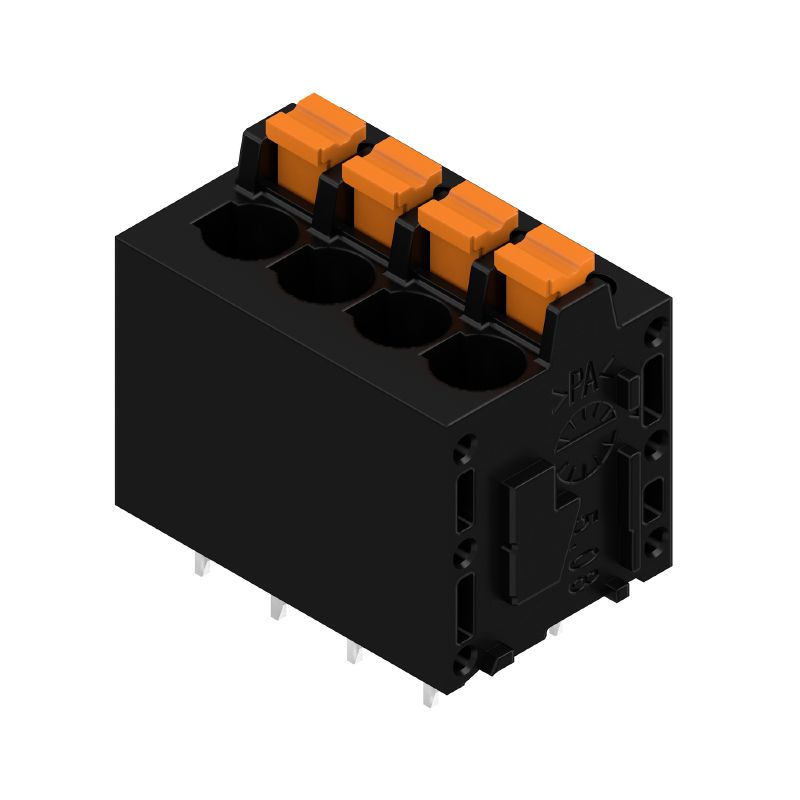

1426080000 - 5.08mm Black PCB Terminal, 4 Poles, 180° Angle (Pack of 70)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the LMF 508/04/180 35SN BK BX printed circuit board terminal, designed with a 508 mm pitch and accommodating four poles positioned at a 180° angle Each terminal features 35 mm long solder pins, coated in durable tin and presented in an elegant black color It boasts a PUSH IN actuator, offering a maximum clamping range of 25 mm² for secure connections Each unit comes packaged in a convenient box format and adheres to RoHS compliance.

This terminal is an excellent choice for a variety of applications requiring dependable PCB connectivity.

Features and Benefits:

•Insulating material made from Wemid (PA).

•Compliant with RoHS without exemption.

•Touch-safe protection according to DIN VDE standards.

•Solder eyelet hole diameter of 1.1 mm.

•Mating cycles rated up to 24 A at 20 °C.

•Operating temperature range from -50 °C to +120 °C.

Specifications:
