1268810000 - HDC HP 550 M 70 Crimp Connector, 70mm², -50°C to 120°C

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

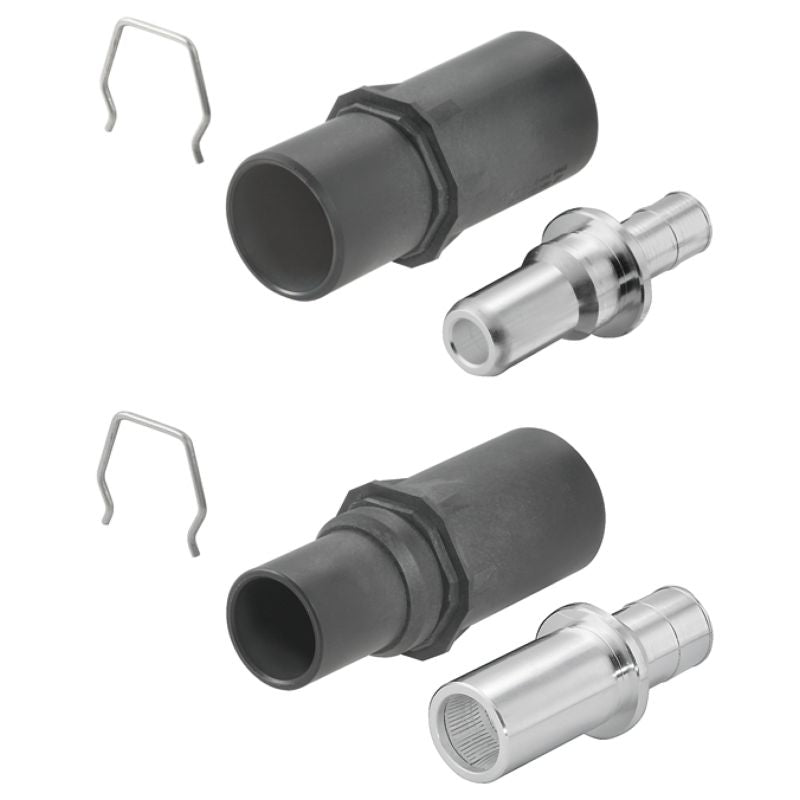

Introducing the HDC HP 550 M 70, a reliable component specifically crafted for crimp connection installations with a size capacity of 550 Adhering to RoHS compliance, this model can withstand an extensive temperature range from -50 °C to 120 °C Constructed from a durable copper alloy, it features a conductor cross-section of 70 mm² The insulating material is made from PA GF, ensuring it meets stringent flammability ratings and electrical resilience standards, making it an ideal choice for your installation needs.

Features and Benefits:

•Compliant with RoHS; includes exemptions.

•Operating voltage max of 3,000 V.

•Allows for a rated current of 250 A following DIN EN 61984 standards.

•Plugs can endure 500 or more insertions.

•Contains a silver passivated surface finish.

Specifications:
