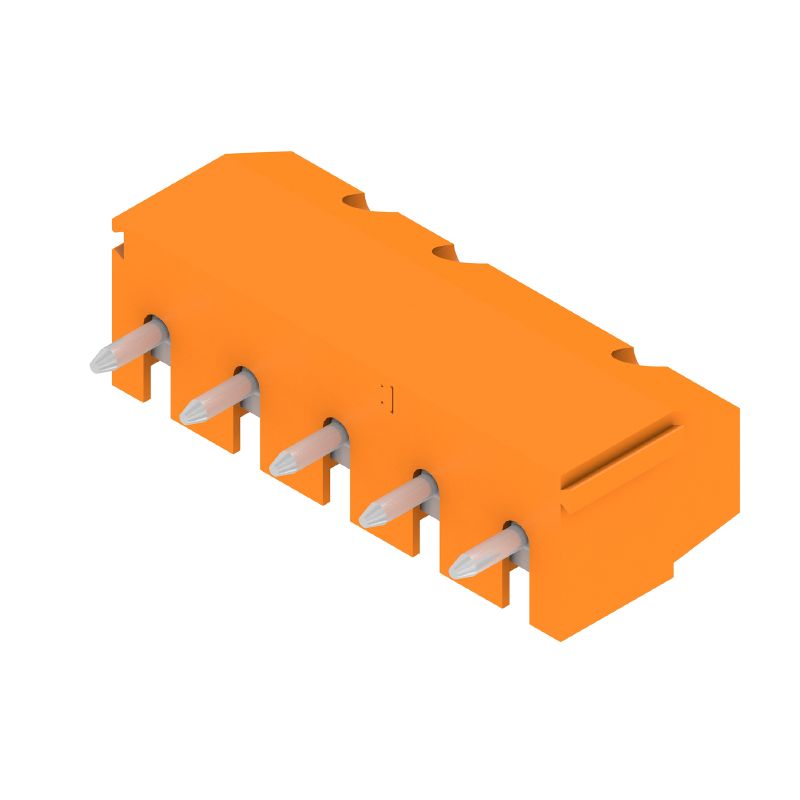

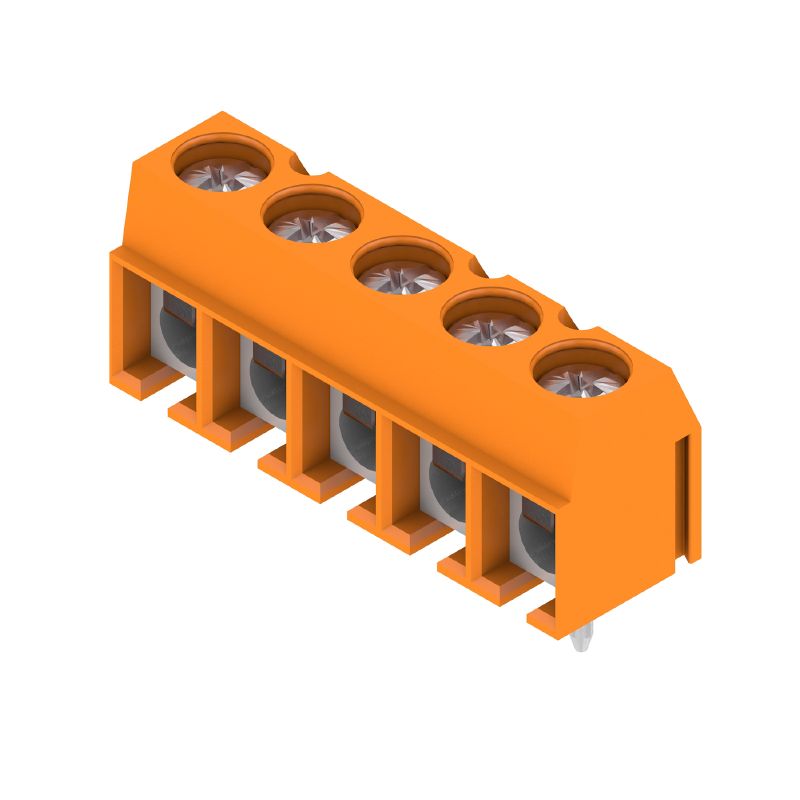

1234670000 - Orange 5-Pole PCB Terminal 5mm Pitch, 90° Angle (Pack of 100)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PM 500/05/90 35SN OR BX, a versatile printed circuit board terminal designed for efficiency This terminal boasts a 500 mm pitch and features a compact 5-pole configuration at a 90° angle With a solder pin length of 35 mm, it is finished in a vibrant orange color and is tinned for enhanced conductivity It utilizes a reliable pressure clamp connection method, accommodating a maximum clamping range of 2.

5 mm² This box-type terminal is suitable for a wide range of applications and is compliant with RoHS standards, carrying a UL file number E60693 for assurance of quality and safety.

Features and Benefits:

•Pressure clamp connection method.

•THT solder connection for mounting.

•Touch-safe protection according to DIN standards.

•Compact design with a 90° conductor outlet direction.

•Environmentally compliant with RoHS.

•Meets UL and CSA standards.

Specifications:
