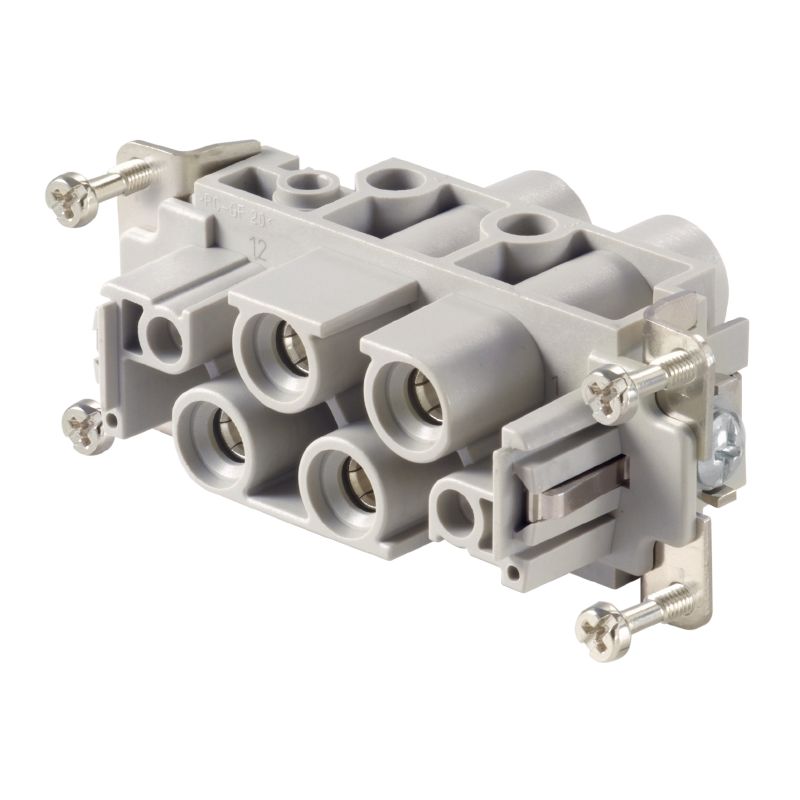

1023230000 - 6-Pole Female Connector, 830V, 80A, -40°C to 125°C

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the HDC S4/2 FS female connector, expertly crafted for applications that require a robust connection with a voltage rating of 830 V and a current capacity of up to 80 A Featuring a secure screw connection, this connector is made from a resilient copper alloy to ensure longevity and reliability It includes six poles that facilitate both power and signal transmission, with an installation size categorized as 6.

Designed to withstand challenging environments, this connector operates effectively in temperatures ranging from -40 °C to 125 °C Additionally, it meets ROHS compliance standards with exemptions and boasts multiple chemical resistance properties, making it suitable for a variety of industrial applications.

Features and Benefits:

•Constructed from copper alloy.

•Designed for a wide temperature range from -40 °C to 125 °C.

•Compliant with ROHS and REACH regulations.

•Features a screw connection for secure locking.

•Includes 6 poles for versatile connectivity.

•High durability with a minimum of 500 plugging cycles.

•Low smoke emission as per DIN EN 45545-2.

Specifications:
