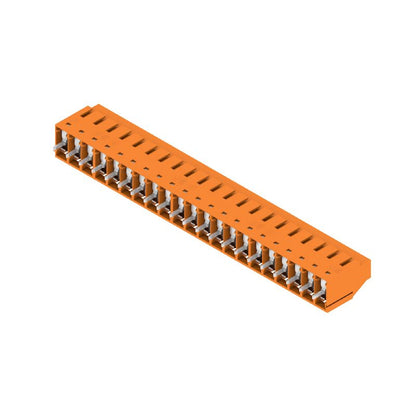

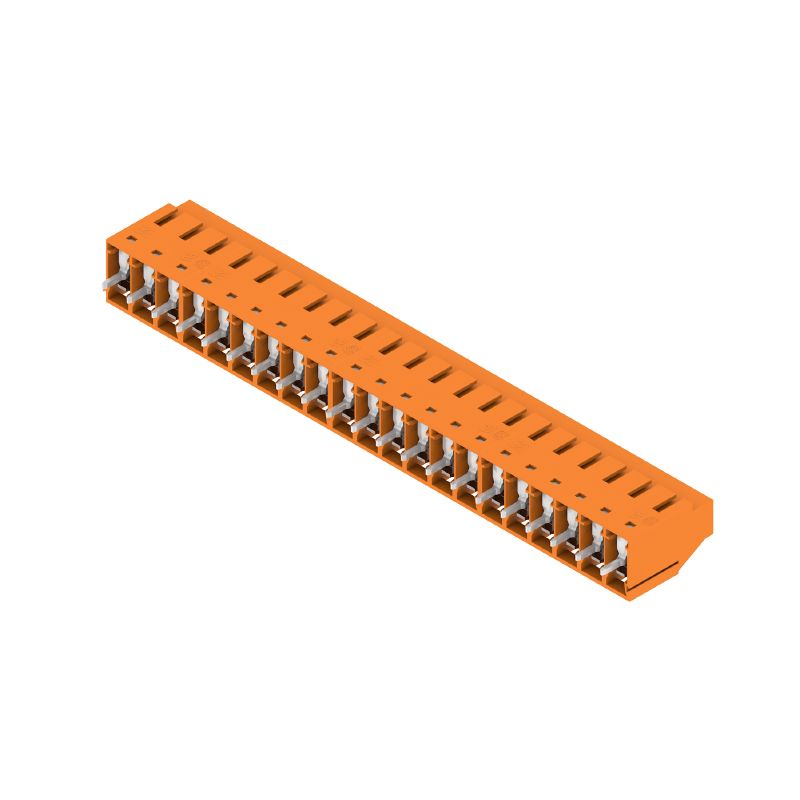

1002020000 - 5.08mm 21-Pole Vertical PCB Terminal with Orange Housing (Pack of 12)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile printed circuit board terminal with a 508 mm pitch, expertly crafted for optimal connectivity This component includes 21 poles arranged vertically at a 90° angle, enhancing space efficiency Each solder pin is 32 mm long and features a protective tin coating for improved durability The terminal boasts a clamping yoke connection method with an impressive clamping range of up to 6 mm², all housed within a striking orange casing.

This product meets stringent standards with RoHS compliance and holds a UL certification number E60693, ensuring reliability and safety for your electronic applications.

Features and Benefits:

•Clamping yoke connection for secure wire attachment.

•Complies with RoHS regulations.

•Insulating material made from Wemid (PA).

•Touch-safe protection according to DIN VDE standards.

•Lightweight design at 34g.

•Available in a cardboard box packaging.

Specifications:
