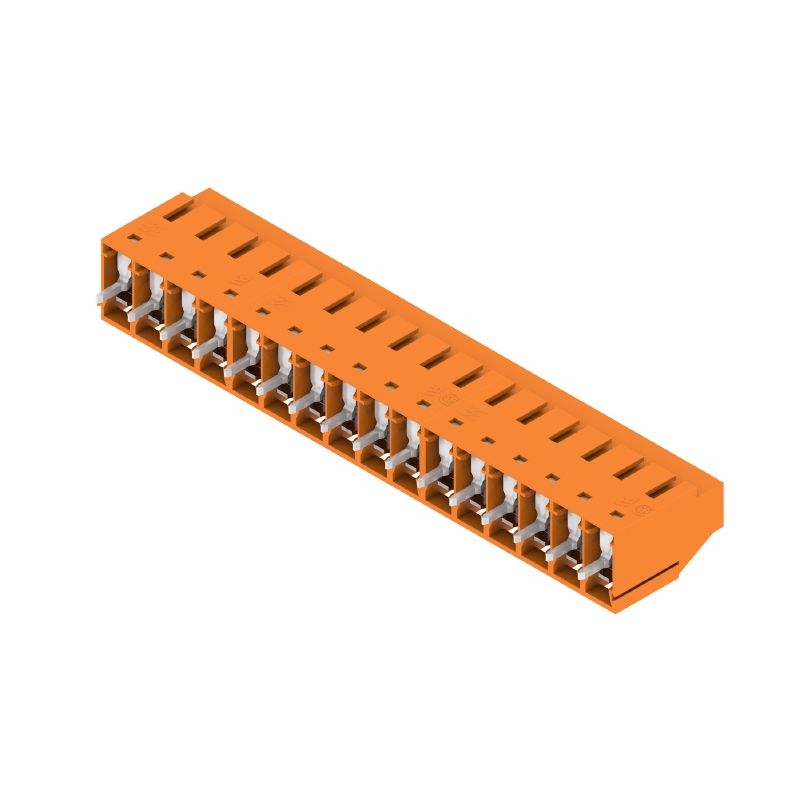

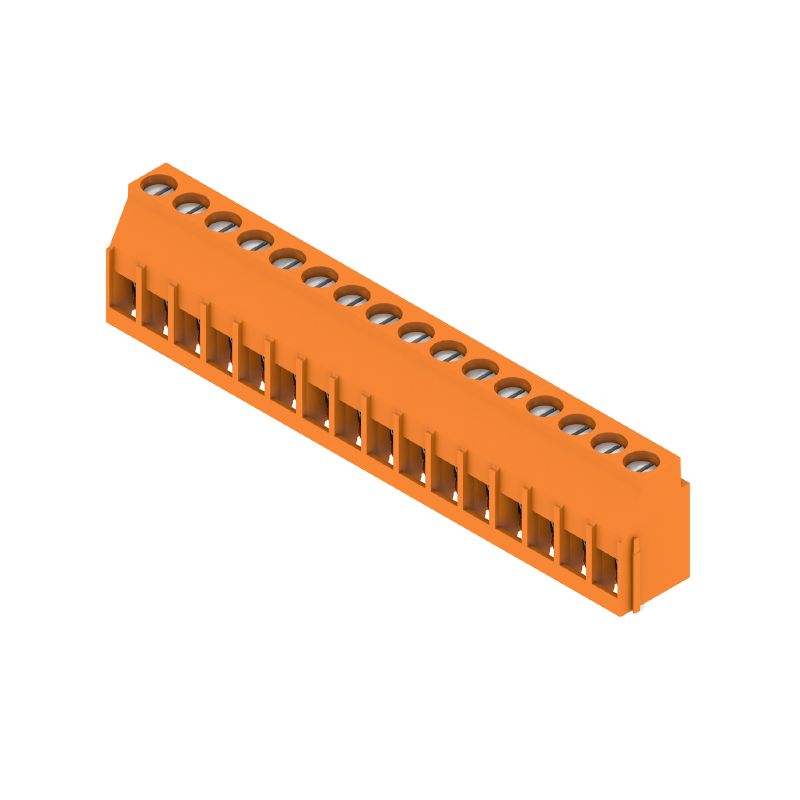

1001970000 - 5.08mm 16-Pole PCB Terminal with 3.2mm Pins, Orange (Pack of 18)

1001970000 - 5.08mm 16-Pole PCB Terminal with 3.2mm Pins, Orange (Pack of 18)

SKU: 1001970000 Download PDF

Variant:
  • 1001970000 - 5.08mm 16-Pole PCB Terminal with 3.2mm Pins, Orange (Pack of 18)
Now $137.48
BEFORE   $0.00 Now $137.48
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a reliable printed circuit board terminal designed with functionality in mind This component features a pitch of 508 mm and is equipped with 16 poles arranged at a 90° angle for optimal connectivity The solder pins extend 32 mm and come with a tinned finish for enhanced durability Its vibrant orange color not only provides a distinctive look but also incorporates a clamping yoke connection, allowing for secure wire attachment with a maximum clamping capacity of 6 mm².

Perfect for your electronic projects!.

Features and Benefits:

    •Clamping yoke connection for reliable wire securing.

    •Compatible with 0.5 mm² to 6 mm² wire sizes.

    •Touch-safe design according to DIN VDE standards.

    •Easy mounting via THT solder connection.

Specifications:

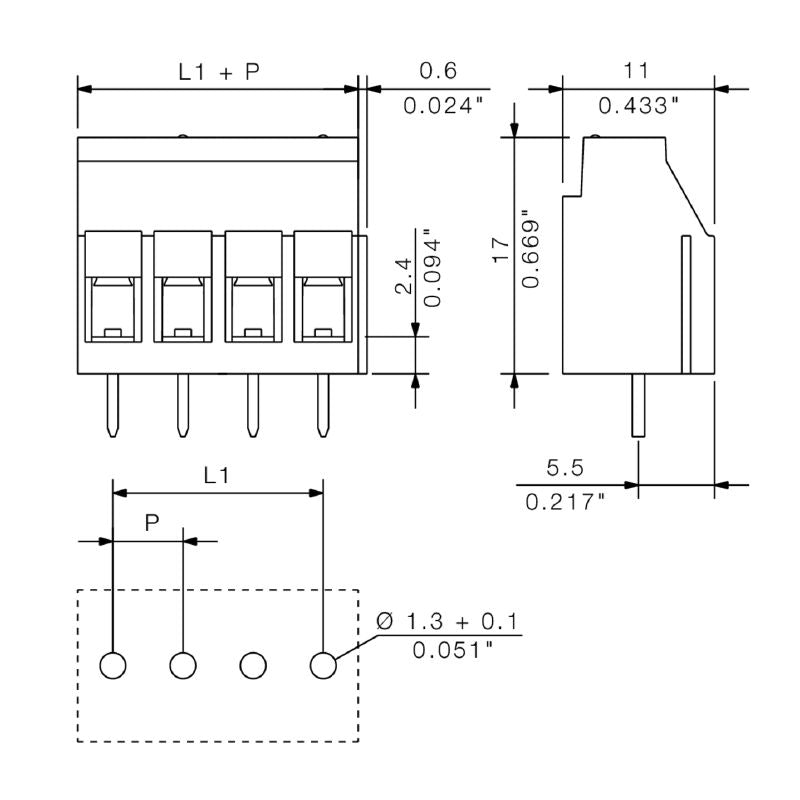

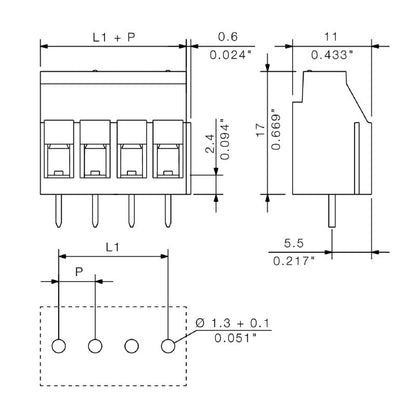

 Dimensions {'Depth': '11 mm', 'Height': '20.3 mm', 'Width': '81.93 mm'}

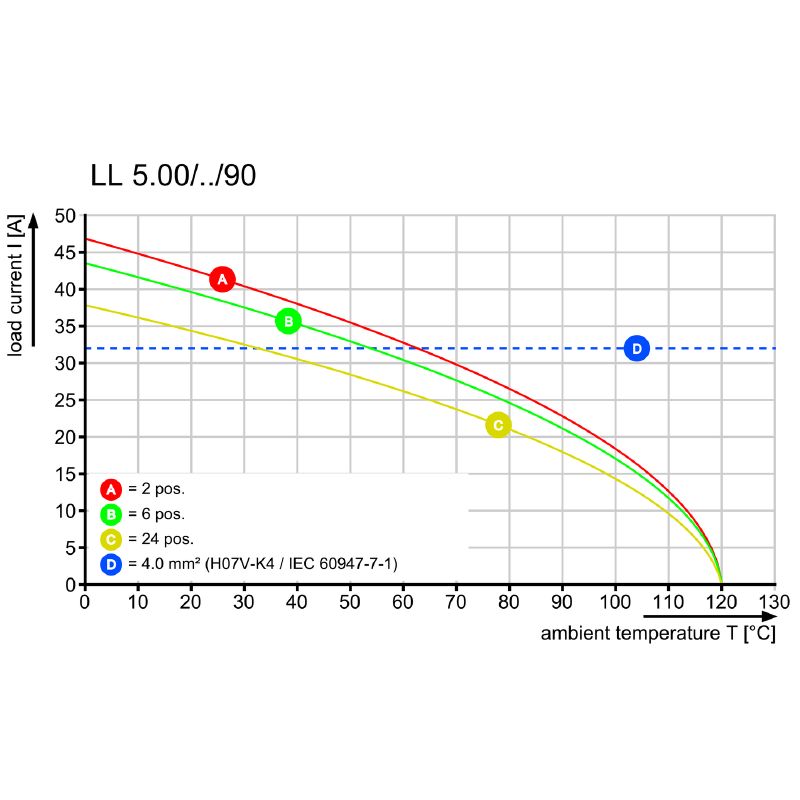

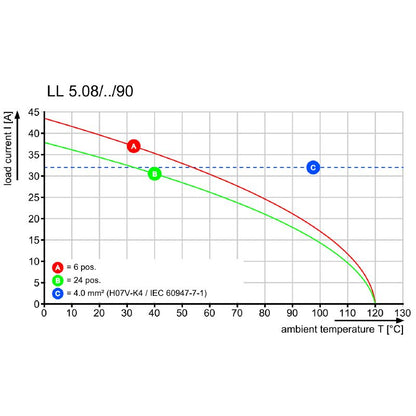

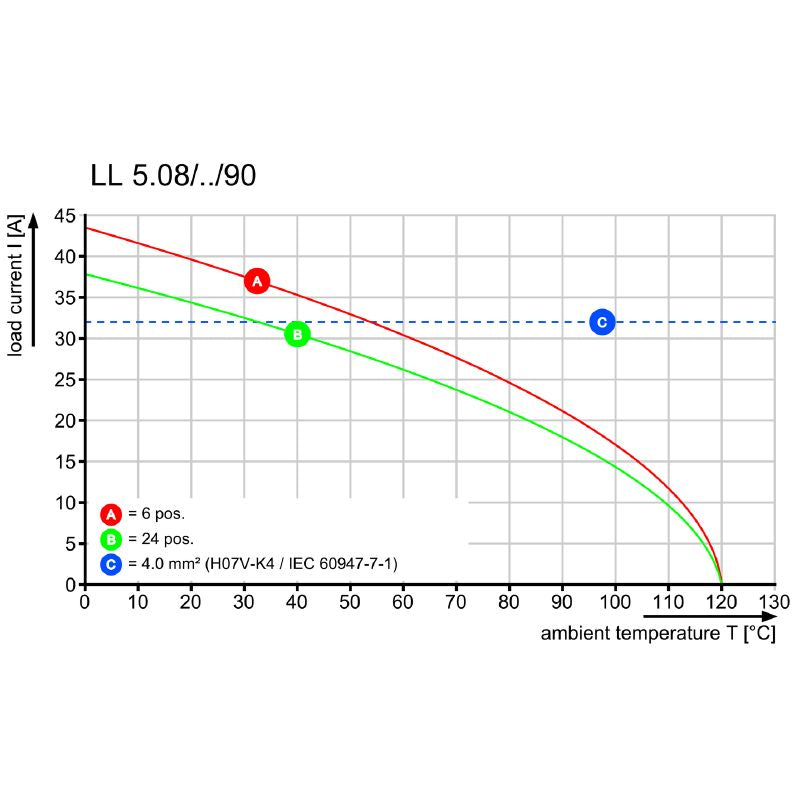

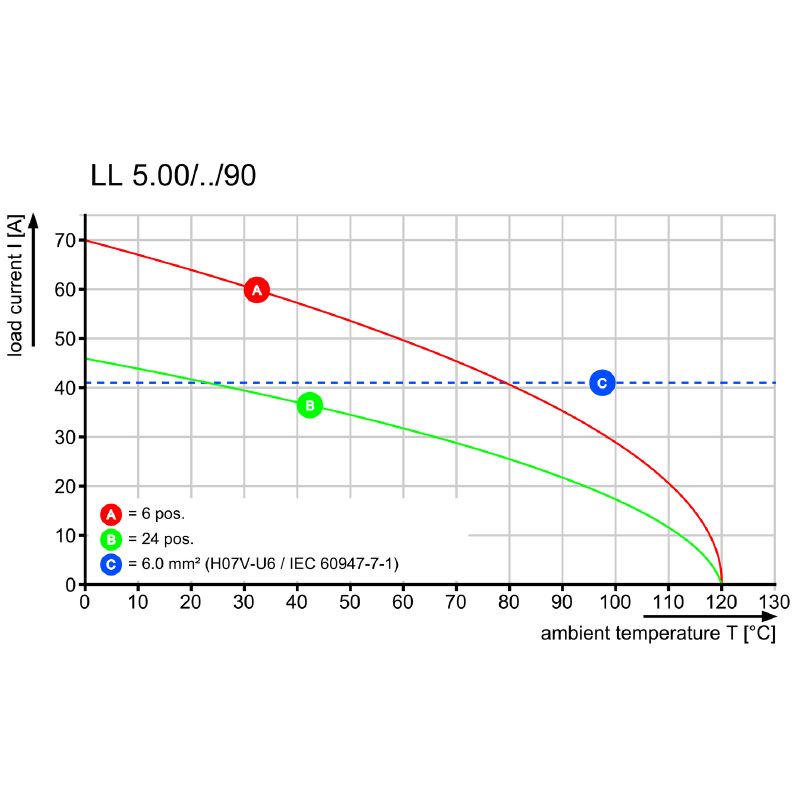

 Electrical Ratings {'IEC Voltage': '500 V', 'IEC Current': '32.5 A', 'UL Voltage': '300 V', 'UL Current': '20 A'}
 Material {'Insulating Material': 'Wemid (PA)', 'Contact Material': 'Cu-alloy'}
 Environmental Compliance {'RoHS': 'Compliant without exemption', 'REACH SVHC': 'No SVHC above 0.1 wt%'}
 Mechanical Properties {'Pin Series Quantity': '1', 'Number of Rows': '1', 'Max Adjacent Poles': '24', 'Tightening Torque Min': '0.5 Nm', 'Tightening Torque Max': '0.6 Nm', 'Stripping Length': '6 mm'}
 Temperature Ratings {'Storage Temperature Min': '-40 °C', 'Storage Temperature Max': '70 °C', 'Operating Temperature Min': '-50 °C', 'Operating Temperature Max': '120 °C'}
 Clamping Range {'Min': '0.13 mm²', 'Max': '6 mm²'}
