1001870000 - 5.08mm Orange PCB Terminal, 6 Poles, 3.2mm Pins (Pack of 60)

1001870000 - 5.08mm Orange PCB Terminal, 6 Poles, 3.2mm Pins (Pack of 60)

SKU: SKU: 1001870000   Download PDF

Select a Variant:
  • 1001870000 - 5.08mm Orange PCB Terminal, 6 Poles, 3.2mm Pins (Pack of 60)
Qty:
Regular price Now $171.77   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $171.77 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

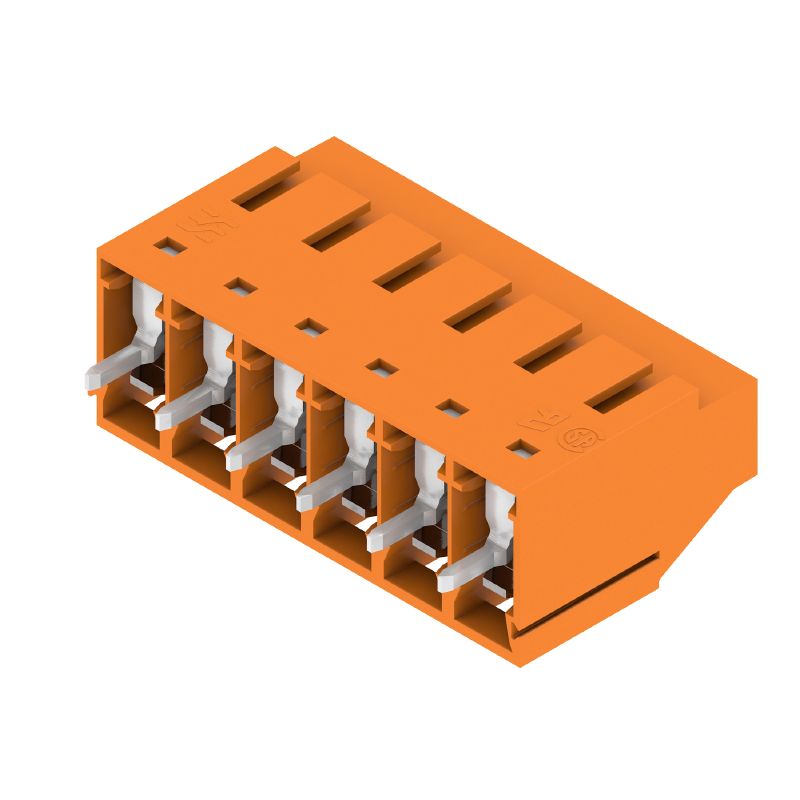

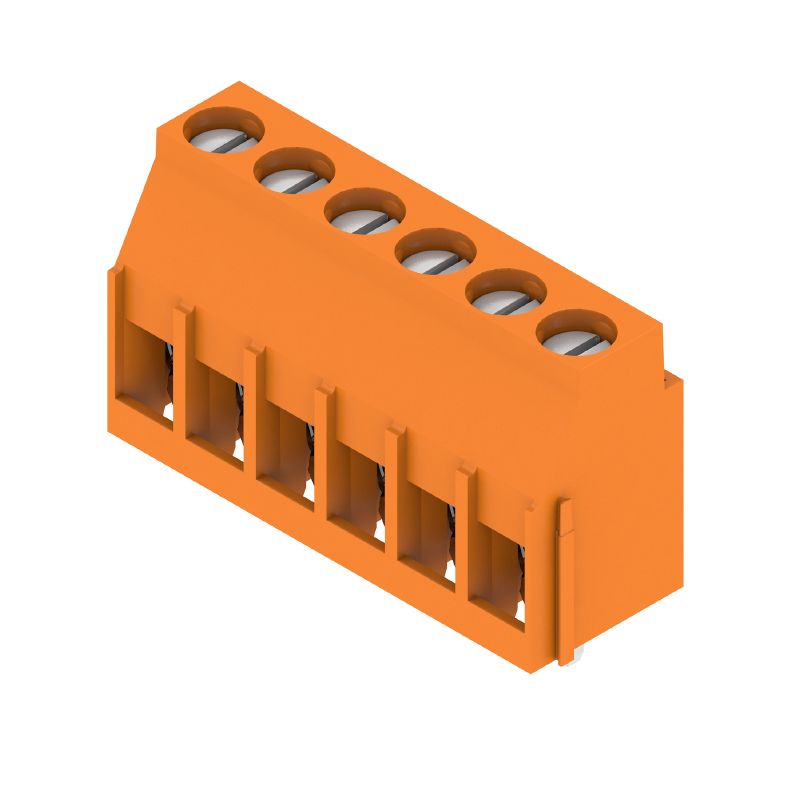

Introducing this expertly crafted printed circuit board terminal, featuring a 508 mm pitch This terminal supports six poles and includes solder pins measuring 32 mm in length Engineered for versatility, it accommodates wire sections from 05 mm² up to 6 mm² and incorporates a secure clamping yoke connection Finished in an eye-catching orange, the terminal is neatly packaged in a box for protection and ease of transport.

Additionally, it meets essential industry standards including RoHS compliance and boasts various certifications such as UL, ensuring it adheres to both IEC and UL specifications for voltage and current capabilities.

Features and Benefits:

    •Compliant with RoHS standards.

    •Using a clamping yoke connection method.

    •Designed for THT solder connections.

    •Has a touch-safe protection rated to IP20.

    •Supports versatile conductor connections.

Specifications:

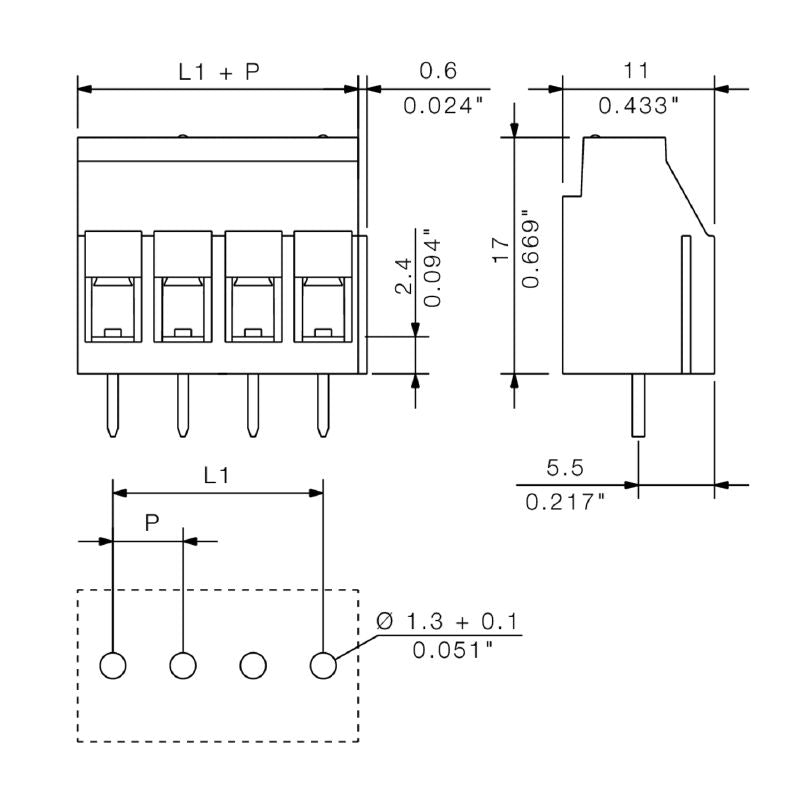

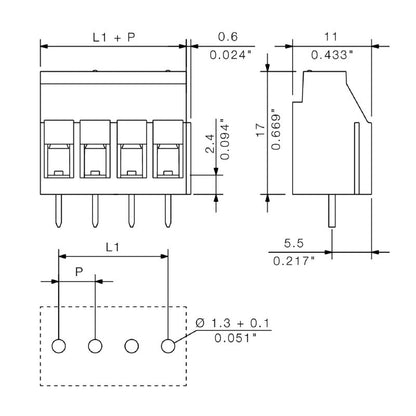

 Depth 11 mm
 Height 20.3 mm
 Width 31.13 mm
 Net weight 8.914 g
 Operating temperature, min -50 °C
 Operating temperature, max 120 °C
 Rated voltage 500 V / 320 V / 250 V

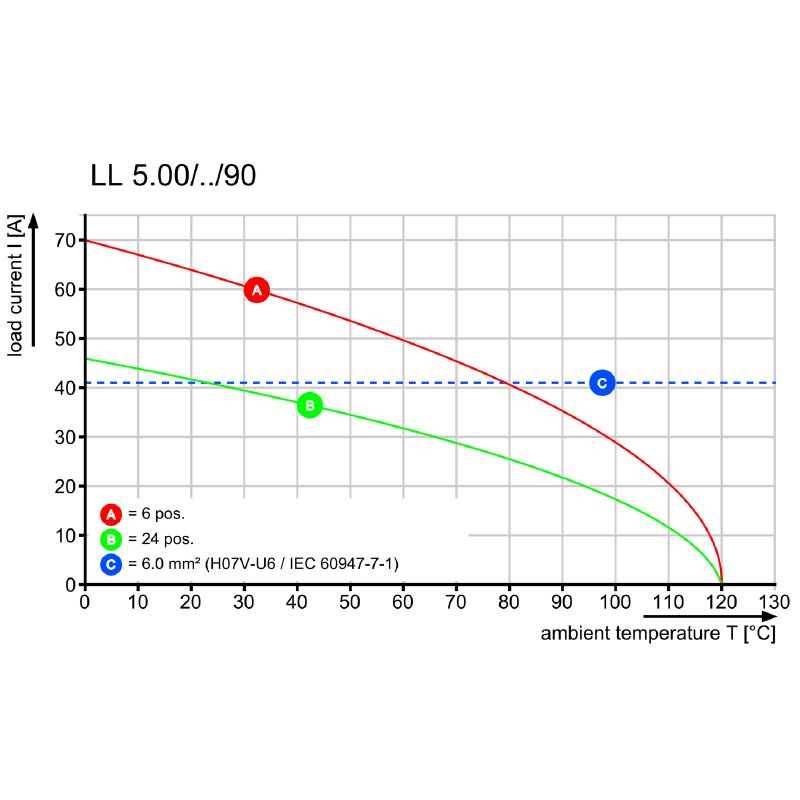

 Rated current 32.5 A / 20 A
 Clamping range, max 6 mm²
 Wire connection cross section AWG, min AWG 26
 Wire connection cross section AWG, max AWG 12
 Material Wemid (PA)
 Insulating material group I
 Flammability rating V-0
 Short-time withstand current resistance 3 x 1s with 120 A
