1001740000 - 5mm PCB Terminal, 6 Poles, 90° Angle, 3.2mm Pin Length (Pack of 60)

1001740000 - 5mm PCB Terminal, 6 Poles, 90° Angle, 3.2mm Pin Length (Pack of 60)

SKU: SKU: 1001740000   Download PDF

Select a Variant:
  • 1001740000 - 5mm PCB Terminal, 6 Poles, 90° Angle, 3.2mm Pin Length (Pack of 60)
Qty:
Regular price Now $172.21   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $172.21 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

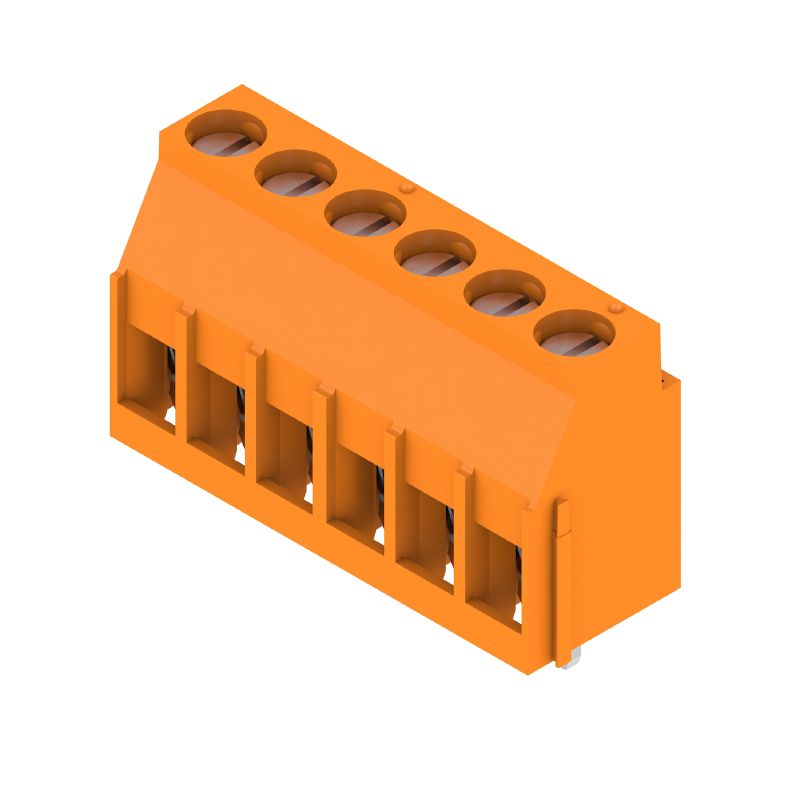

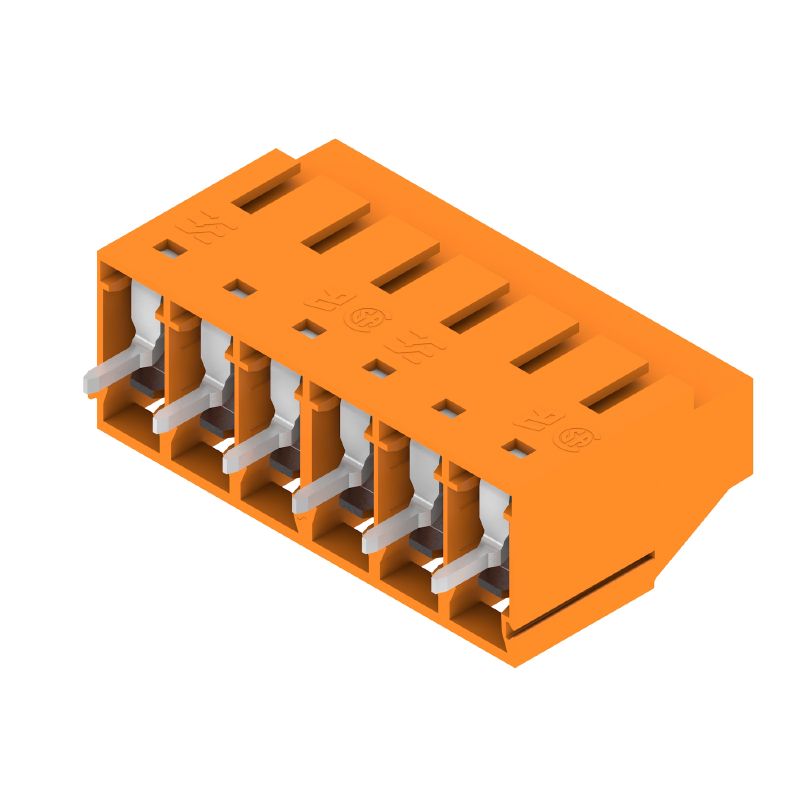

Introducing the LL 500/06/90 32SN OR BX, an exceptional choice for printed circuit board terminals This component boasts a 500 mm size and supports 6 poles positioned at a 90° angle It features a solder pin length of 32 mm, finished with a durable tinned coating in a striking orange color With its clamping yoke connection, it accommodates a maximum clamping range of 6 mm², ensuring reliable and efficient performance for your electronic projects.

Features and Benefits:

    •RoHS compliant without exemptions.

    •Clamping yoke connection for secure wiring.

    •Touch-safe protection according to DIN VDE standards.

Specifications:

 UL File Number E60693

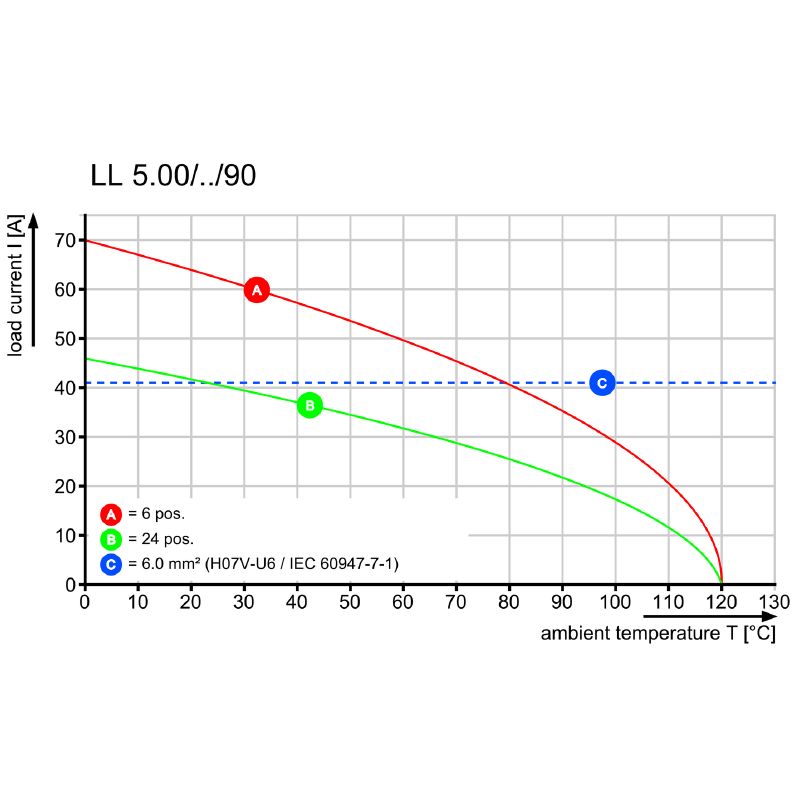

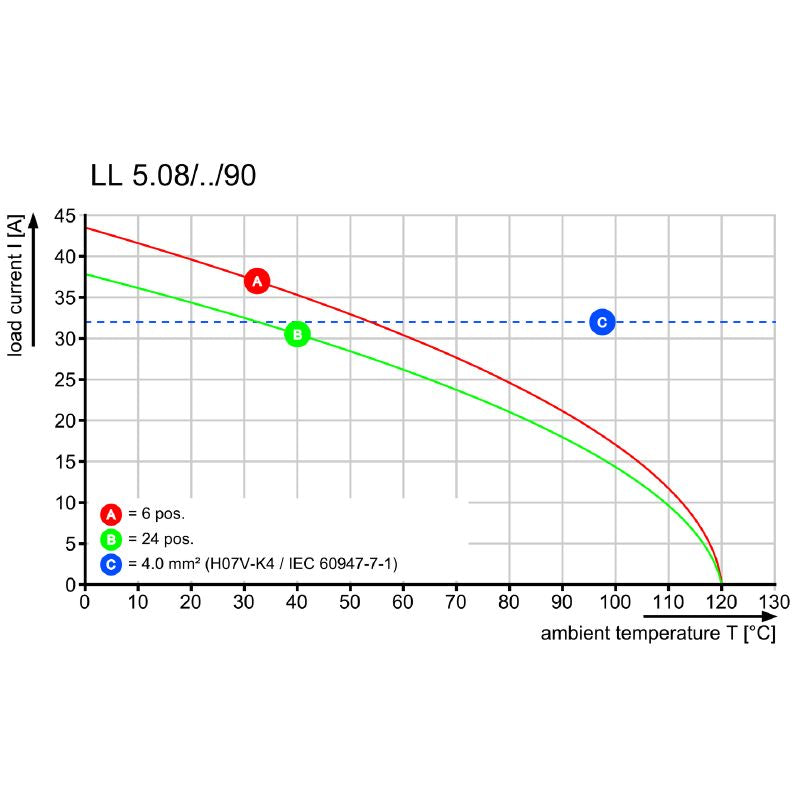

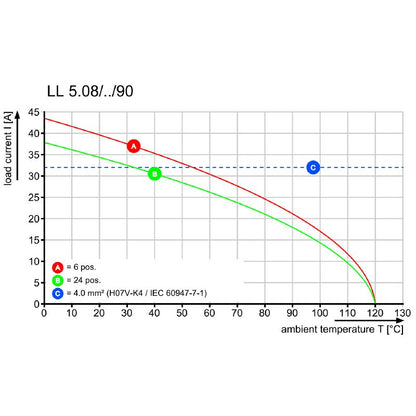

 Rated voltage (IEC) 500 V / 32.5 A / 0.5 - 6 mm²
 Rated voltage (UL) 300 V / 20 A / AWG 26 - AWG 12

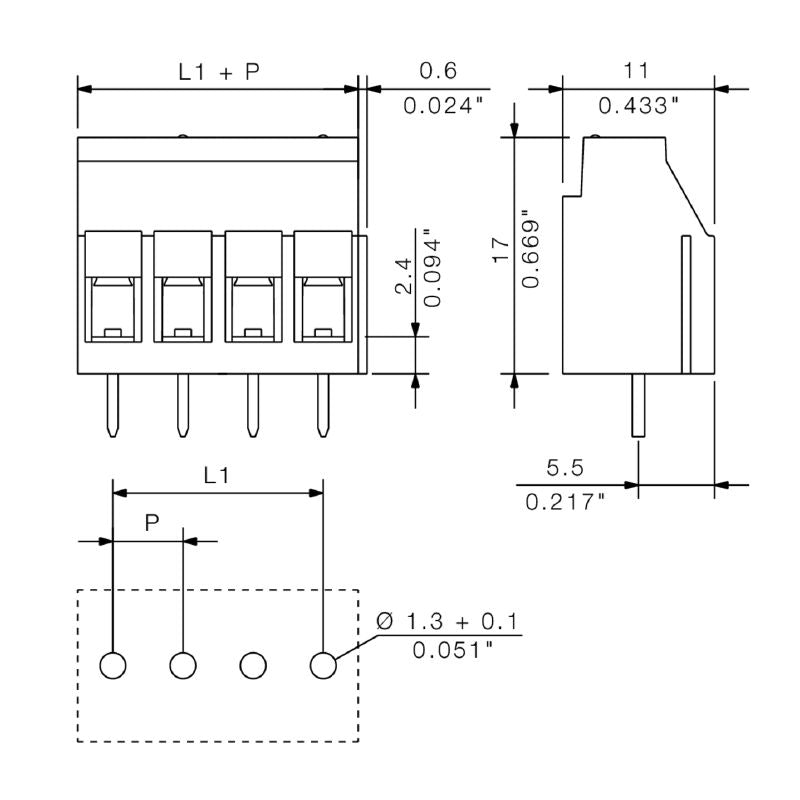

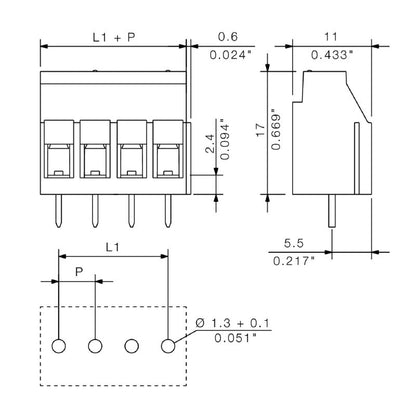

 Dimensions {'Depth': '11 mm', 'Height': '20.3 mm', 'Width': '30.65 mm'}
 Tightening Torque {'Minimum': '0.5 Nm', 'Maximum': '0.6 Nm'}
 Insulating Material Wemid (PA)
 Storage Temperature {'Minimum': '-40 °C', 'Maximum': '70 °C'}
 Operating Temperature {'Minimum': '-50 °C', 'Maximum': '120 °C'}
 Clamping Range {'Minimum': '0.13 mm²', 'Maximum': '6 mm²'}
 Wire Connection Cross Section {'AWG Minimum': 'AWG 26', 'AWG Maximum': 'AWG 12'}
