K11-200 - 8'' VEVOR 3-Jaw Self-Centering Lathe Chuck for Precision Tasks
K11-200 - 8'' VEVOR 3-Jaw Self-Centering Lathe Chuck for Precision Tasks
SKU: SKU: K11-200 Download PDF
- K11-200 - 8'' VEVOR 3-Jaw Self-Centering Lathe Chuck for Precision Tasks
- K11-200 - 8'' VEVOR 3-Jaw Self-Centering Lathe Chuck for Precision Tasks
Couldn't load pickup availability
Description:
Introducing the VEVOR 3-jaw lathe chuck, engineered for precision and efficiency with its innovative self-centering design, making setup quick and effortless Built from durable HT300 material, this chuck guarantees stability, ideal for rigorous machining applications It offers a versatile clamping range of 0157 to 3346 inches, easily accommodating various workpieces The flexible gripping mechanism allows for different materials, significantly reducing preparation time for your projects.
Whether you’re a hobbyist or a professional, this lathe chuck is an essential tool for achieving accurate machining results.
Features and Benefits:
•Constructed from high-strength HT300 material.
•Dual-use jaws for internal and external clamping.

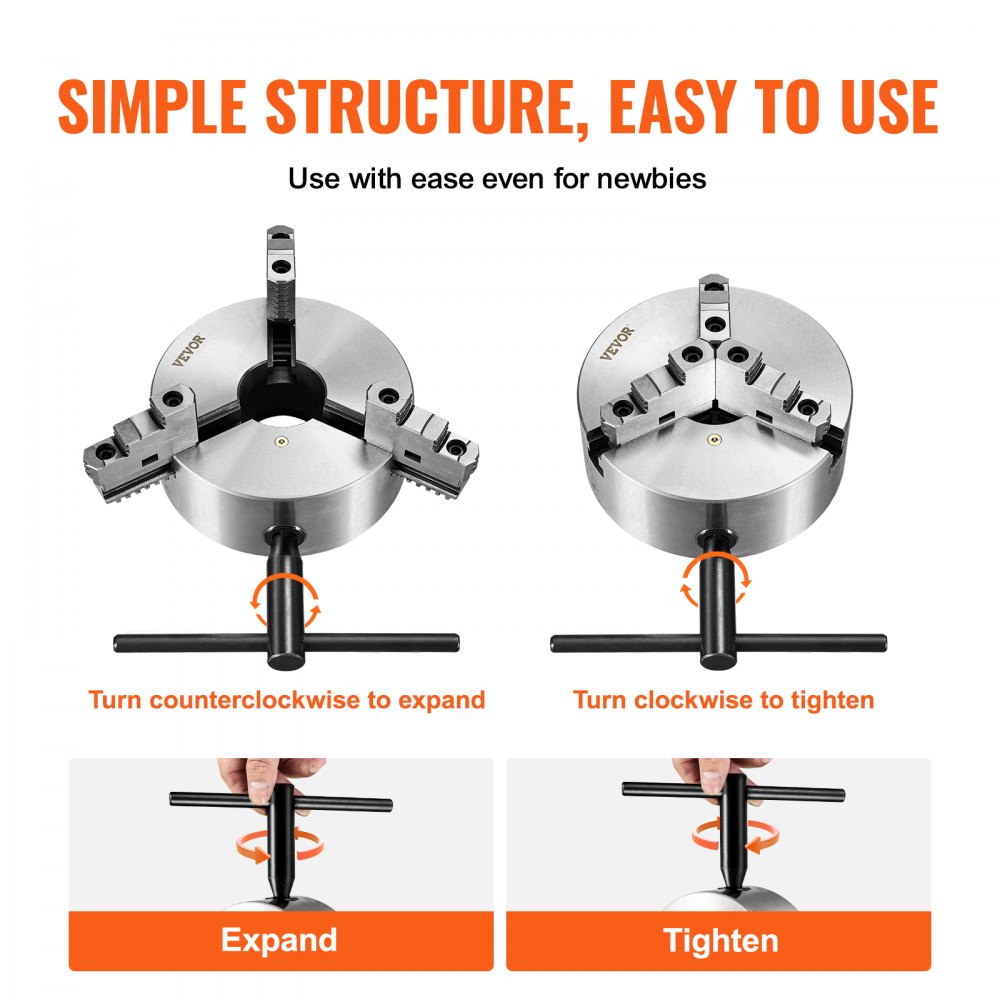

•Self-centering for efficient and precise setups.

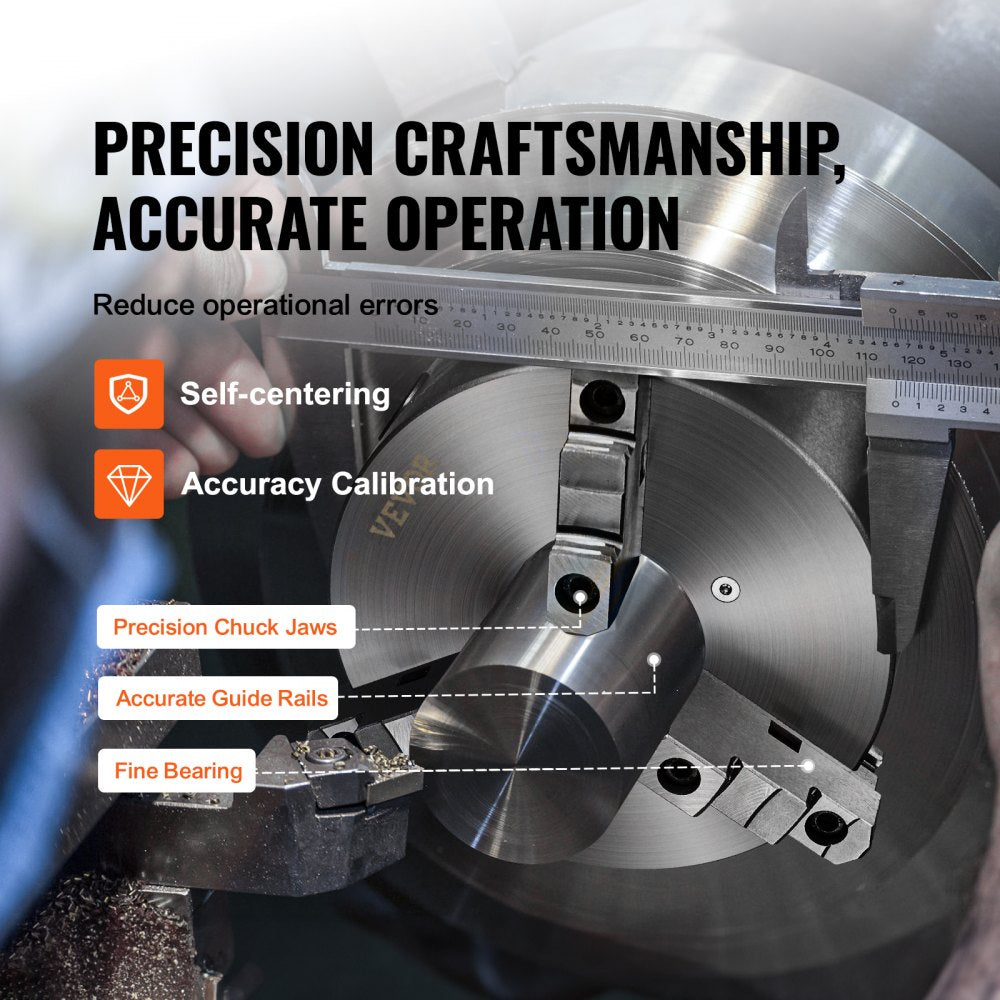

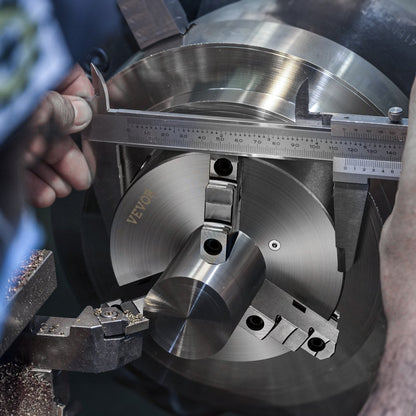

•High precision with bearing tolerance of ≤ 0.05 mm / 0.002 in.

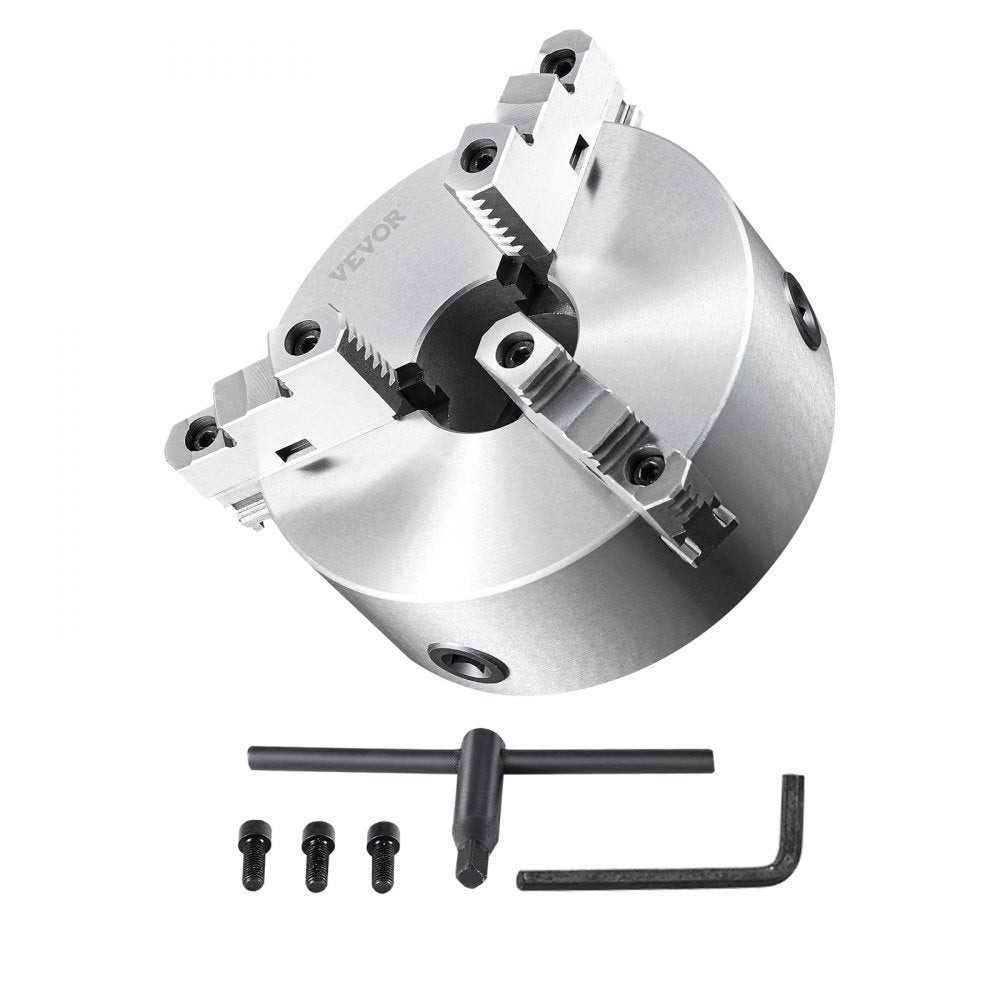

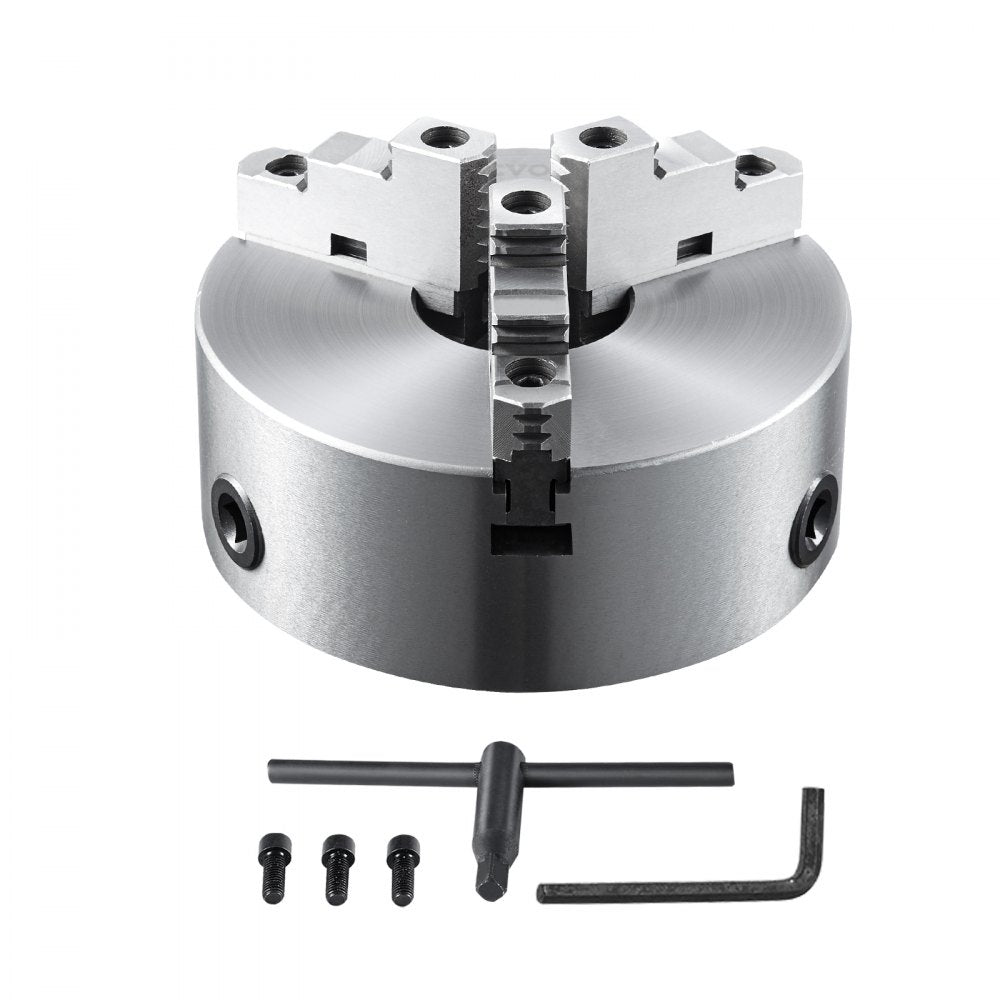

•Easy installation and maintenance with T-key fixing screws.
•Versatile for use with various lathes, improving machining efficiency.
•Machining centers.
•3D printers.
•Metalworking.
•Drilling.
•Milling.
Specifications:
| Item Model Number | K11-200 |
| Chuck O.D | 8 in / 200 ± 5 mm |

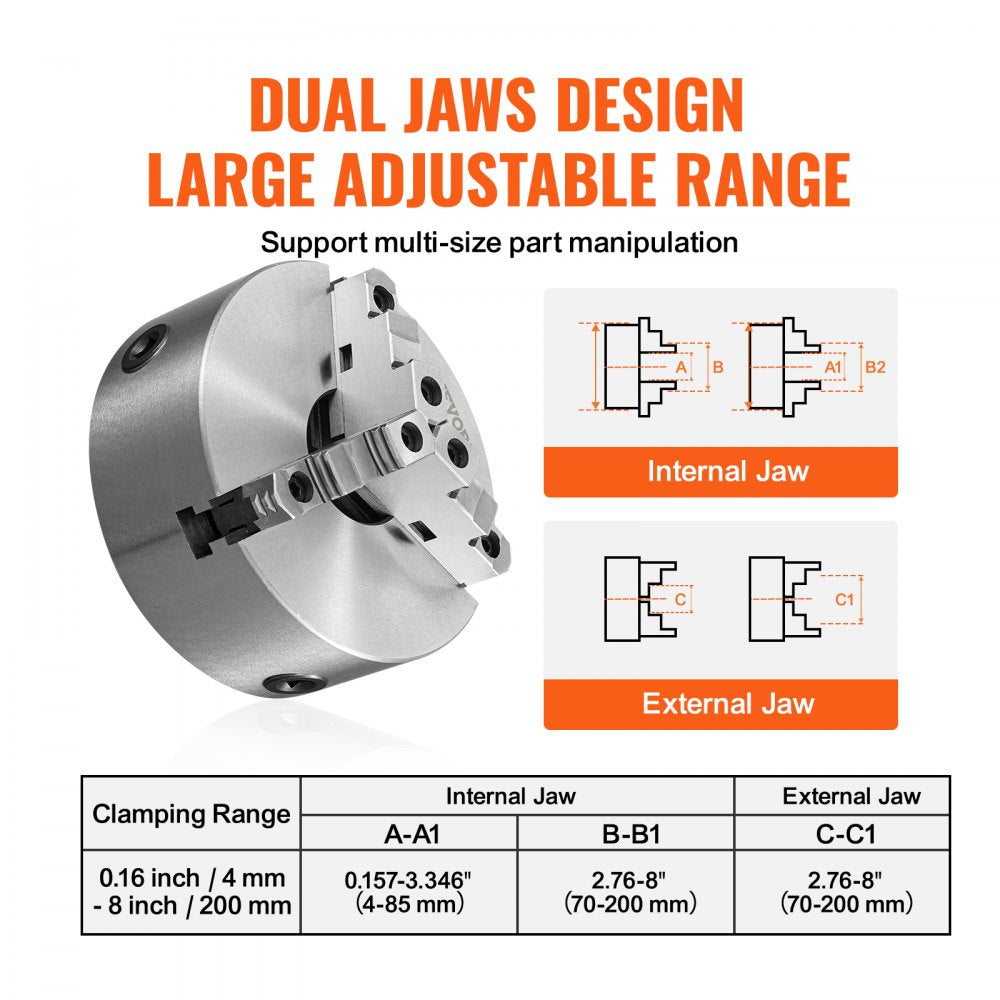

| Clamping Range | 0.157-3.346"/4-85 mm |
| External Jaw Clamping Range | 2.76-8"/70-200 mm |
| Fixed Thread | 3-M10 |
| Bore | φ65 mm |
| Surface Treatment | |
| Main Material | HT300 |
| Net Weight | 27.1 lb / 12.3 kg |
| Product Size | φ200 x 160 mm |

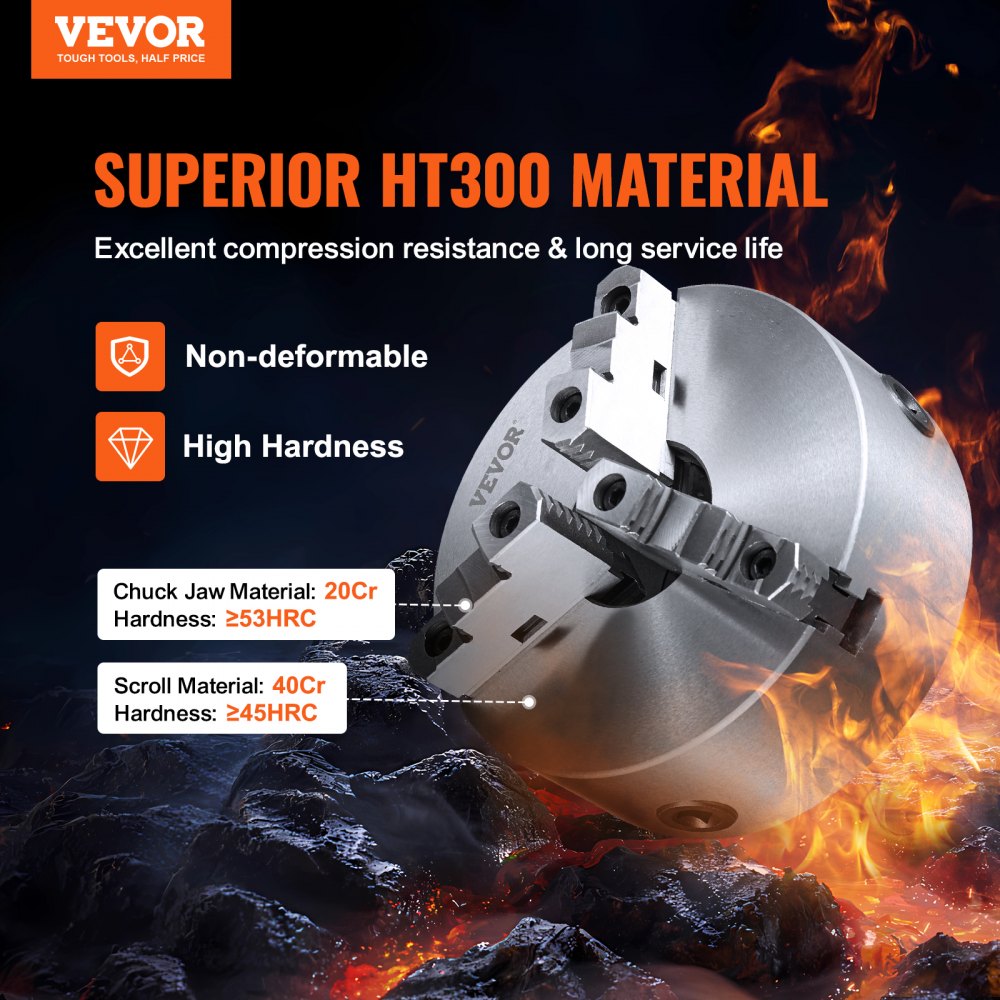

| Jaw | 3-Jaw, 20Cr, ≥53HRC |
| Scroll | 40Cr, ≥45HRC |
