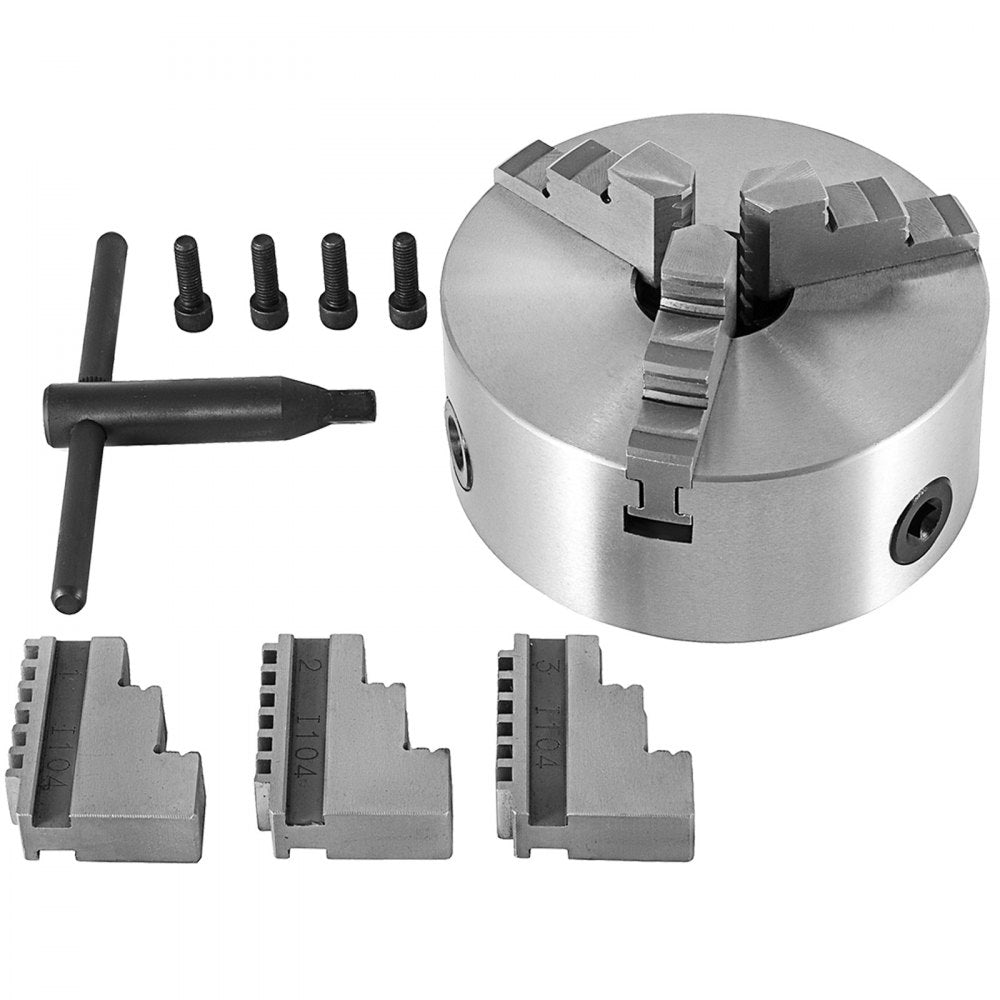

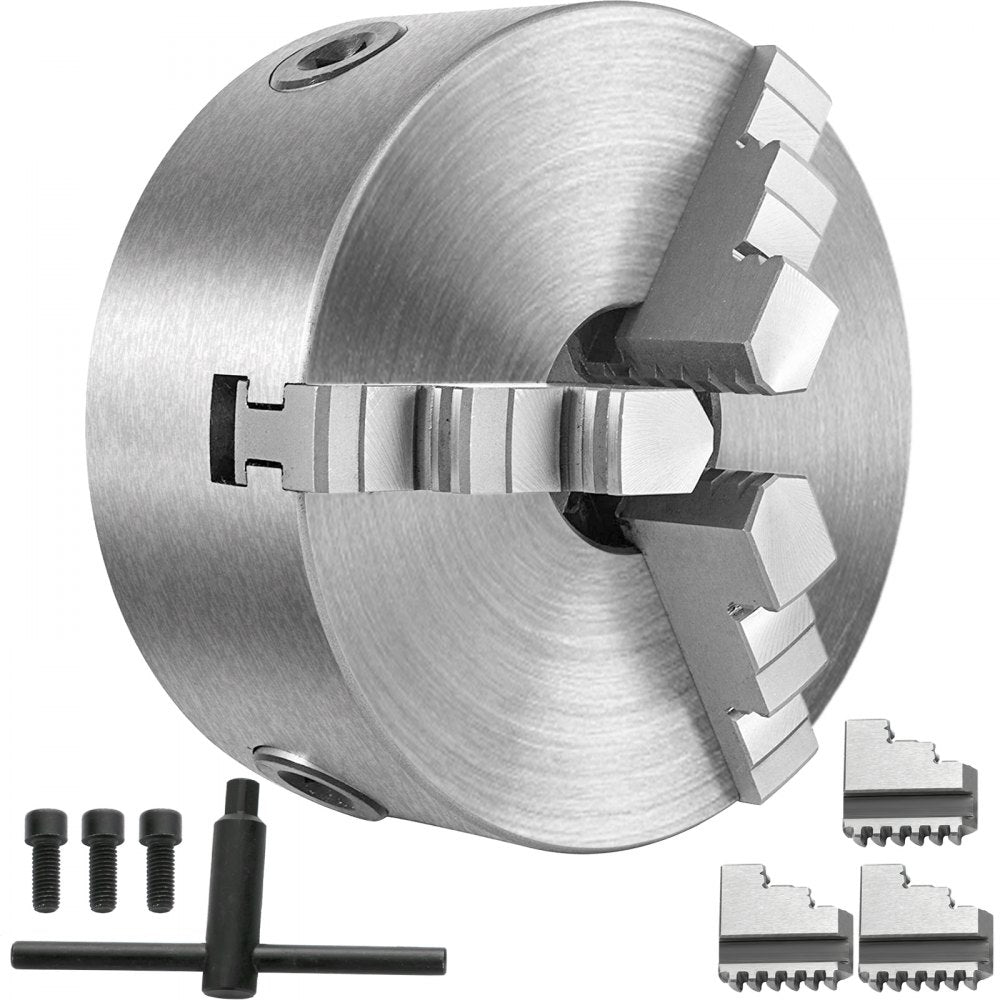

K11-160 - 6.3" Self-Centering 3-Jaw Lathe Chuck for Precision Grinding

K11-160 - 6.3" Self-Centering 3-Jaw Lathe Chuck for Precision Grinding

SKU: SKU: K11-160

Select a Variant:
  • K11-160 - 6.3" Self-Centering 3-Jaw Lathe Chuck for Precision Grinding
Qty:
Regular price Now $78.20   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $78.20 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the VEVOR K11-160 Lathe Chuck, a robust 63-inch self-centering 3-jaw chuck crafted for precision in grinding and milling applications Constructed from premium hardened steel, this chuck offers exceptional resistance to compression along with an extended lifespan It is equipped with two sets of jaws that can securely grip various industrial components ranging from 012" to 63" With its self-centering feature, it significantly reduces the need for repeated adjustments during setup.

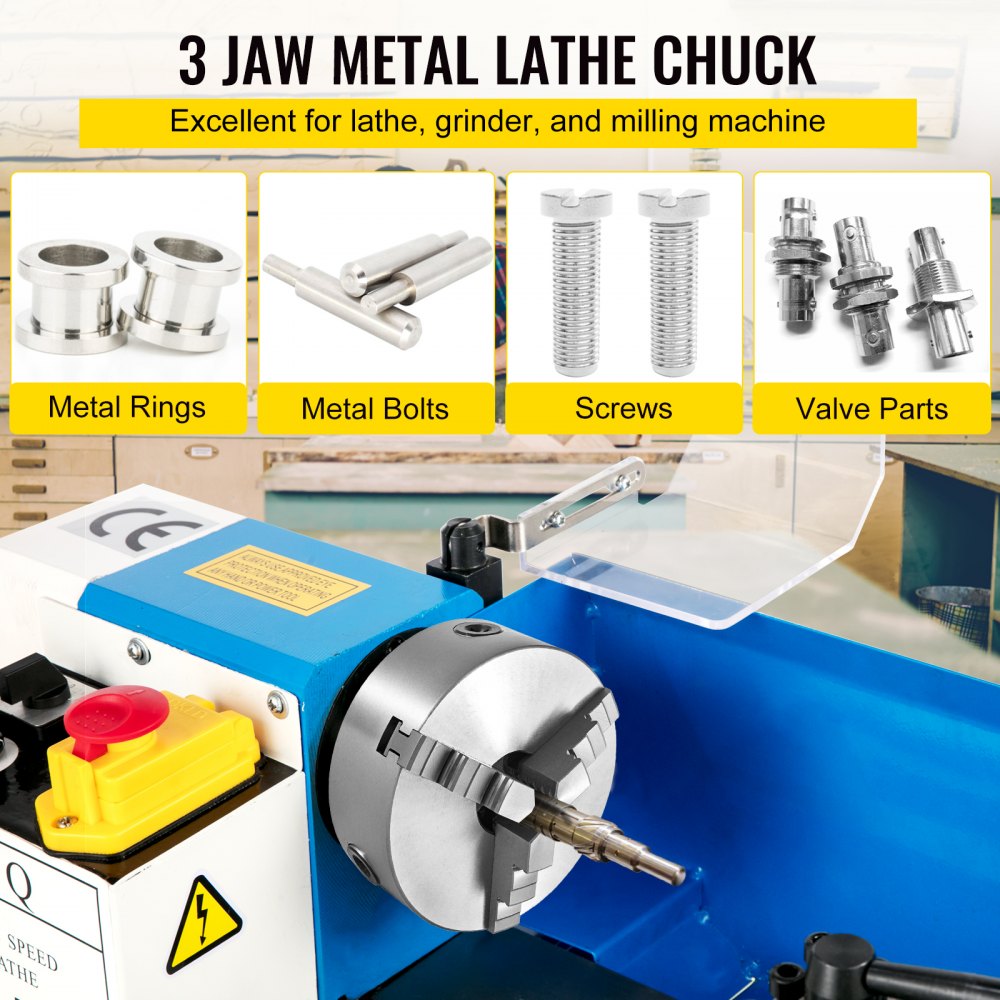

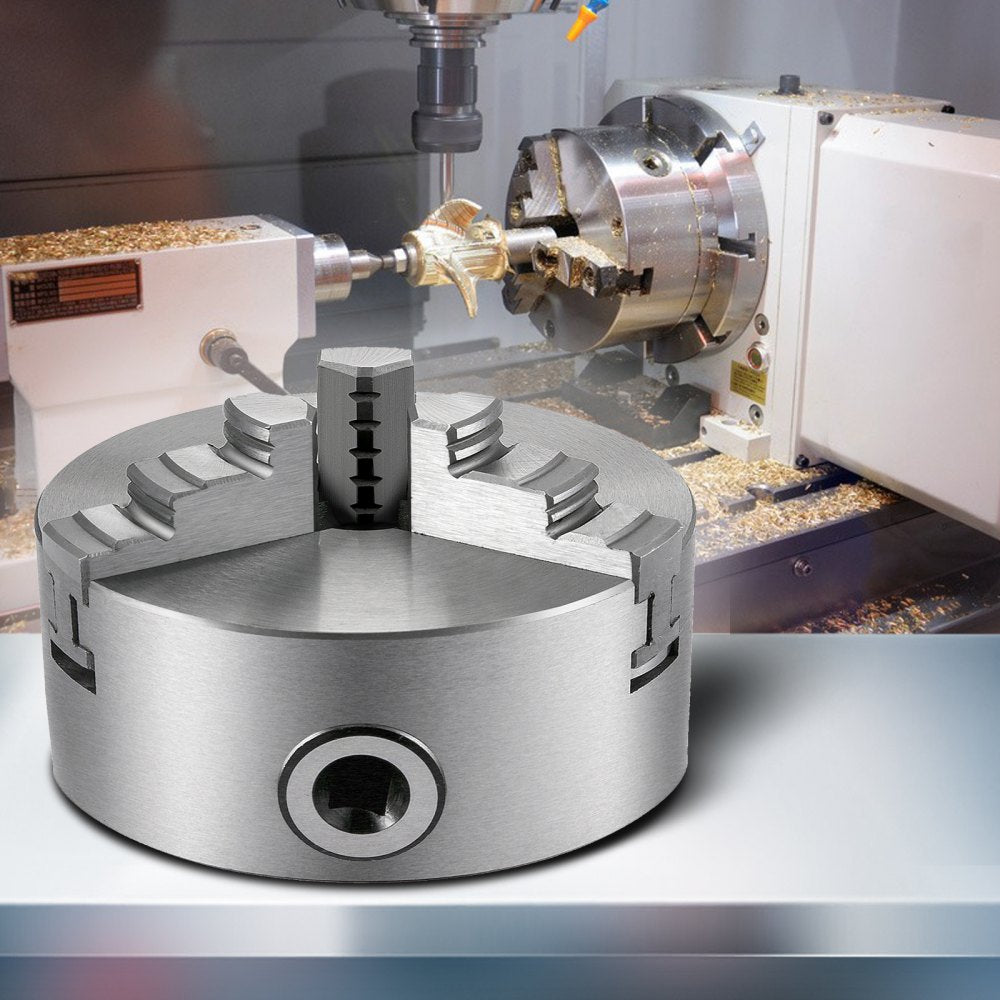

This lathe chuck is easy to install and operates seamlessly, making it an excellent choice for a variety of general-purpose and CNC lathes, as well as grinding, milling, and drilling machines.

Features and Benefits:

    •High-quality hardened steel construction enhances durability.

    •Self-centering feature simplifies alignment for quick setup.

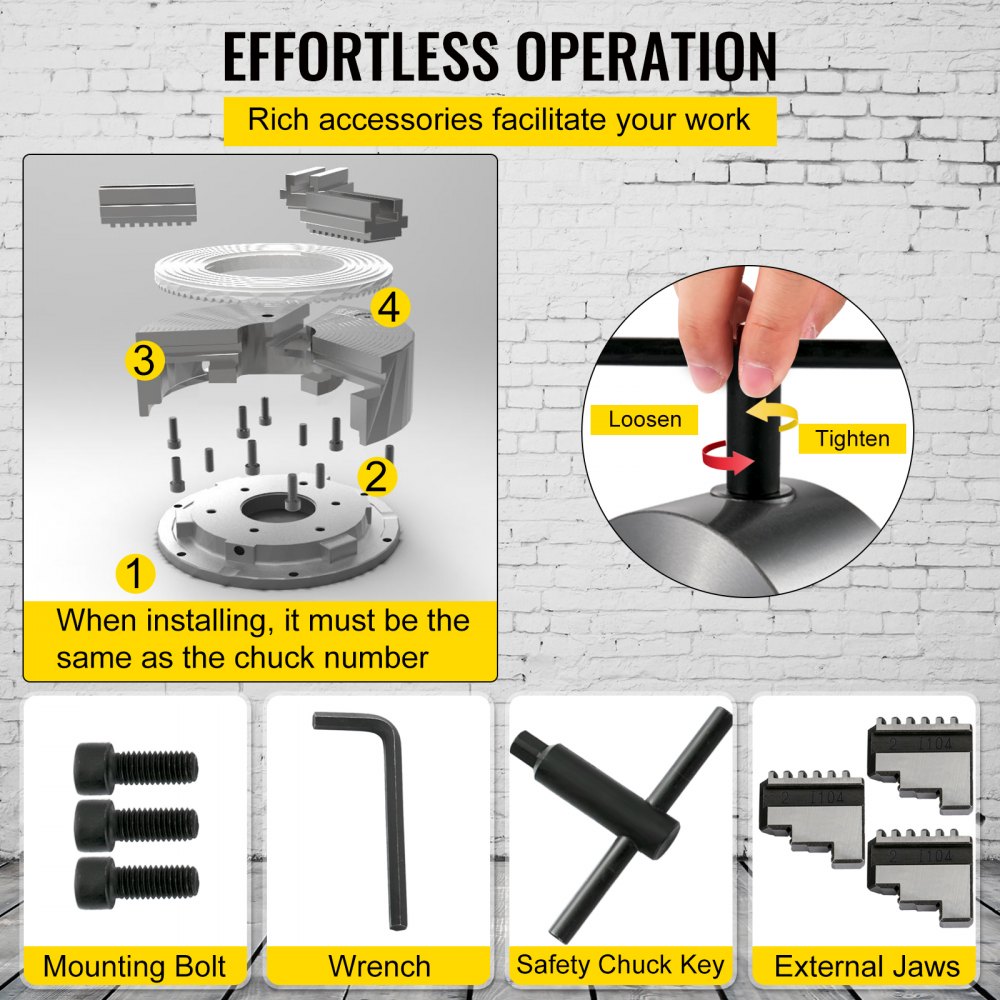

    •Includes two sets of jaws for a wide clamping range.

    •Fast clamping speed due to automatic centering.

    •High adaptability for various types of machining projects.

    •General-purpose lathes.

    •Economical CNC lathes.

    •Grinding machines.

    •Milling machines.

    •Drilling machines.

Specifications:

 Material Hardened Steel
 Model K11-160
 Jaw 3 Jaw
 High Precision ≤0.002" / 0.05 mm
 Color Silver

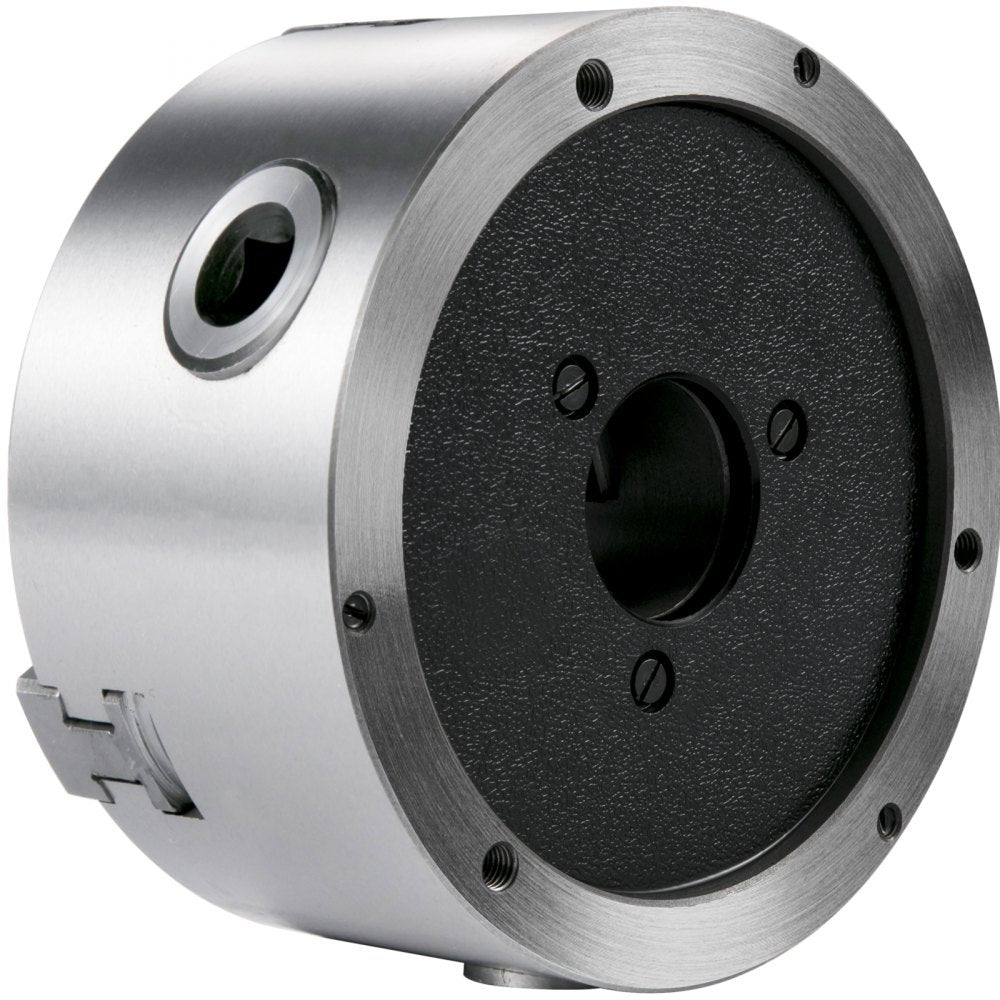

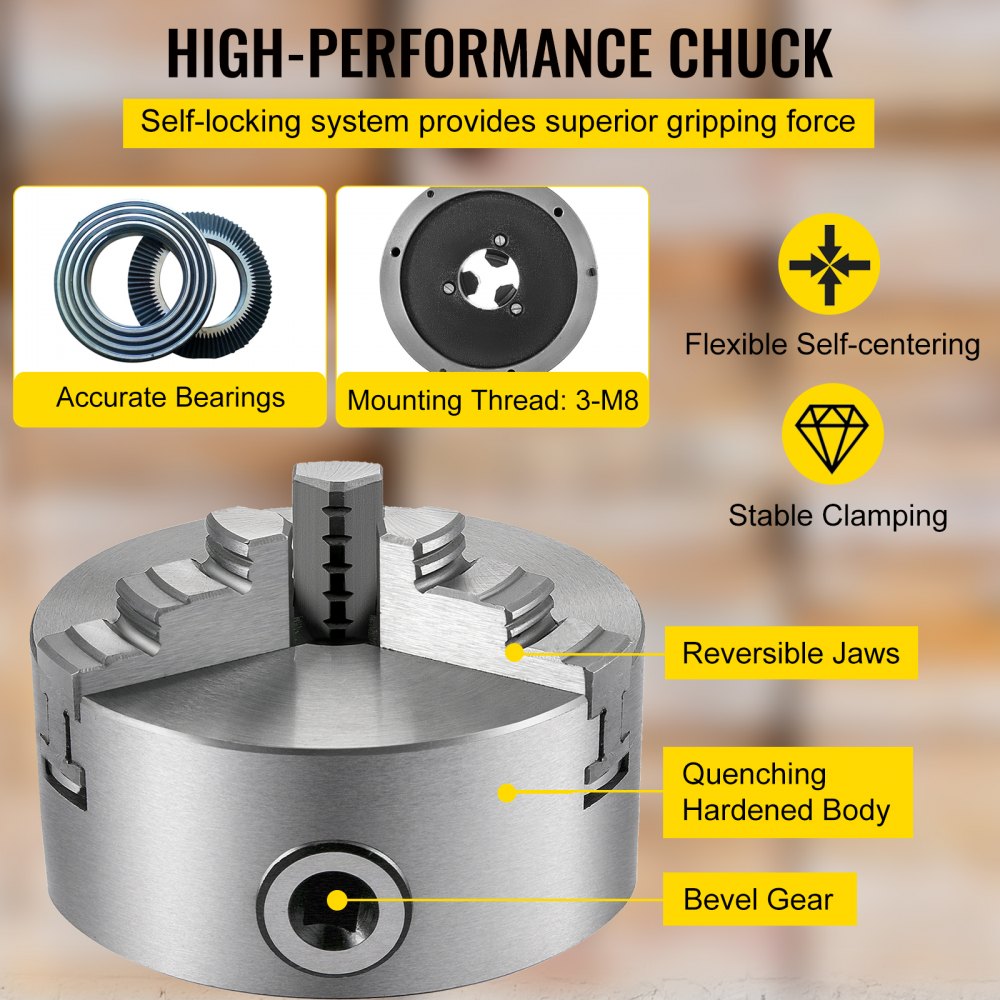

 Mounting Thread 3-M8

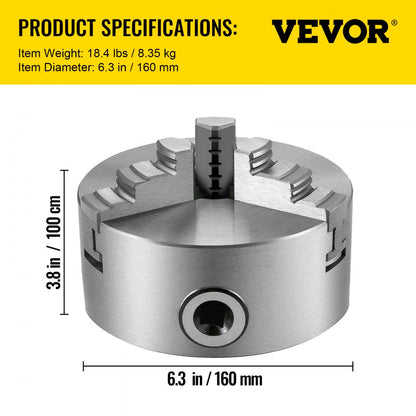

 Size 6.3" / 160 mm
 Outside Diameter 6.3" / 160 mm
 Bolt Circle Diameter 5.59" / 142 mm
 Center Thru Hole Diameter 1.77" / 45 mm
 Chuck Body Thickness 2.56" / 65 mm

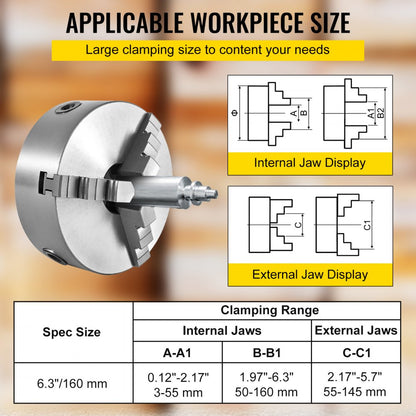

 Internal Jaw Clamping Range (A-A1) 0.12"-2.17" / 3-55 mm
 Internal Jaw Jamming Range (B-B1) 1.97"-6.3" / 50-160 mm
 External Jaw Clamping Range (C-C1) 2.17"-5.7" / 55-145 mm
 Accuracy 0.002" / 0.051 mm
 Package Dimensions (L x W x H) 8.3" x 8.3" x 6.7" / 21 x 21 x 17 cm
