Description:

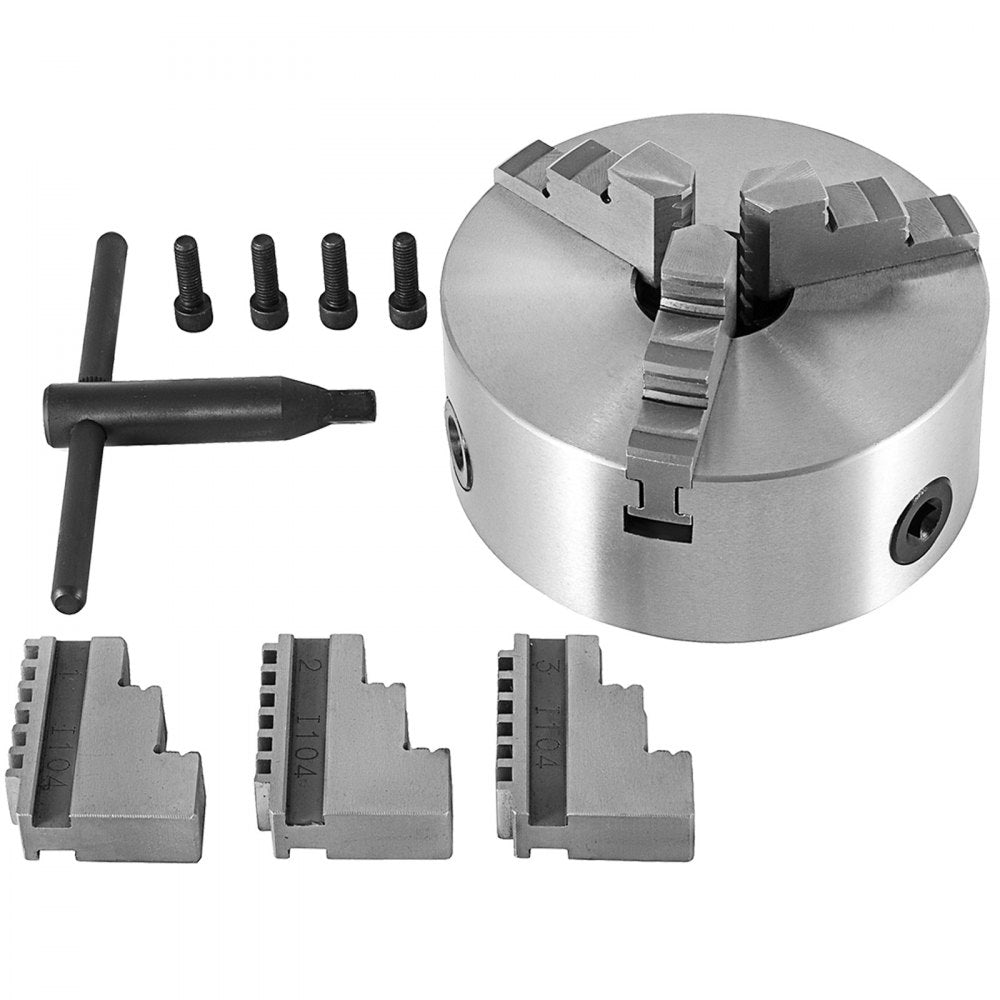

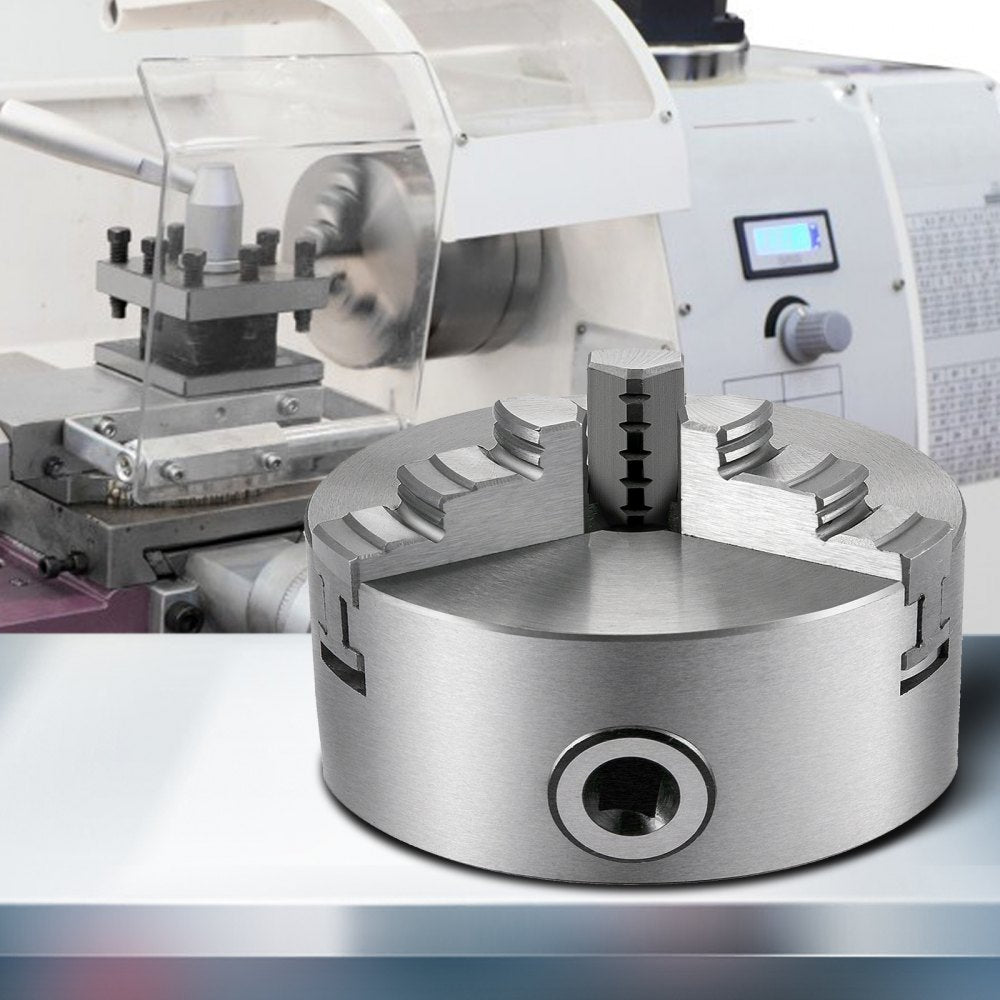

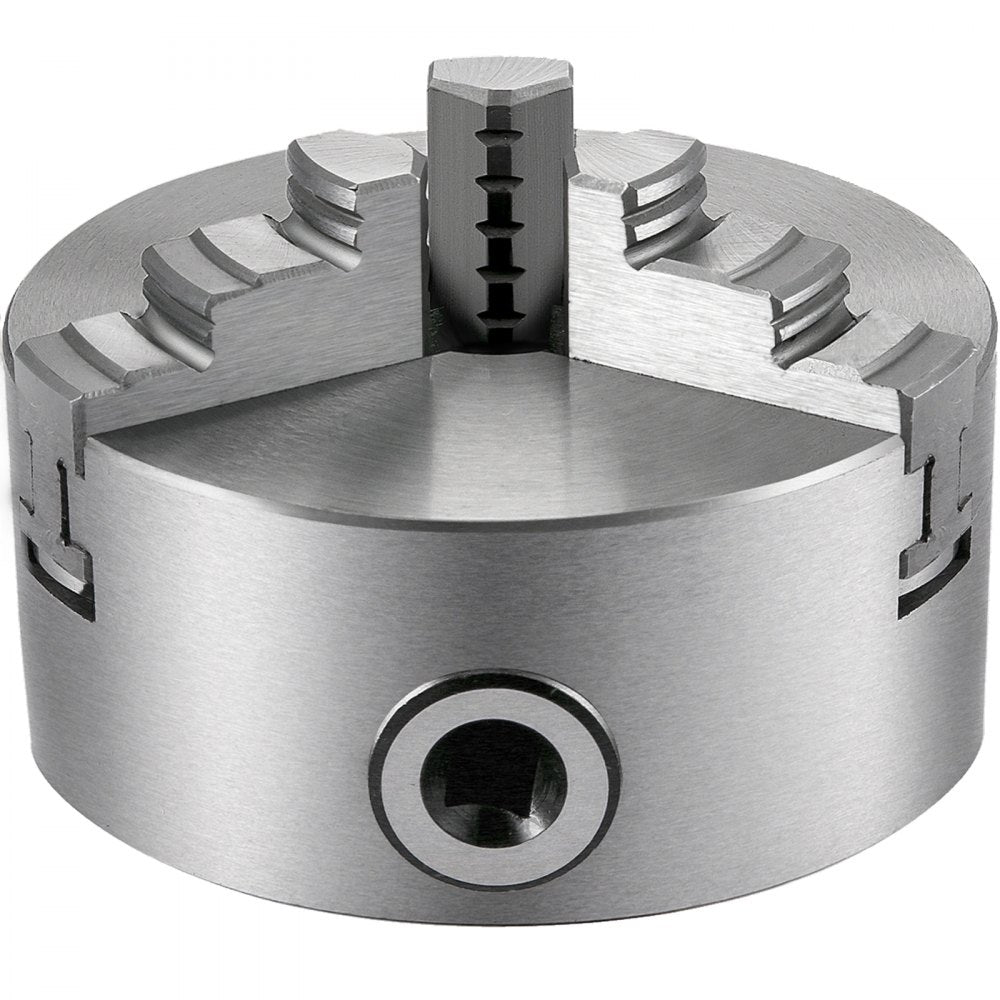

Introducing the K11-125 lathe chuck, a dependable self-centering 3-jaw model crafted from sturdy cast iron with three robust steel jaws designed for heavy-duty performance This lathe chuck offers a wide clamping range and guarantees exceptional accuracy, ensuring a tight grip on various materials with the simple use of a T handle With a minimal runout measure of just 0002 inches, it’s perfectly suited for grinding and milling applications.

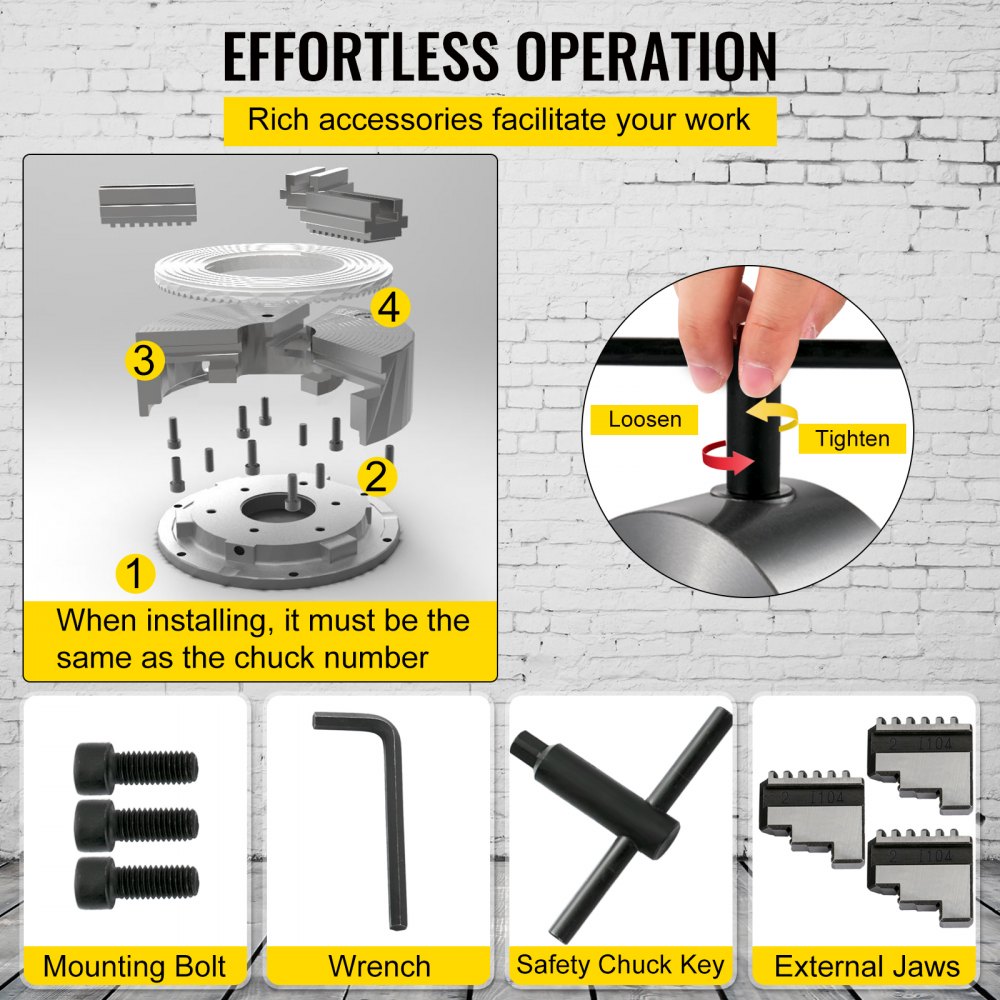

Built for longevity, this chuck also allows for straightforward installation and adjustment, making it a reliable choice for any workspace.
Features and Benefits:
•Wide clamping range for diverse material handling.
•Easy adjustment with an ergonomic T chuck key.
•Compact design for efficient use in workshops.
•Cost-effective solution providing high value.
•Versatile for various lathe models.
•Ideal for use with lathe machines.

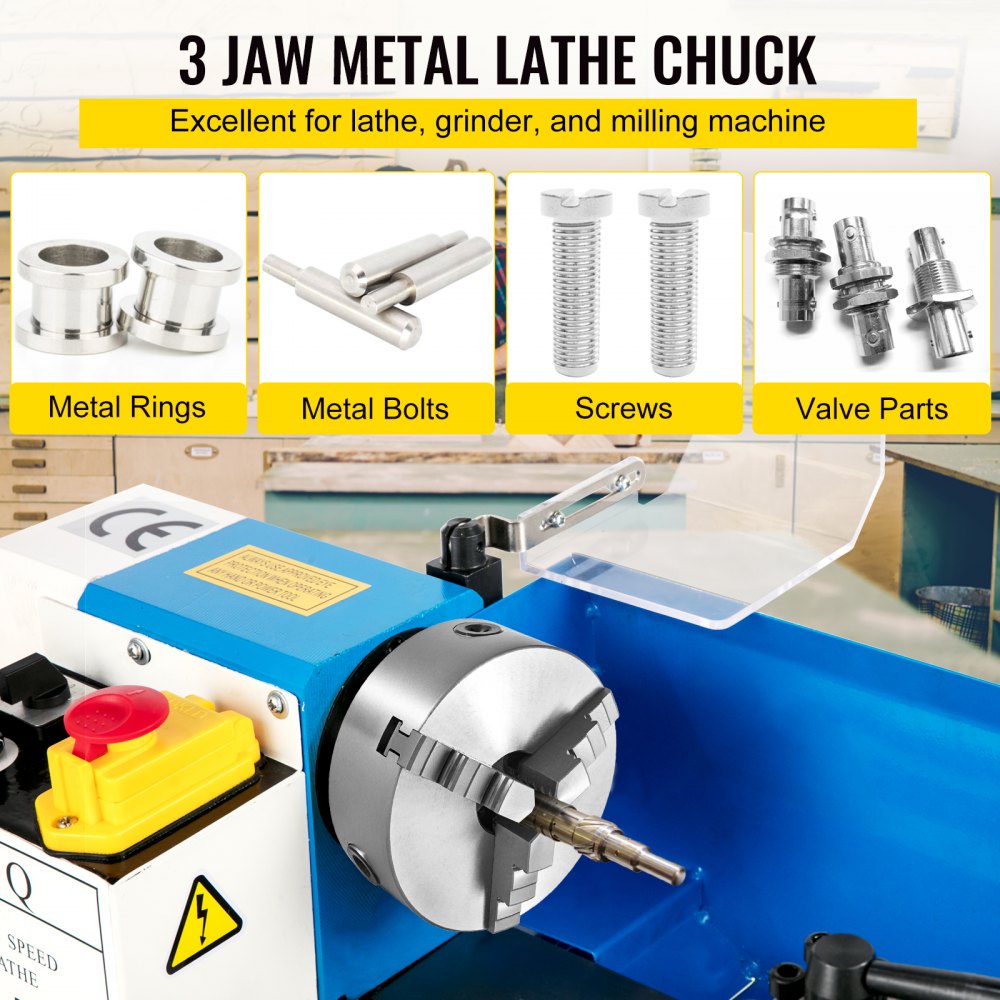

•Applicable for grinding and milling tasks.
Specifications:
| Chuck Body Material | Cast Iron |
| Jaws Material | 40CR Steel |

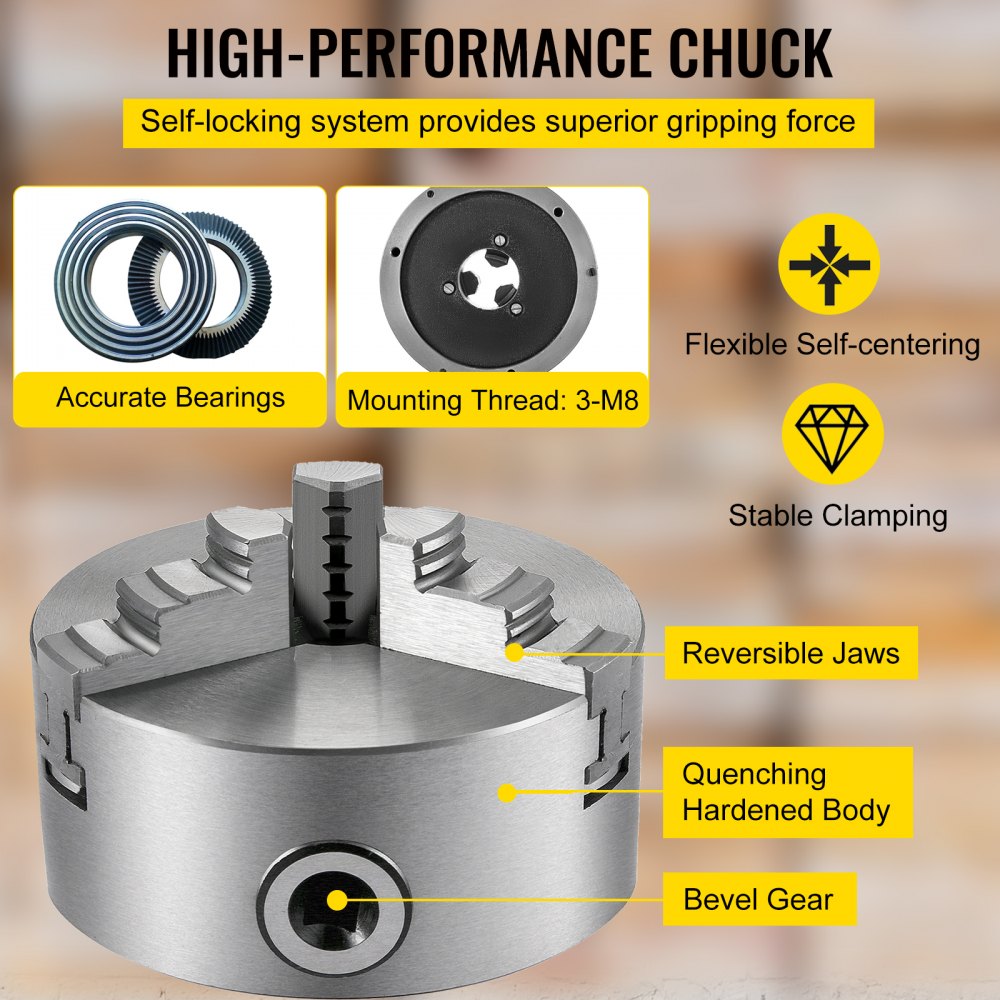

| Bevel Gear Material | 40CR Steel |
| Pinions Material | 20CR Steel |

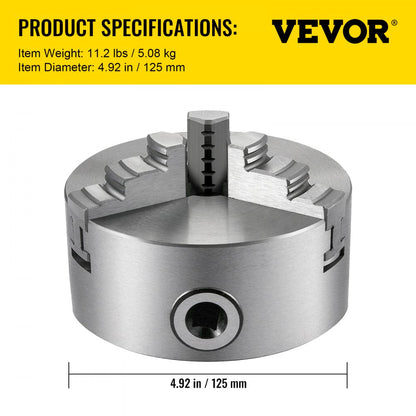

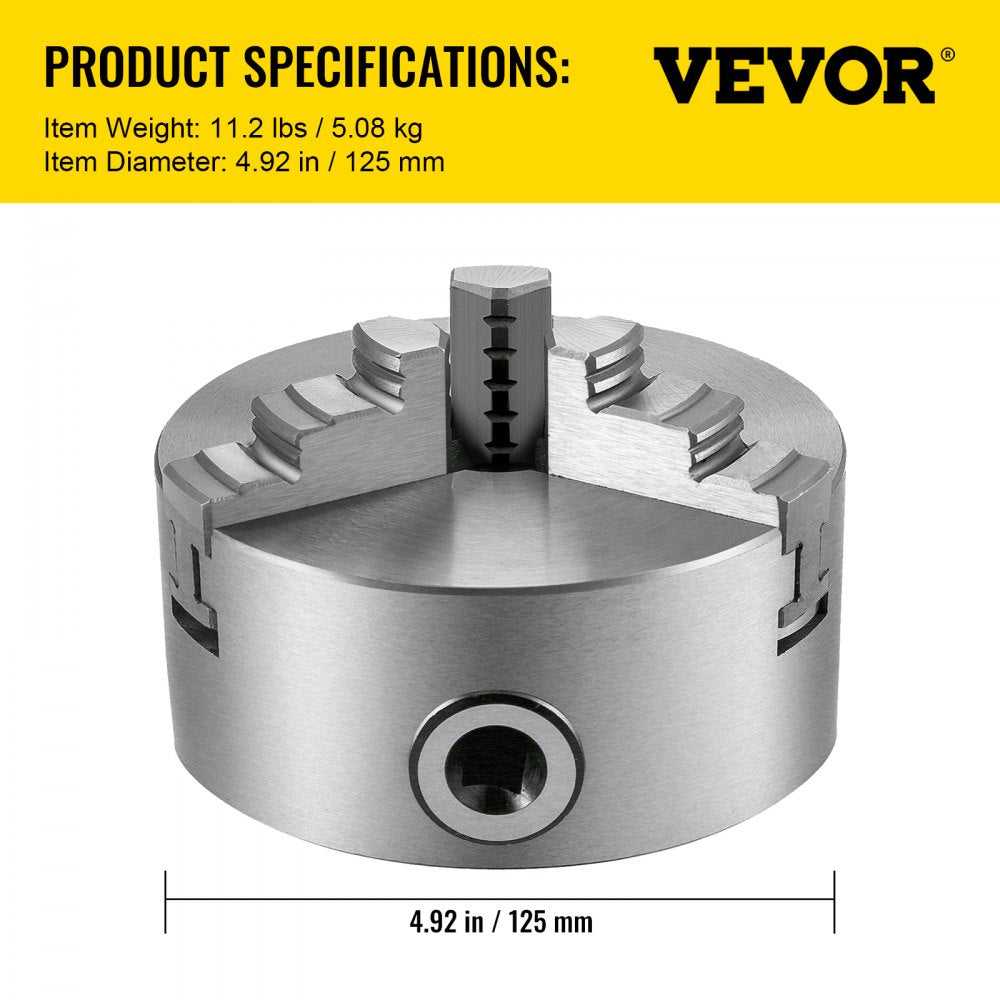

| Item Diameter | 4.92" / 125 mm |
| Bolt Circle Diameter | 4.25" / 108 mm |
| Center Hole Diameter | 1.18" / 30 mm |

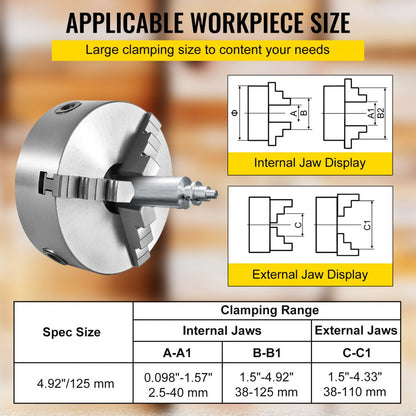

| Internal Jaw Clamping Range | 0.098"-1.57" / 2.5-40 mm |
| Internal Jaw Jamming Range | 1.5"-4.92" / 38-125 mm |
| External Jaw Clamping Range | 1.5"-4.33" / 38-110 mm |
| Chuck Body Thickness | 2.28" / 58 mm |

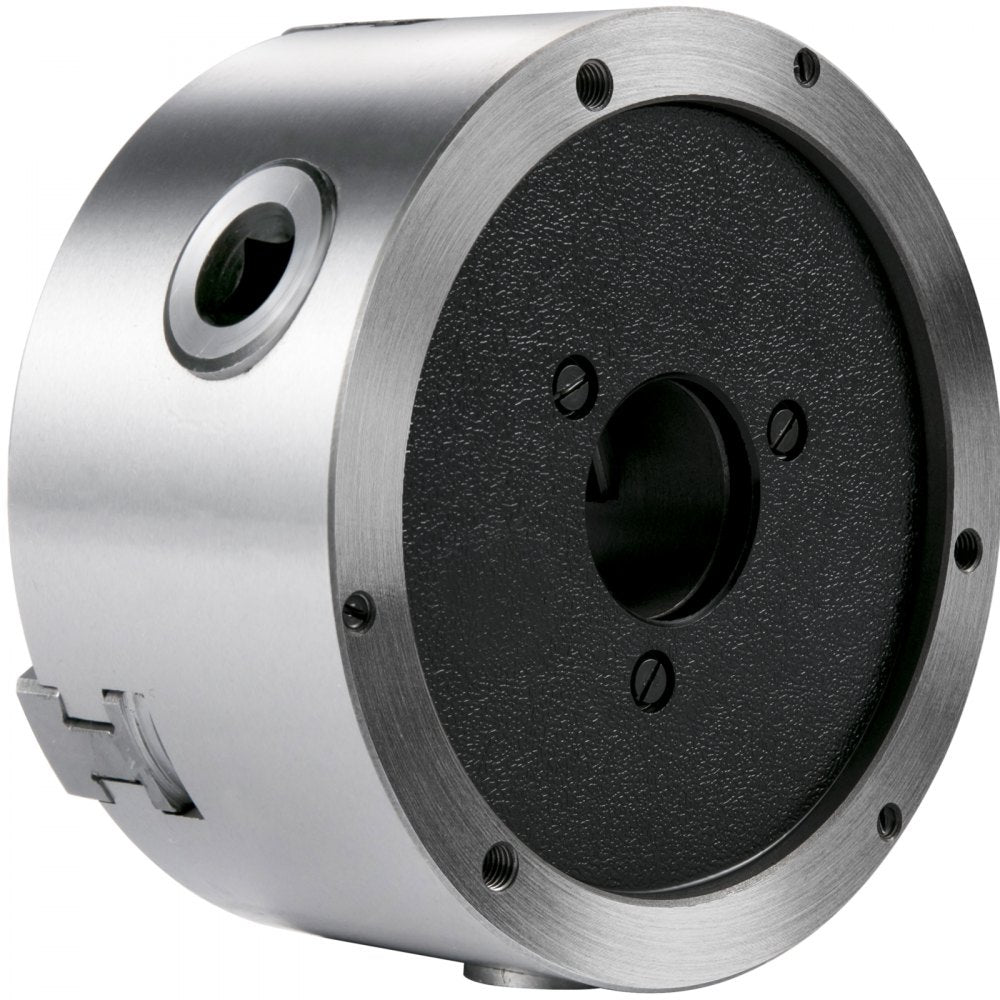

| Mounting Thread | 3-M8 |
| Package Dimensions | 6.3" x 6.3" x 5.9" / 16 x 16 x 15 cm |
