K11-250 - 10" VEVOR 3-Jaw Lathe Chuck, 0.24-9.84" Clamping Range

K11-250 - 10" VEVOR 3-Jaw Lathe Chuck, 0.24-9.84" Clamping Range

SKU: SKU: K11-250 Download PDF

Variant:
  • K11-250 - 10" VEVOR 3-Jaw Lathe Chuck, 0.24-9.84" Clamping Range
Regular price Now $175.85
Regular price BEFORE   $0.00 Sale price Now $175.85
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

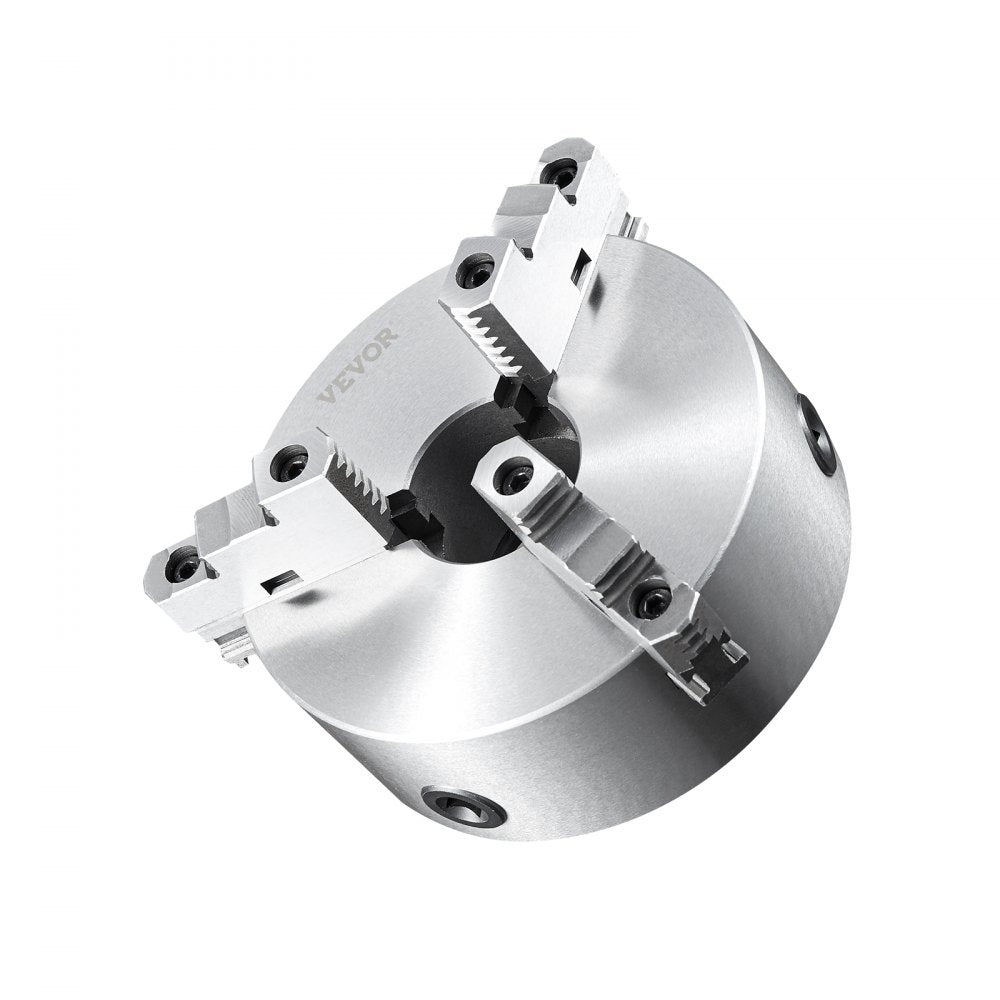

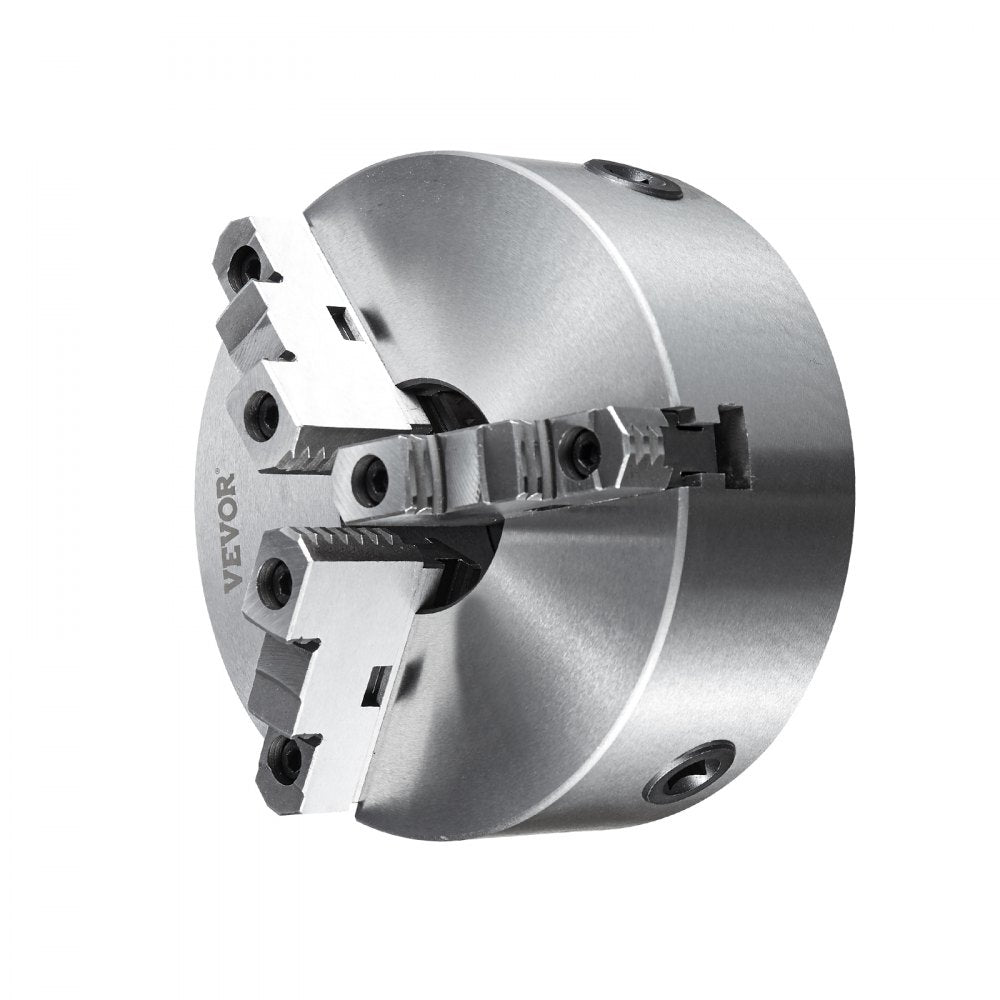

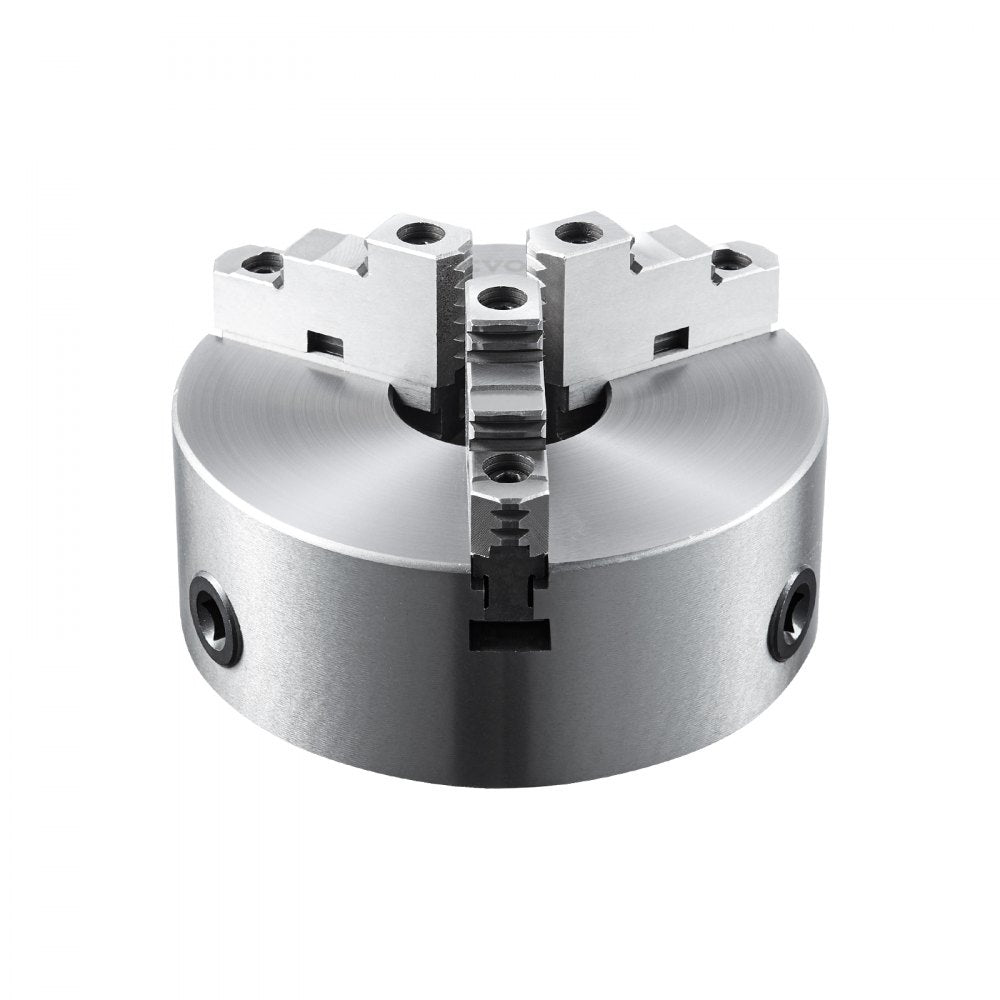

Introducing the VEVOR 3-jaw lathe chuck, a robust tool measuring 10 inches that accommodates a clamping range between 024 to 984 inches (6-250 mm) Equipped with T-key fixing screws and a hex wrench, installation is a breeze This chuck boasts self-centering capabilities for impeccable precision when securing workpieces Made from durable HT300 material, it promises resilience and longevity, making it ideal for a variety of tasks.

Designed to maintain stability under heavy loads, it delivers accurate machining results while simplifying both setup and maintenance processes Its sturdy construction is well-suited for demanding applications, whether light or heavy-duty This versatile chuck is compatible with lathes, 3D printers, and machining centers, proving to be excellent for woodworking, metalworking, and plastic applications alike.

Features and Benefits:

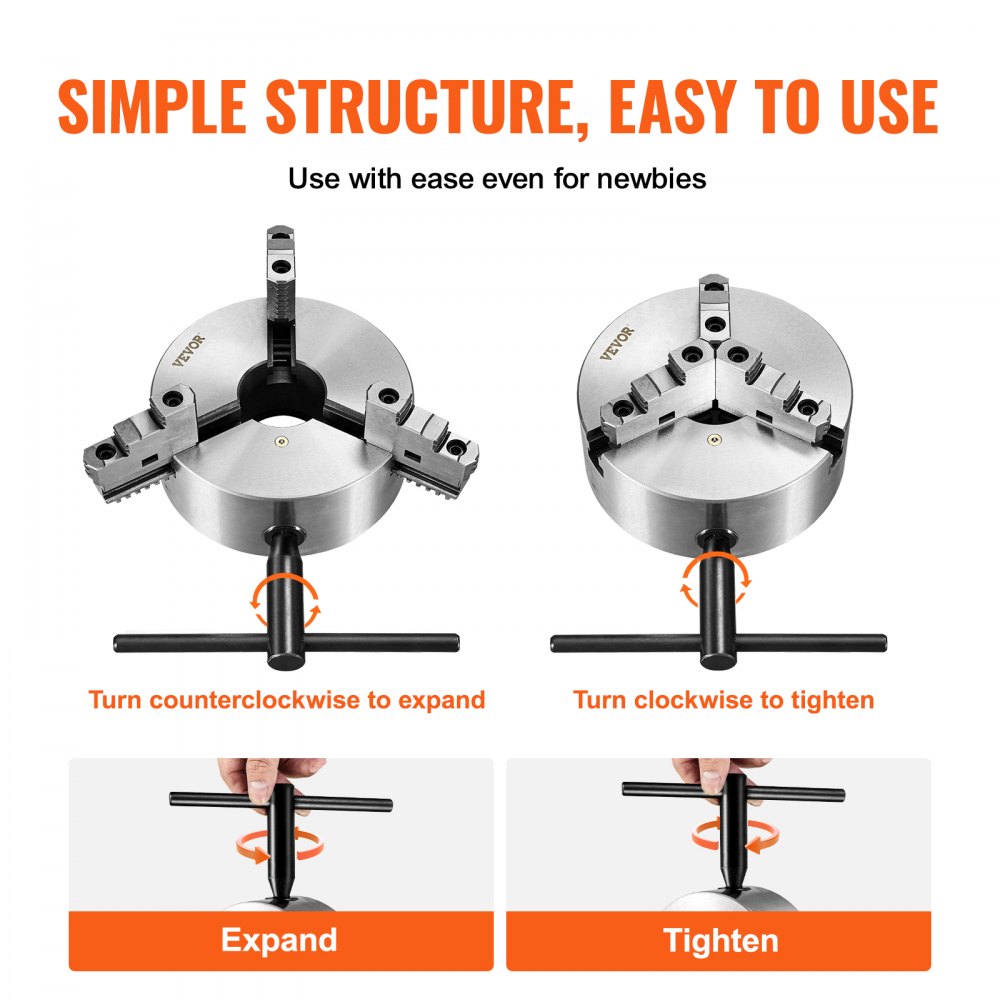

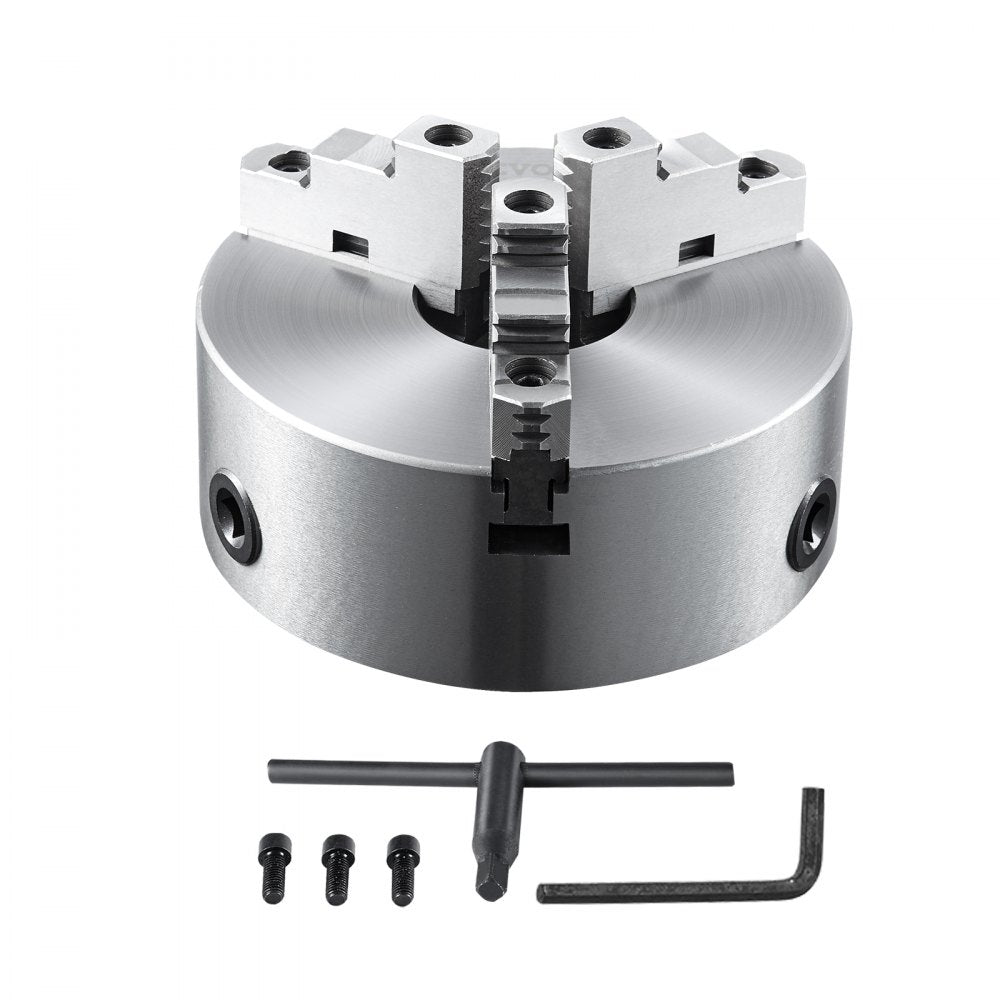

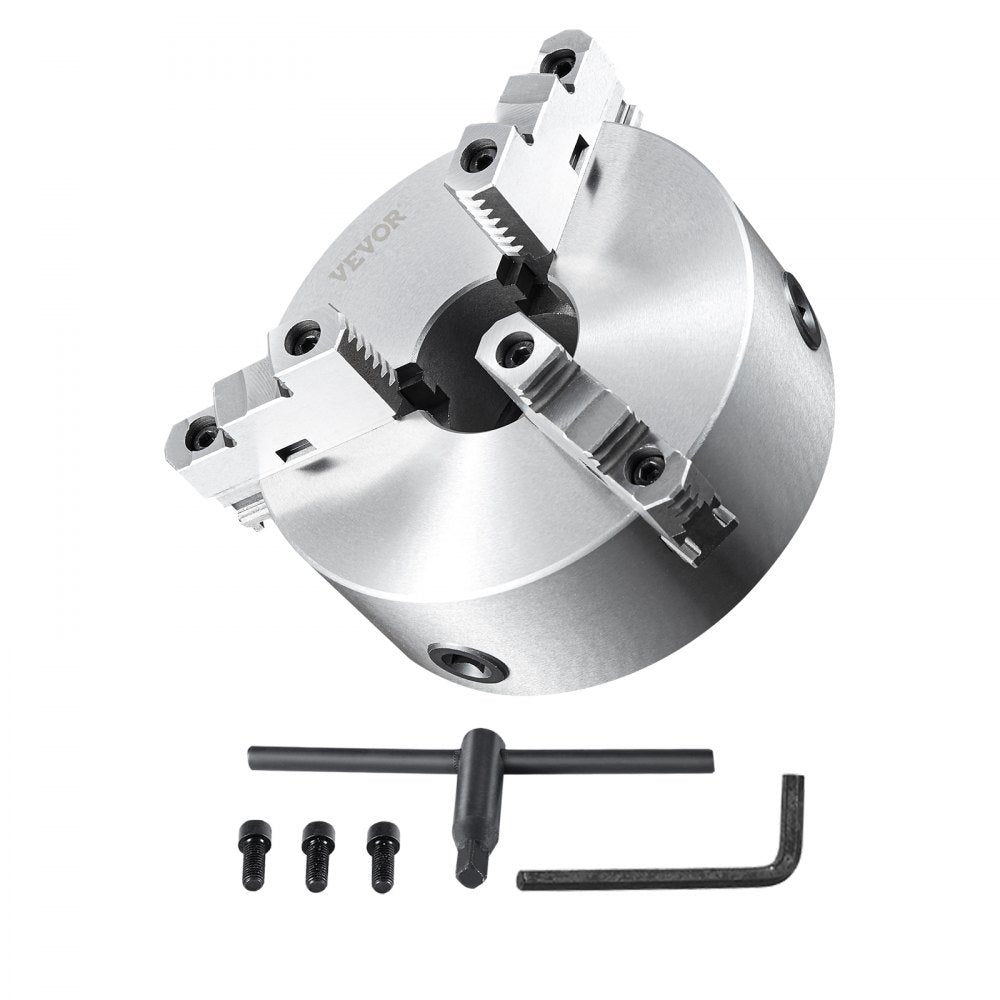

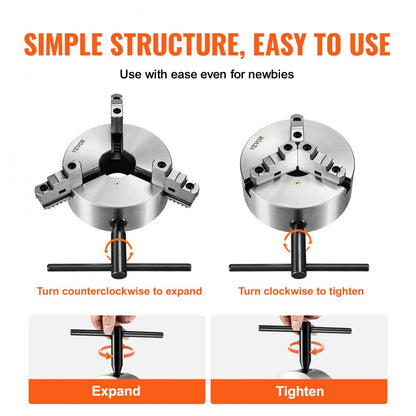

    •Includes T-key fixing screws and hexagon wrench for simple installation.

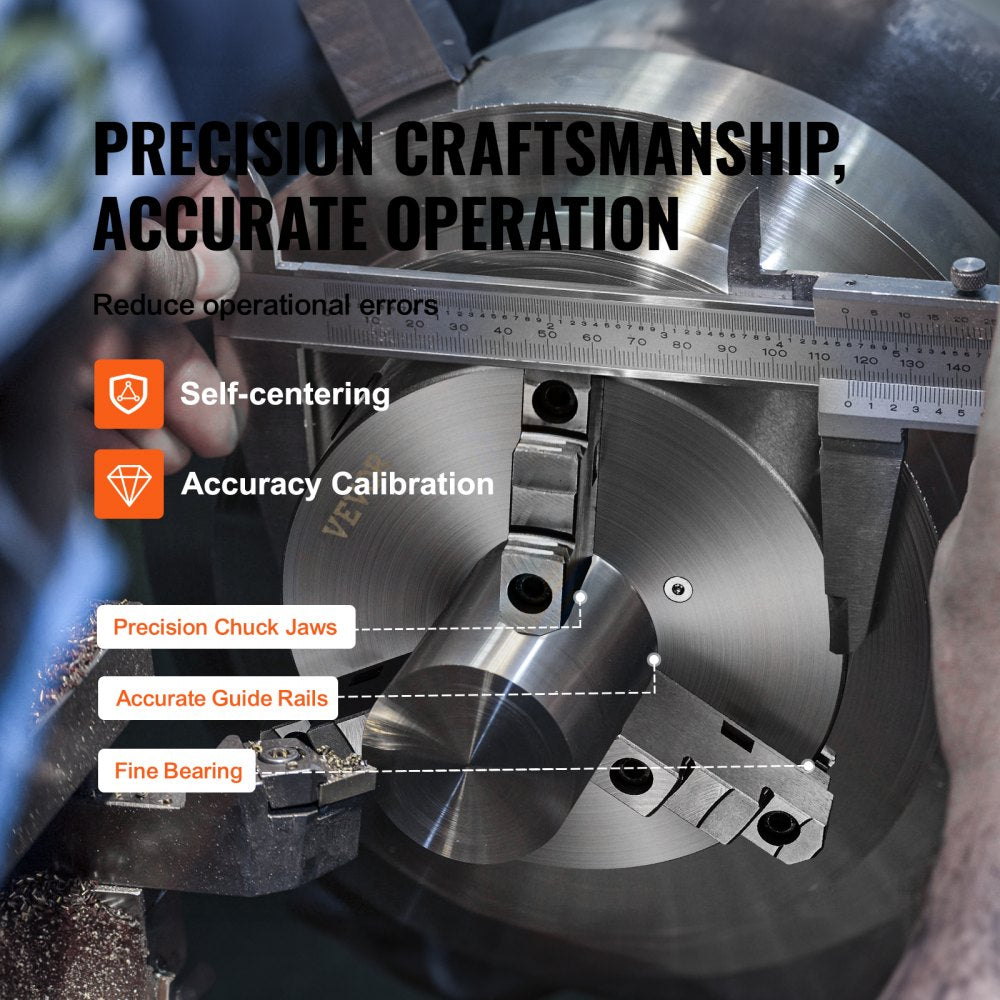

    •Self-centering function allows for accurate performance without repeated calibration.

    •Adaptable to various machinery, ensuring versatility in application.

    •Designed for high durability with materials resistant to wear and tear.

    •Includes features to ensure easy maintenance and extended lifespan.

    •Used in woodworking, metalworking, drilling, and milling.

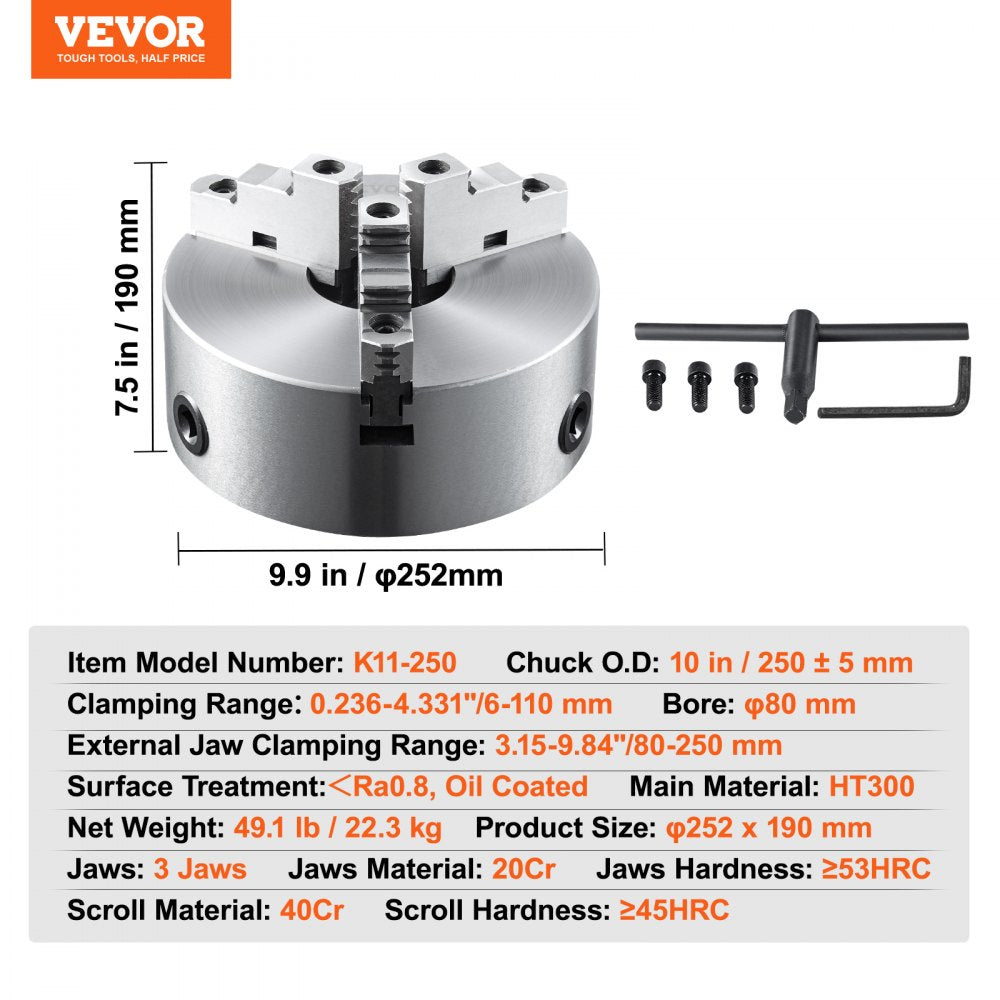

Specifications:

 Item Model Number K11-250
 Chuck O.D 10 in / 250 ± 5 mm

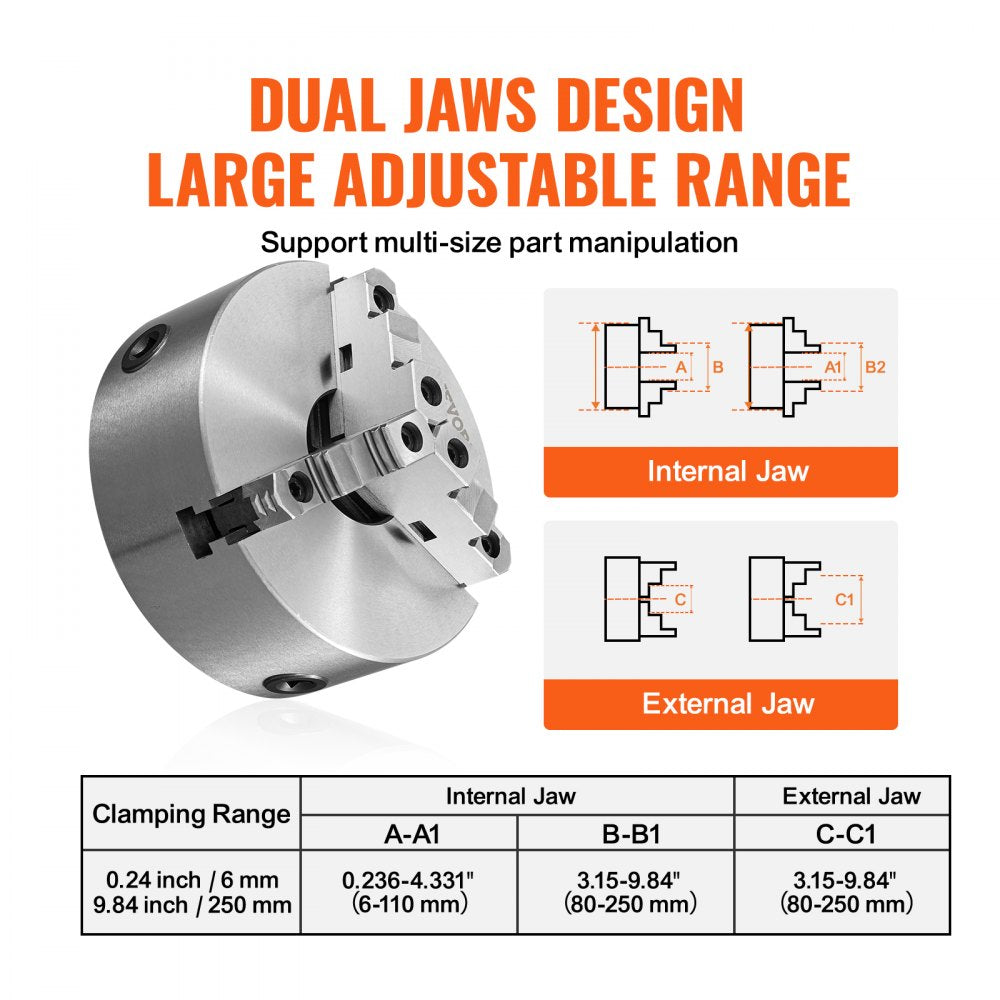

 Clamping Range 0.236-4.331"/6-110 mm
 External Jaw Clamping Range 3.15-9.84"/80-250 mm
 Fixed Thread 3-M10
 Bore φ80 mm
 Surface Treatment

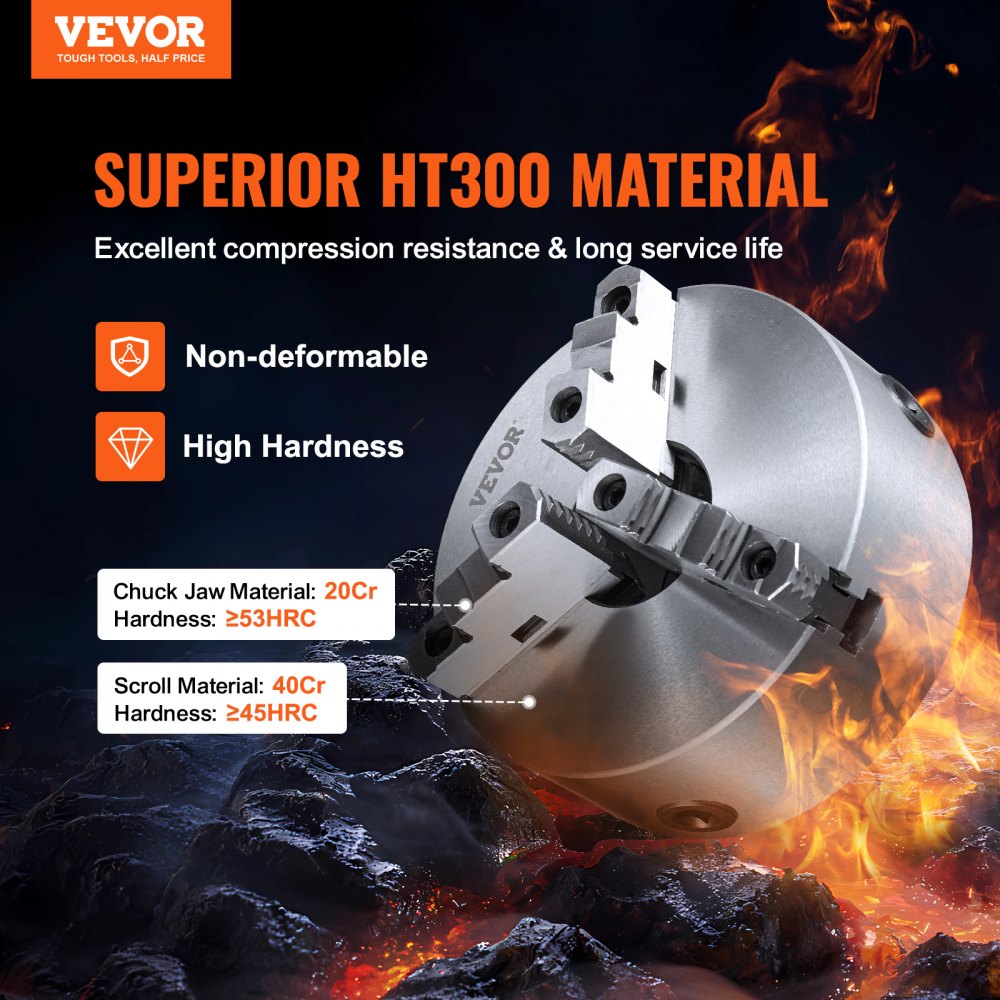

 Main Material HT300
 Net Weight 49.1 lb / 22.3 kg
 Product Size φ252 x 190 mm
 Jaw 3-Jaw, 20Cr, ≥53HRC
 Scroll 40Cr, ≥45HRC
