Description:

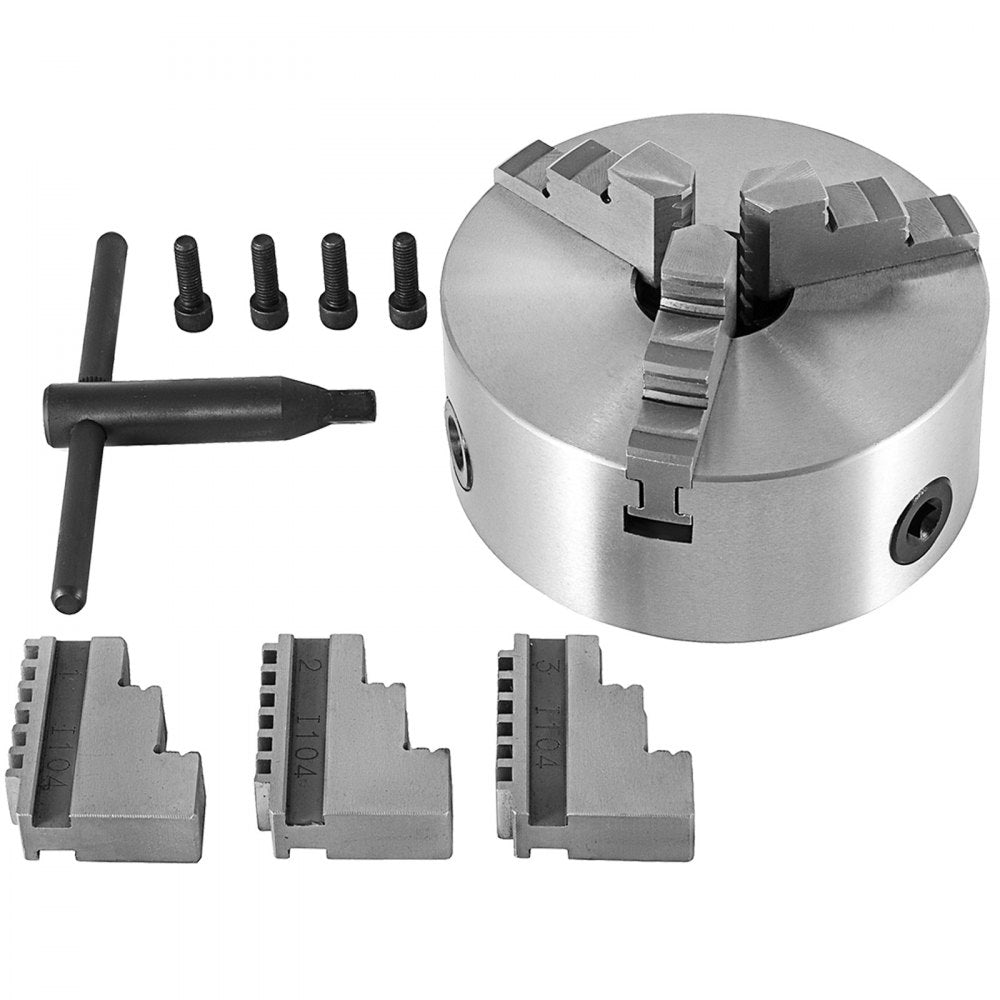

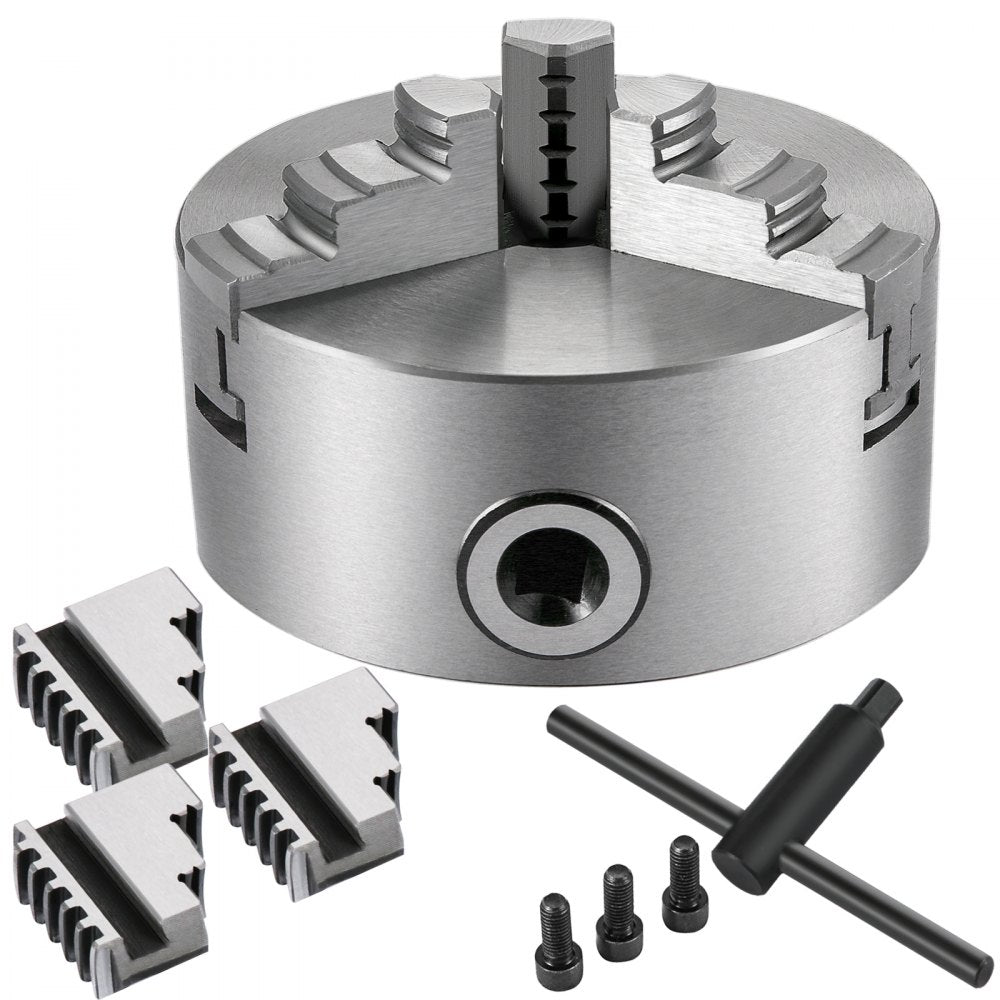

Introducing the VEVOR K11-100 lathe chuck, a robust 4-inch self-centering model featuring three jaws along with two additional sets of jaws Crafted from high-grade hardened steel, this chuck promises exceptional durability and longevity It accommodates industrial components with a clamping capacity ranging from 0078" / 2 mm to 354" / 90 mm The innovative self-centering design facilitates quick and easy setup, removing the hassle of frequent adjustments.

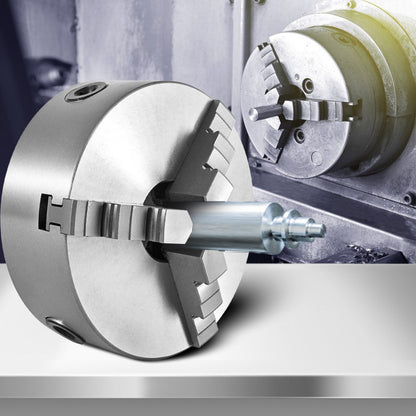

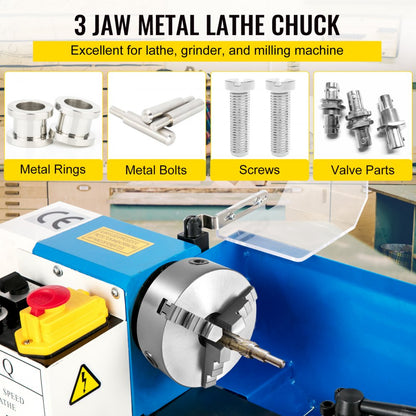

This versatile chuck is compatible with a variety of general-purpose lathes, CNC lathes, milling machines, and other machining tools, making it an efficient choice for all your machining needs.
Features and Benefits:

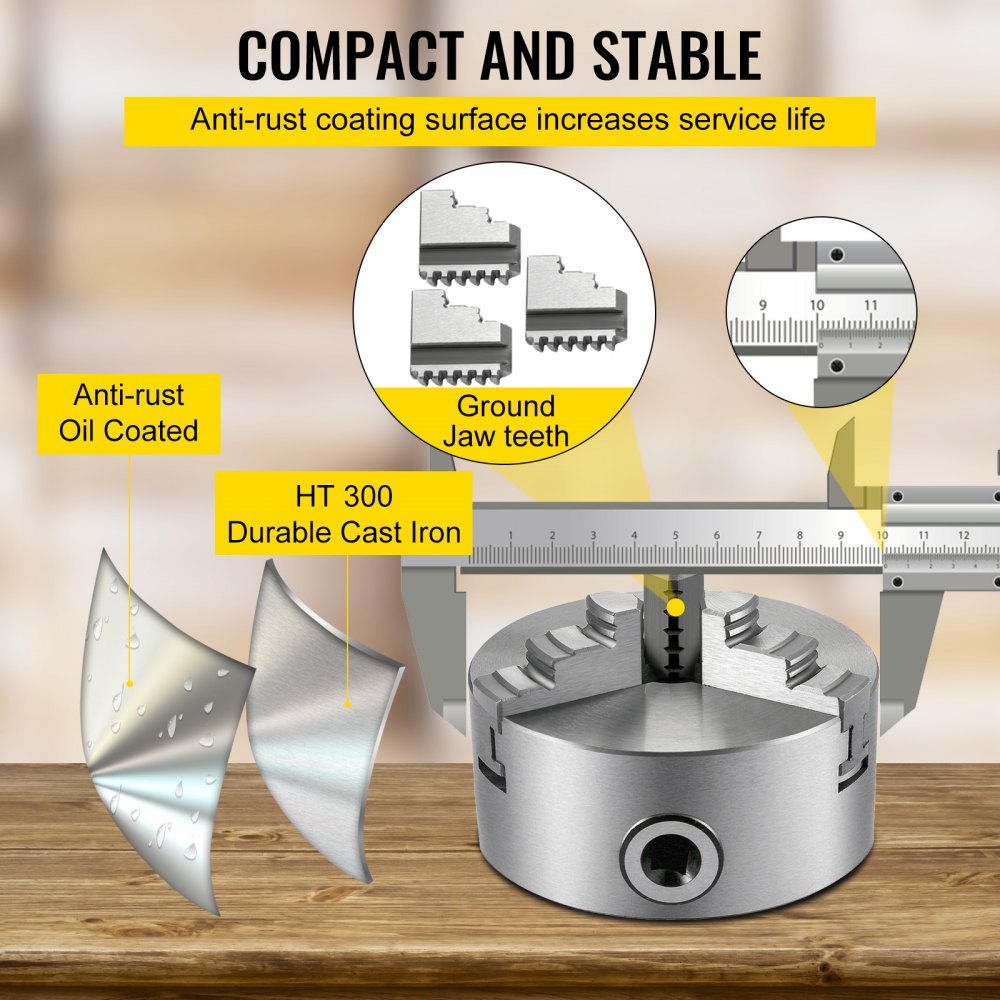

•Made of high-quality hardened steel for durability.

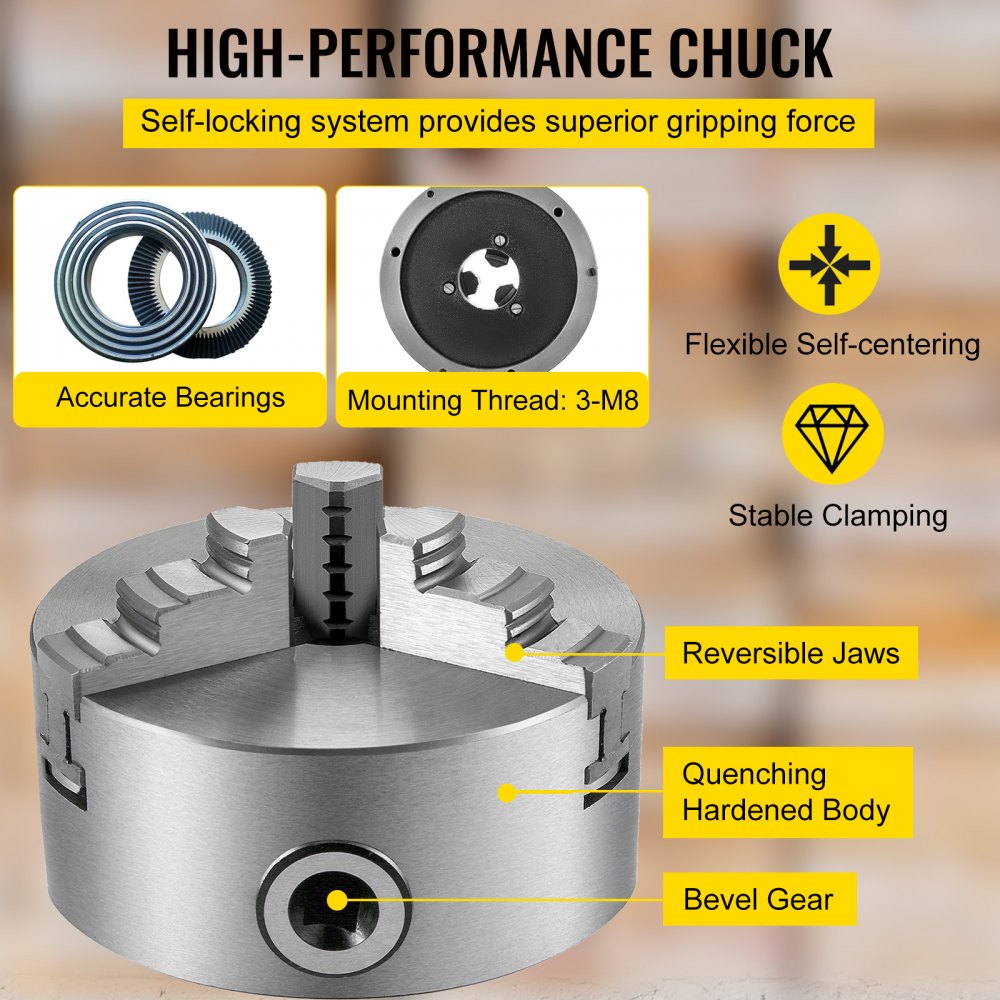

•Self-centering design for easy operation.
•Fast clamping speed with no need for repeated calibration.
•Versatile applications across various types of machinery.
•General-purpose lathes.
•CNC lathes.
•Grinding machines.
•Milling machines.
•Drilling machines.
Specifications:
| Material | Hardened Steel |
| Model | K11-100 |
| Jaw | 3 Jaw |
| High Precision | ≤0.002" / 0.05 mm |

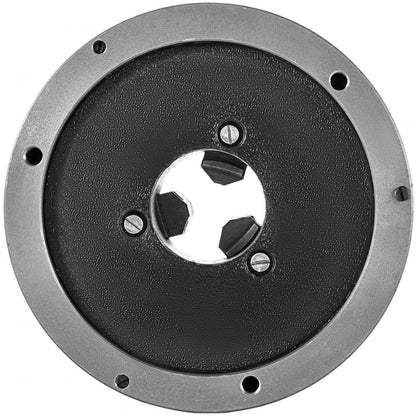

| Mounting Thread | 3-M8 |

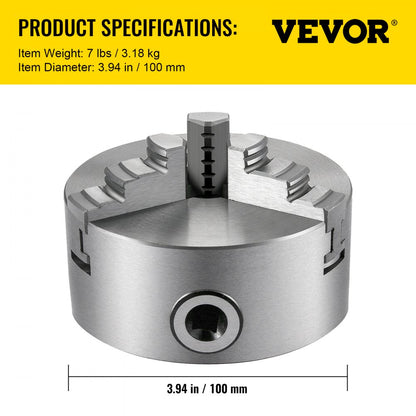

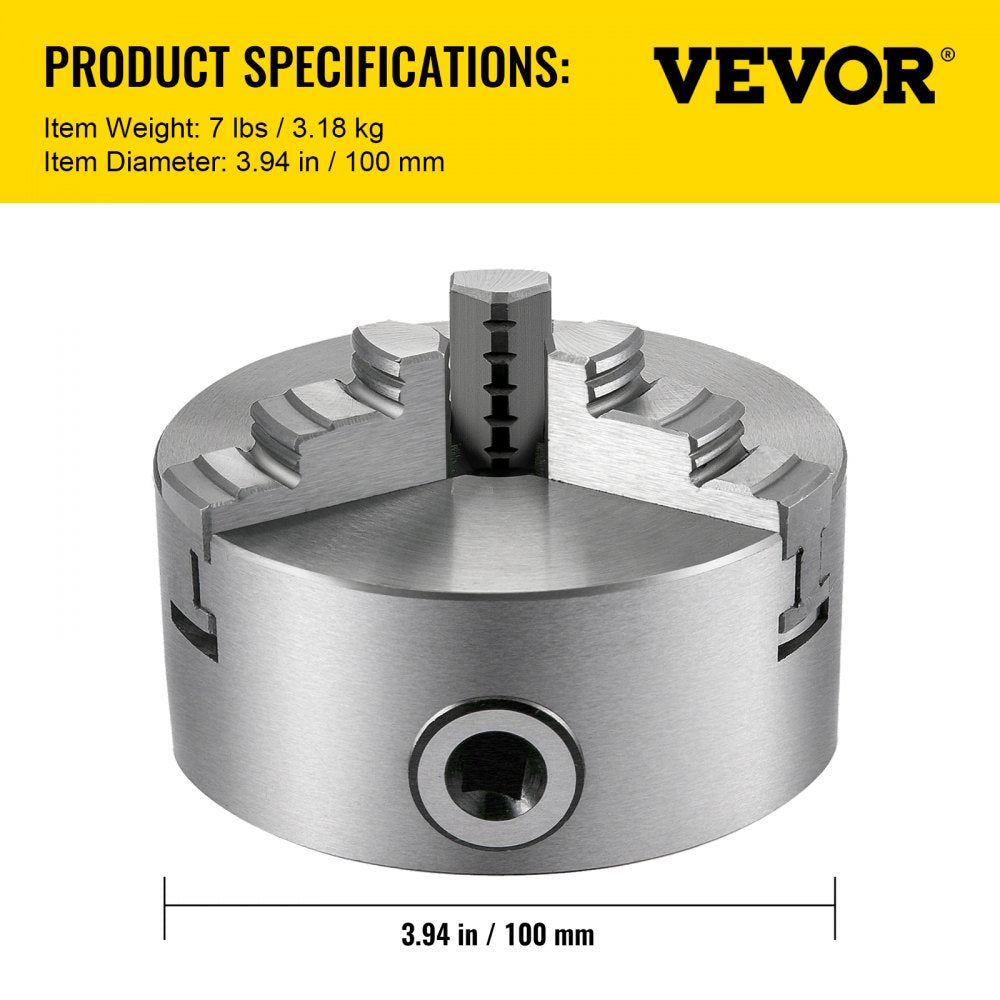

| Outside Diameter | 3.94" / 100 mm |
| Bolt Circle Diameter | 3.31" / 84 mm |
| Center Thru Hole Diameter | 0.866" / 22 mm |
| Chuck Body Thickness | 2.16" / 55 mm |

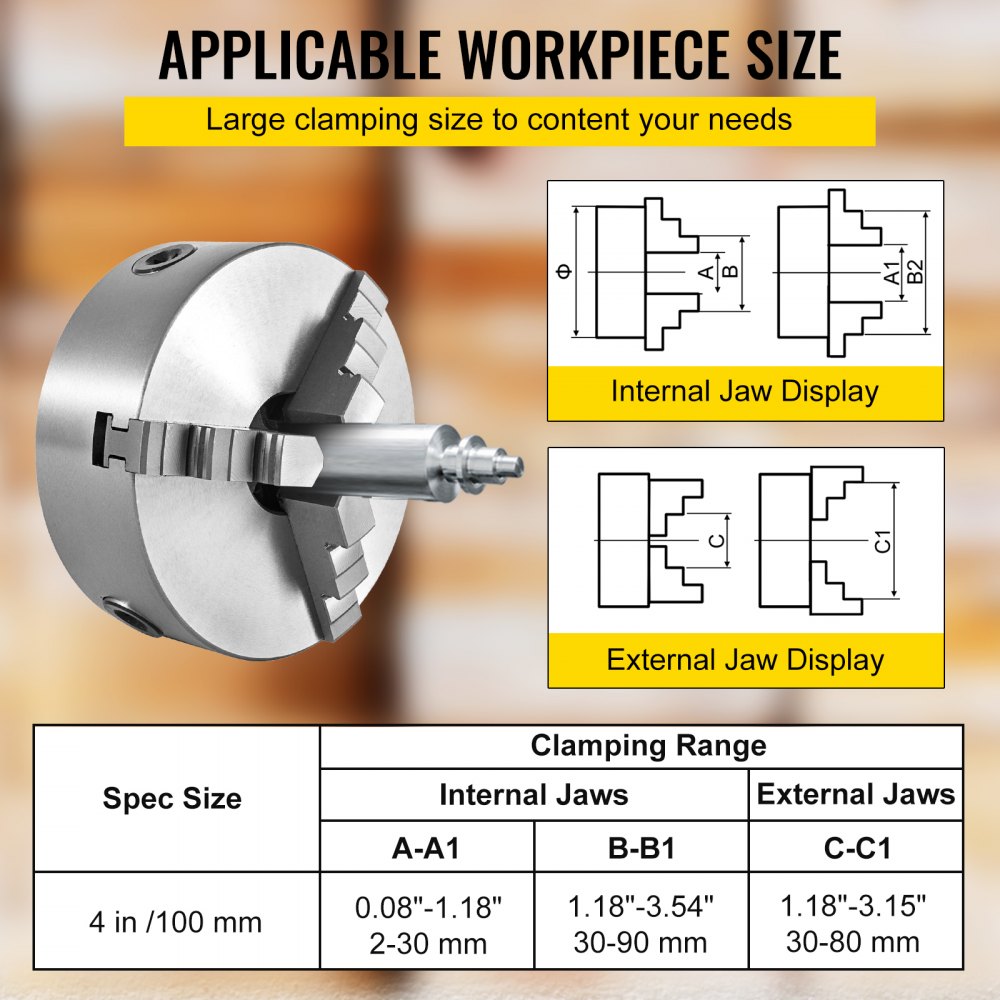

| Internal Jaw Clamping Range (A-A1) | 0.08"-1.18" / 2-30 mm |
| Internal Jaw Jamming Range (B-B1) | 1.18"-3.54" / 30-90 mm |
| External Jaw Clamping Range (C-C1) | 1.18"-3.15" / 30-80 mm |
| Accuracy | 0.002" / 0.051 mm |
