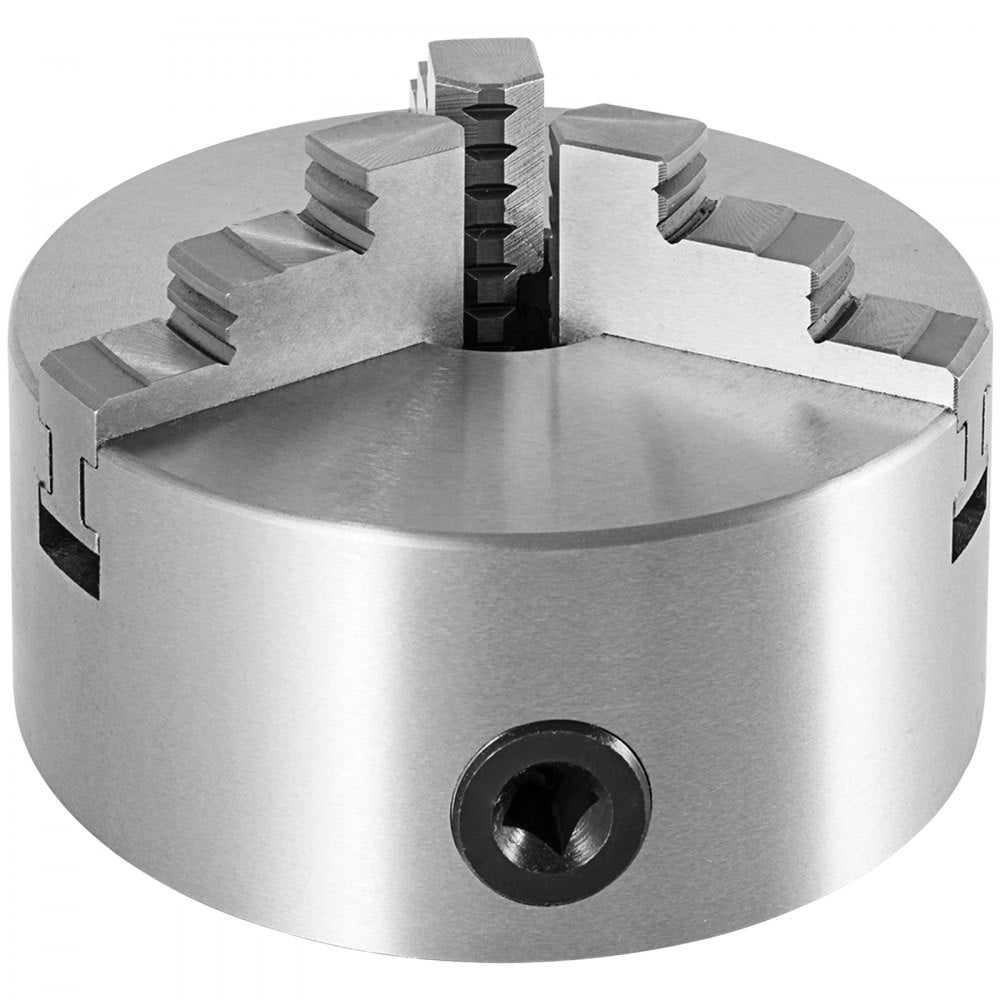

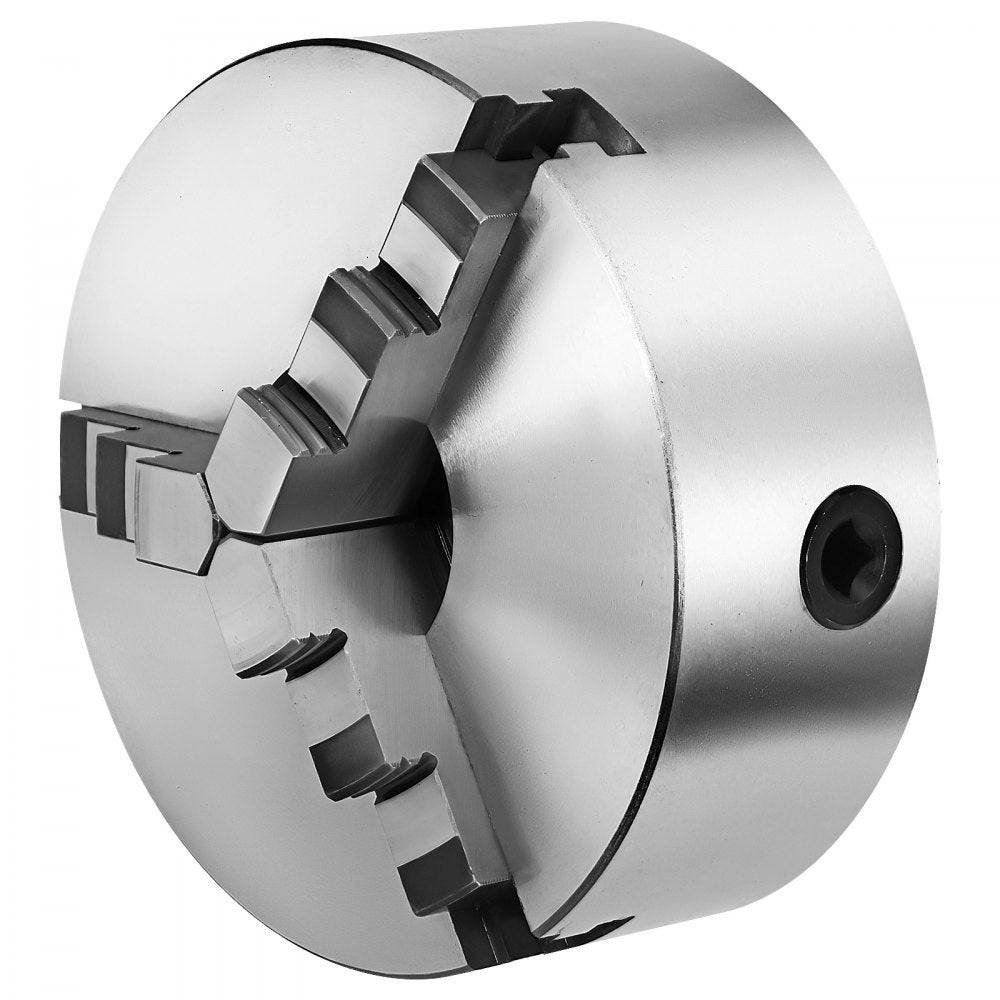

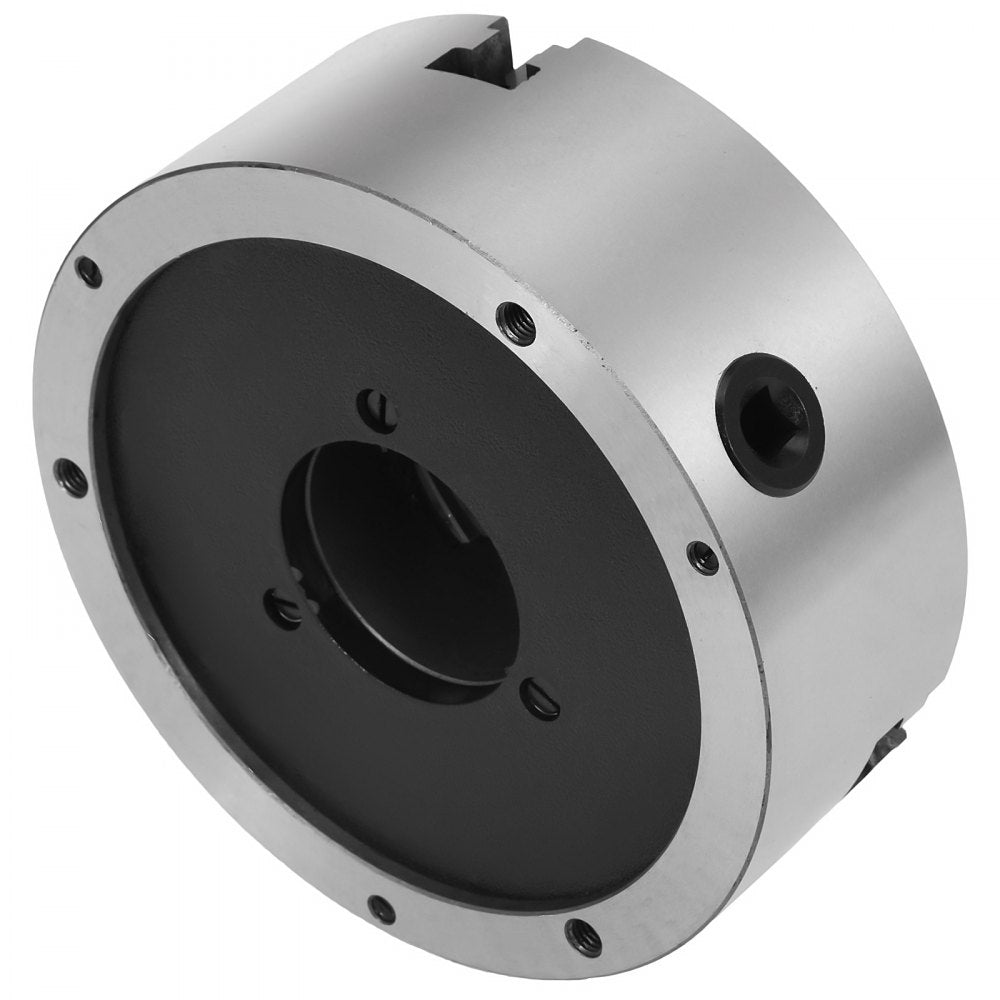

K11-200 - 8" Self-Centering Steel Lathe Chuck for Versatile Use

K11-200 - 8" Self-Centering Steel Lathe Chuck for Versatile Use

SKU: SKU: K11-200

Variant:
  • K11-200 - 8" Self-Centering Steel Lathe Chuck for Versatile Use
Regular price Now $108.75
Regular price BEFORE   $0.00 Sale price Now $108.75
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the versatility of this premium lathe chuck, expertly constructed from high-grade hardened steel for unmatched durability and longevity It includes two sets of jaws that can securely grip industrial parts ranging from 016 inches (4 mm) to 787 inches (200 mm) Thanks to its self-centering feature, you'll experience hassle-free setup without the need for constant recalibration Compatible with various general-purpose lathes, budget-friendly CNC lathes, and additional machine tools, this lathe chuck is a vital addition to any workshop.

Features and Benefits:

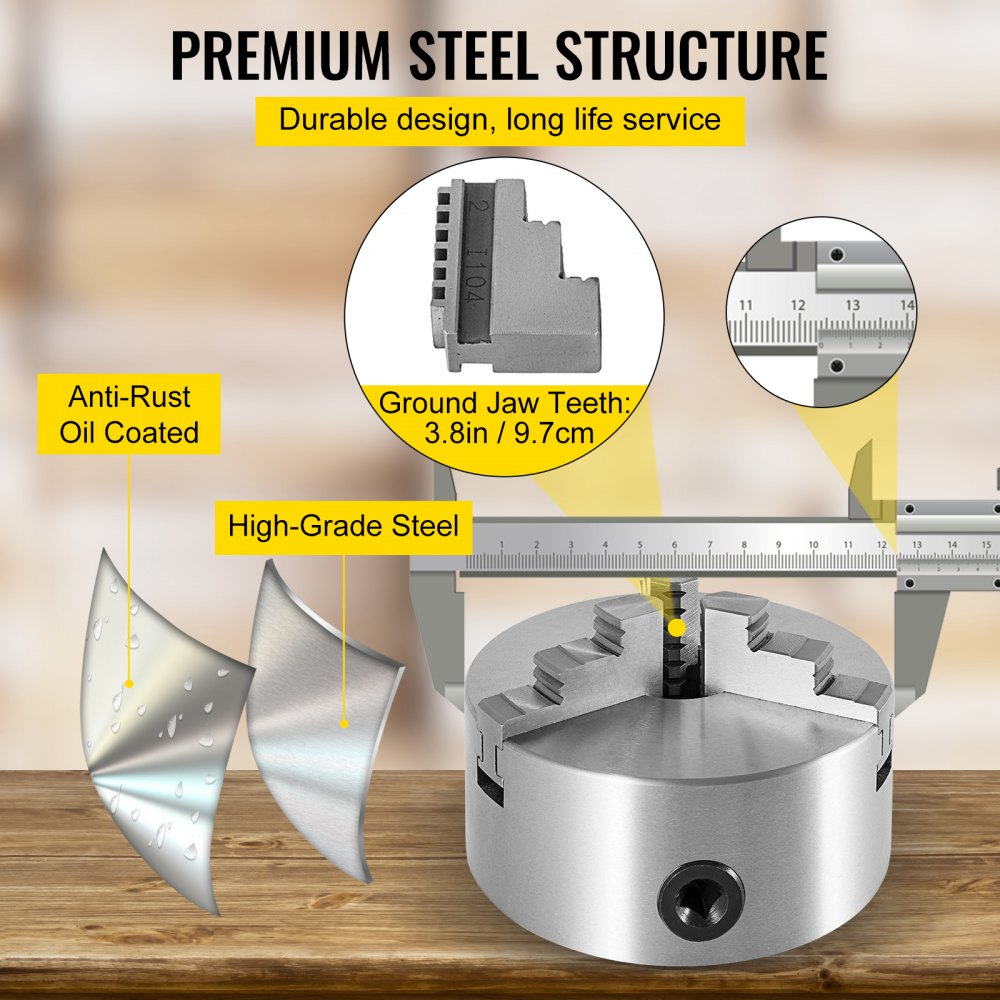

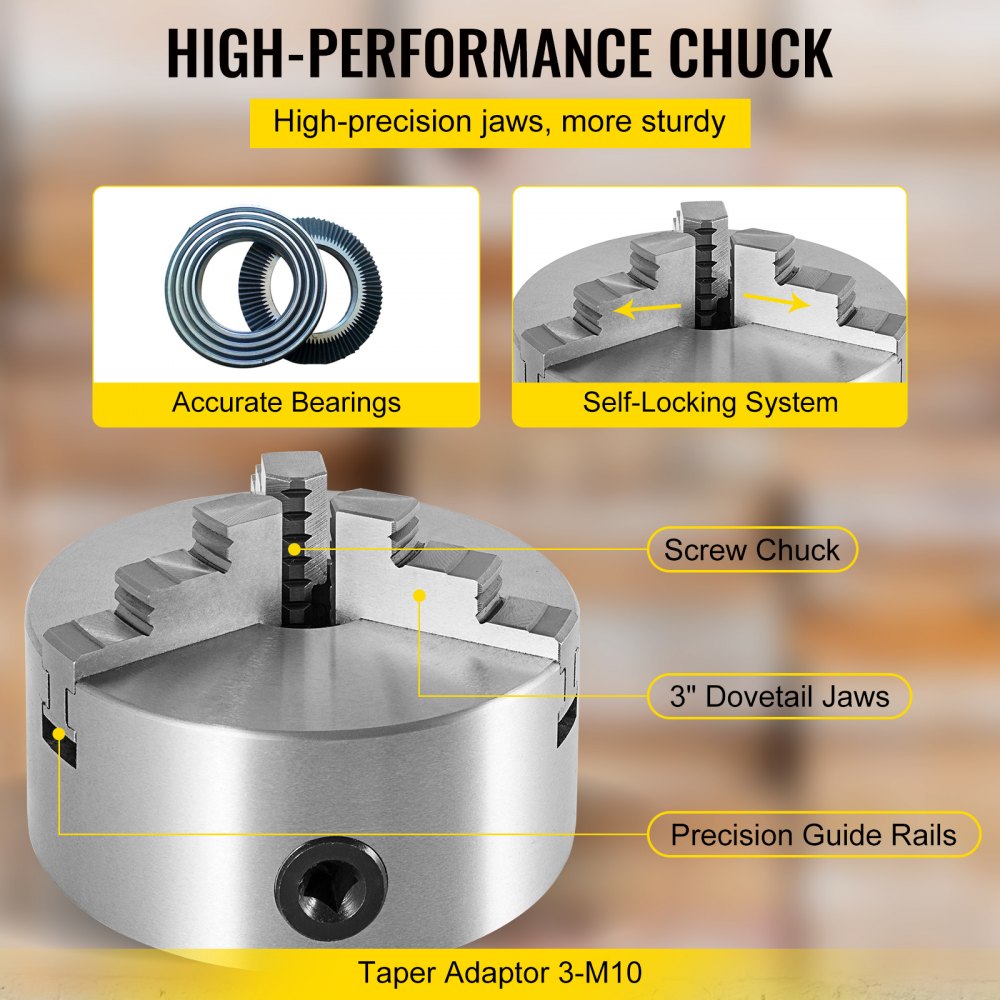

    •Premium steel structure providing high strength and resistance to compression.

    •Quick and effortless operation due to automatic centering function without repeated calibration.

    •Universal adapter included to fit varied machines and improve adaptability.

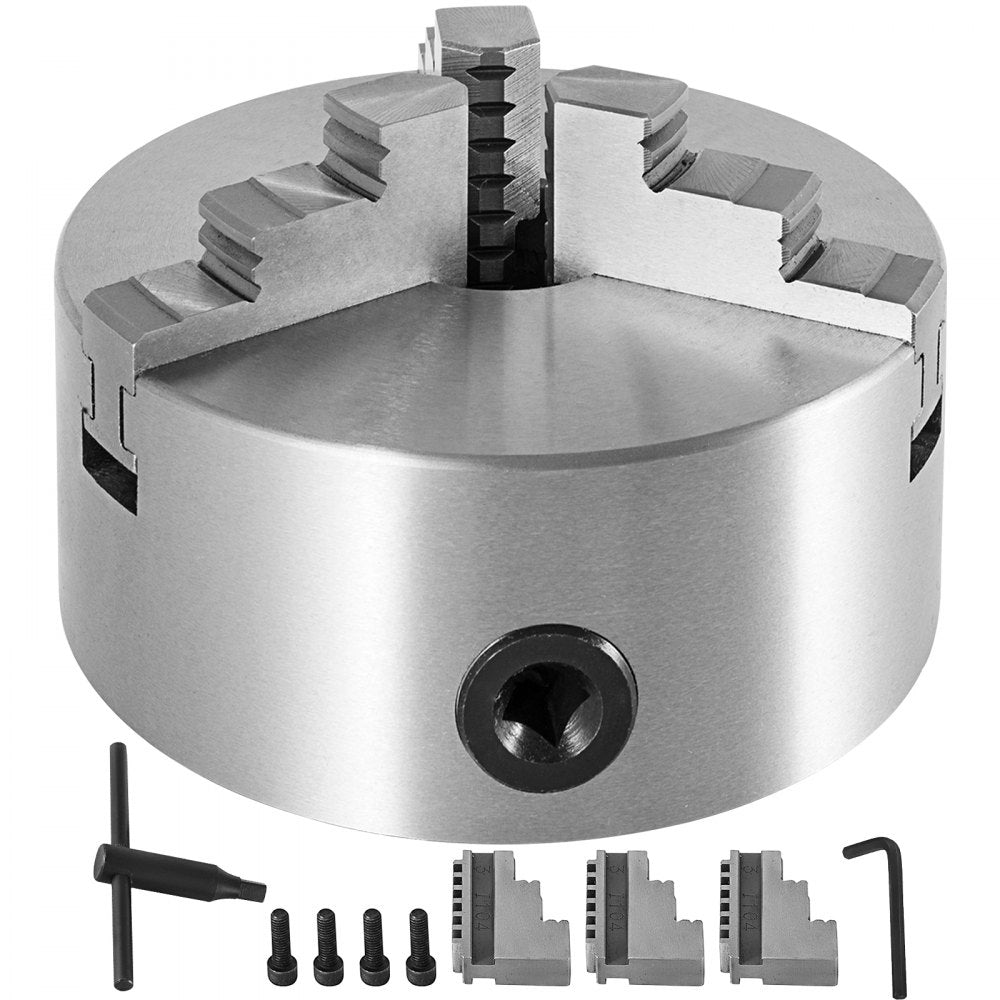

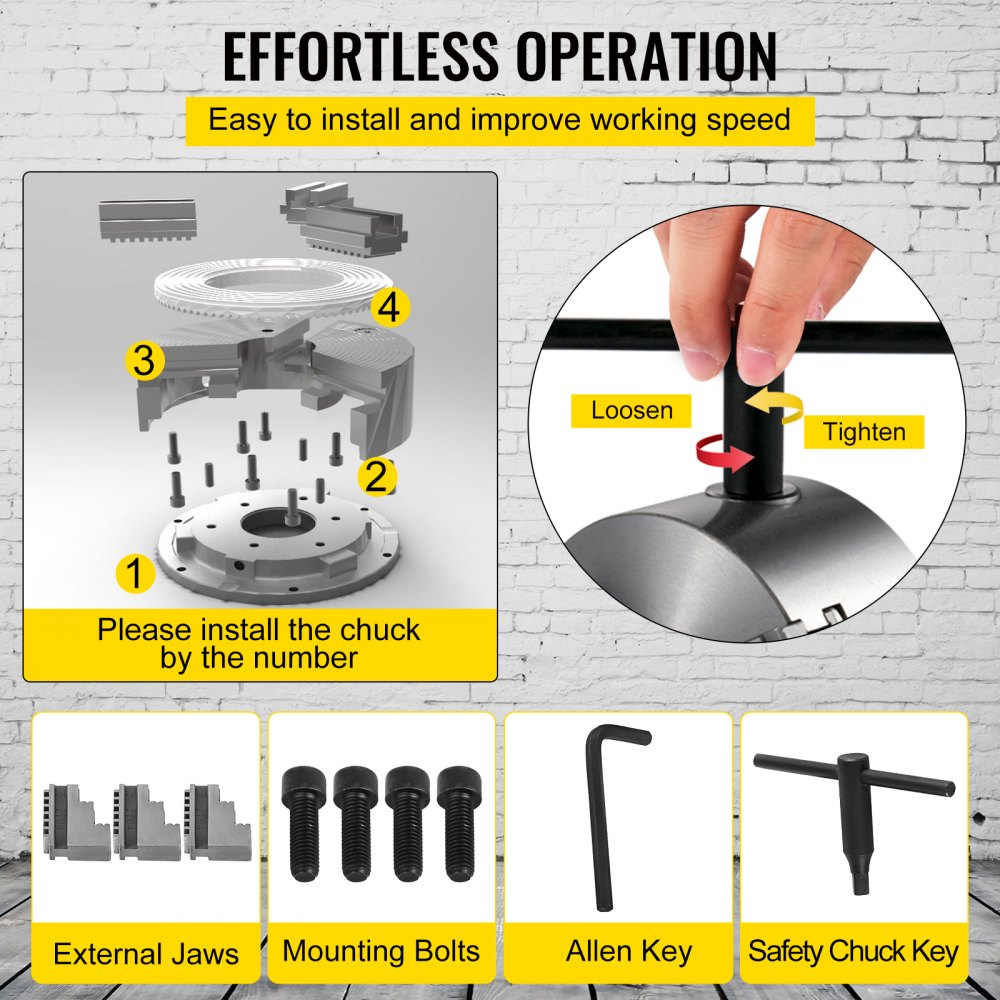

    •Includes complete accessories for easy installation.

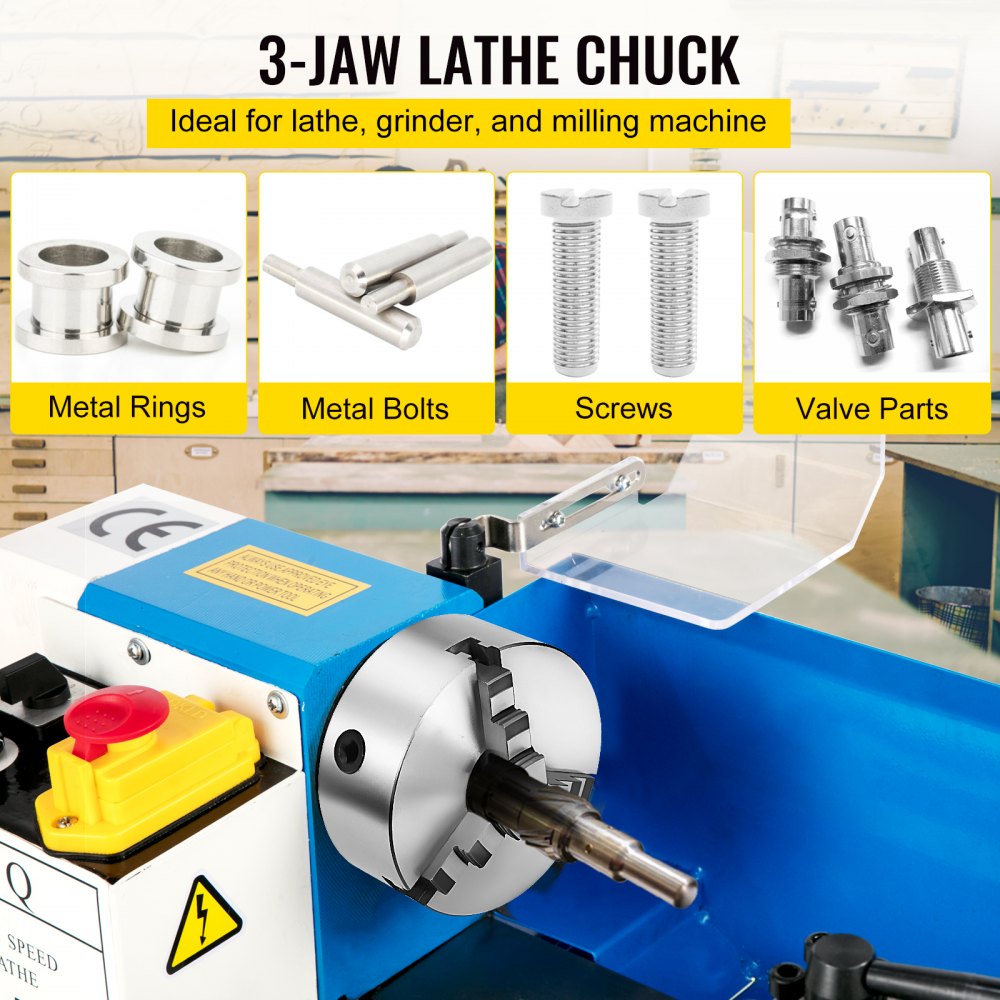

    •General-purpose lathes.

    •Economical CNC lathes.

    •Grinding machines.

    •Milling machines.

    •Drilling machines.

Specifications:

 Model K11-200
 Mounting Thread 3-M10
 Chuck Body Thickness 8" / 75 mm
 Bolt Circle Diameter 7.1" / 180 mm
 Center Thru Hole Diameter 2.6" / 65 mm
 Chuck Body Material 300 Cast Iron

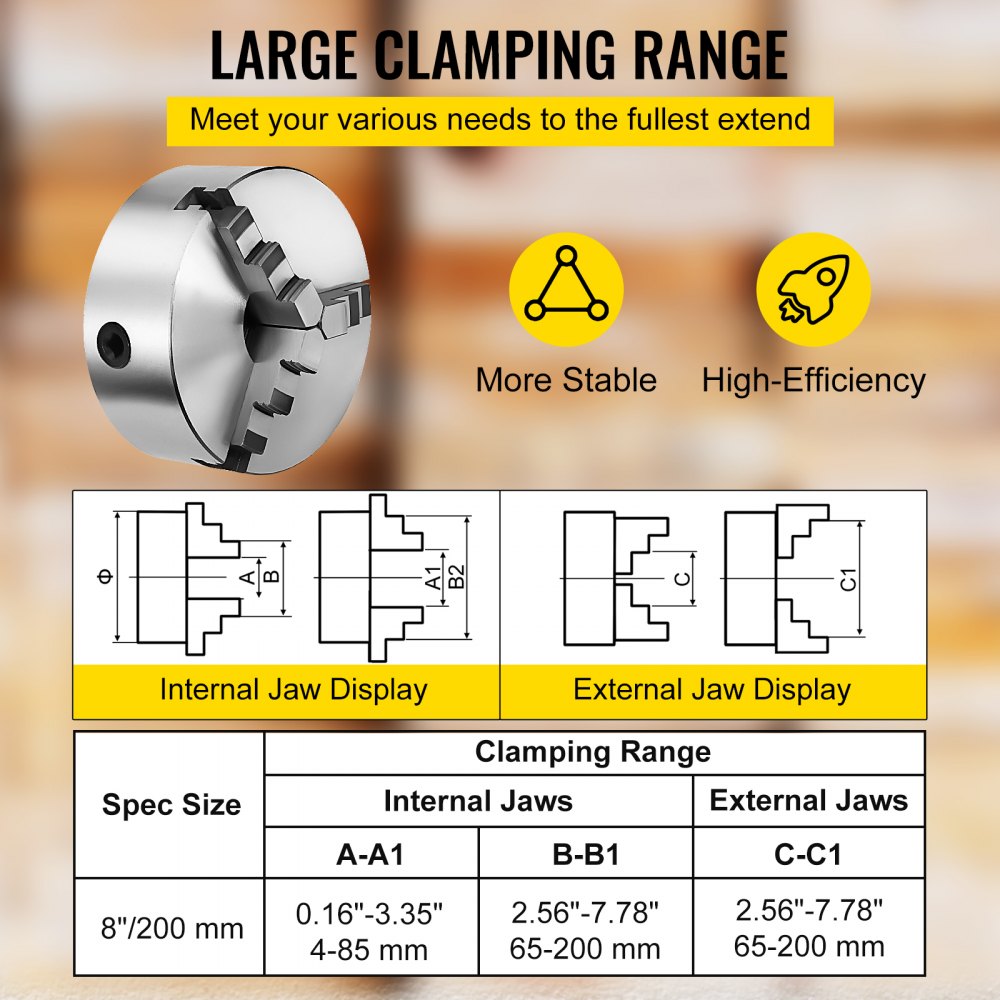

 Internal Jaw Clamping Range (A-A1) 0.16" / 4 mm - 3.35" / 85 mm
 Internal Jaw Jamming Range (B-B1) 2.56" / 65 mm - 7.87" / 200 mm
 External Jaw Clamping Range (C-C1) 2.56" / 65 mm - 7.87" / 200 mm

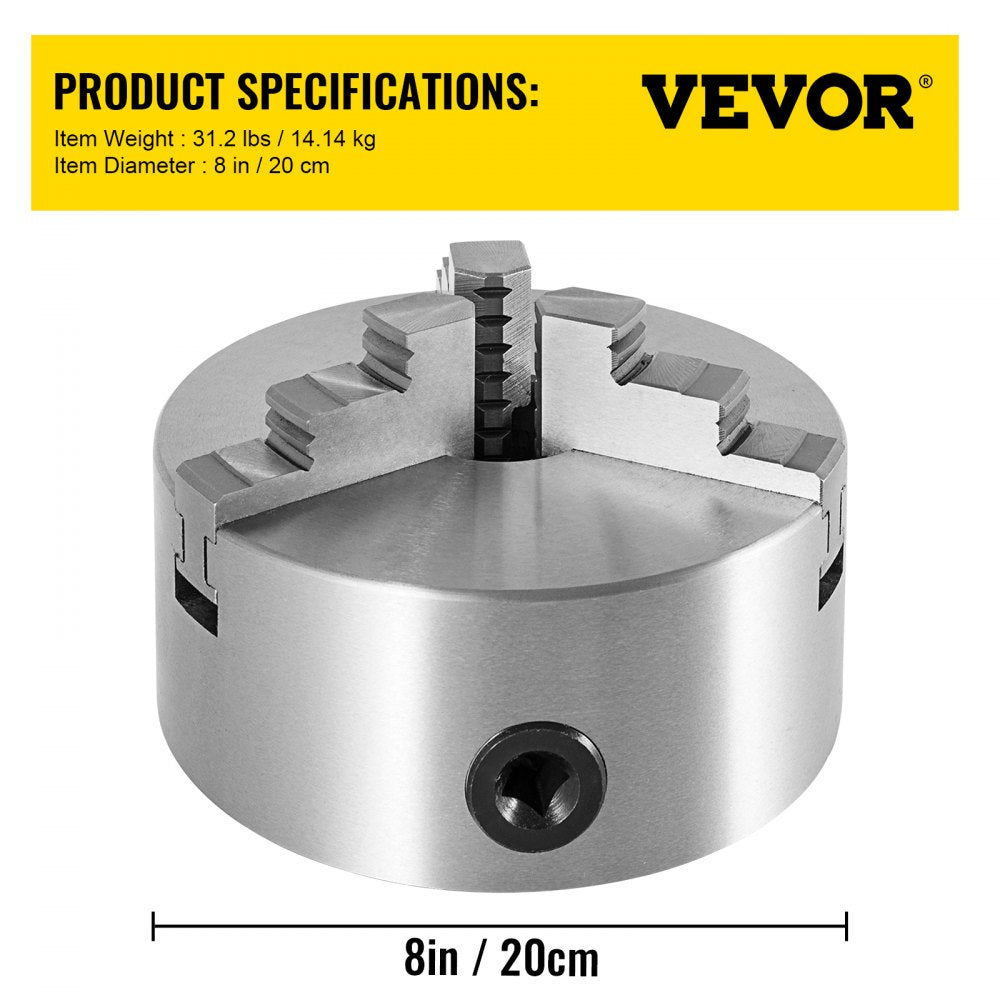

 Item Diameter 8 in / 200 mm
 Item Weight 31.2 lbs / 14.14 kg
