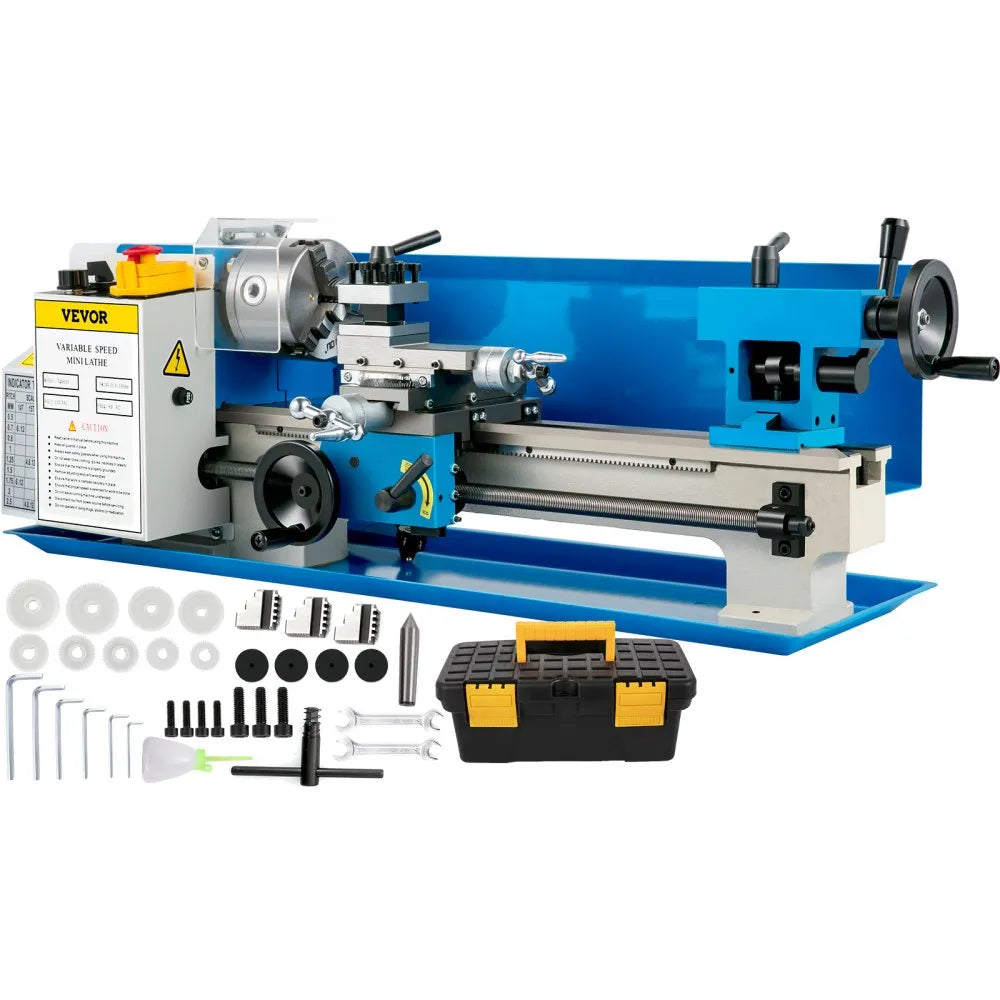

010846869676 - 7" x 14" VEVOR Metal Lathe with 550W Motor

010846869676 - 7" x 14" VEVOR Metal Lathe with 550W Motor

SKU: SKU: 010846869676   Download PDF

Select a Variant:
  • 010846869676 - 7" x 14" VEVOR Metal Lathe with 550W Motor
Qty:
Regular price Now $536.45   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $536.45 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

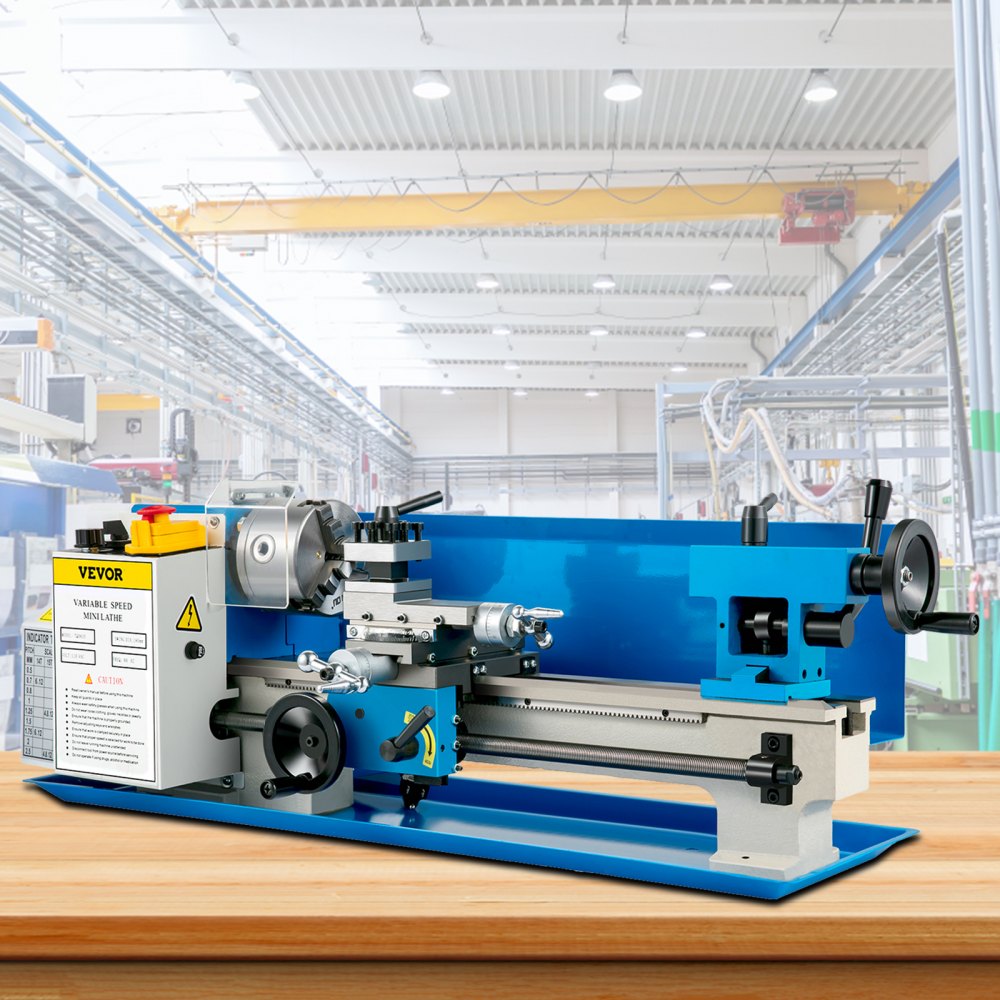

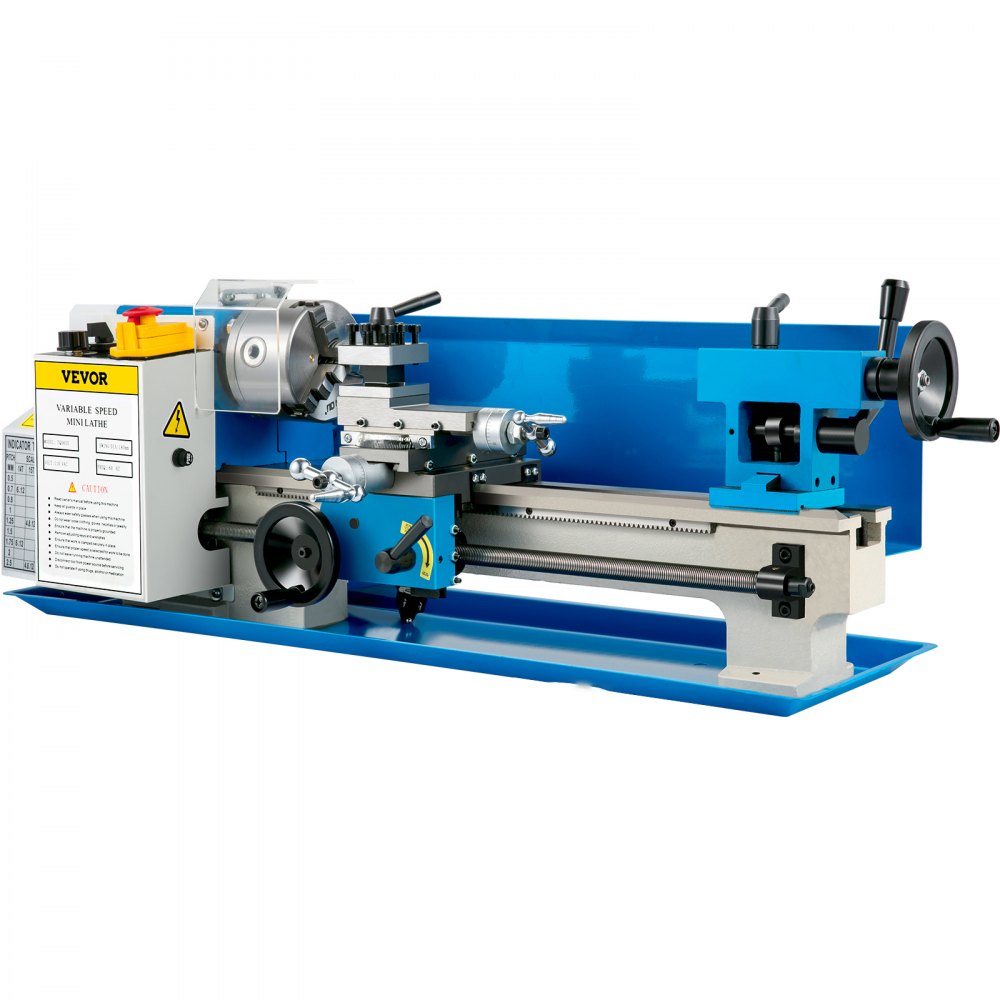

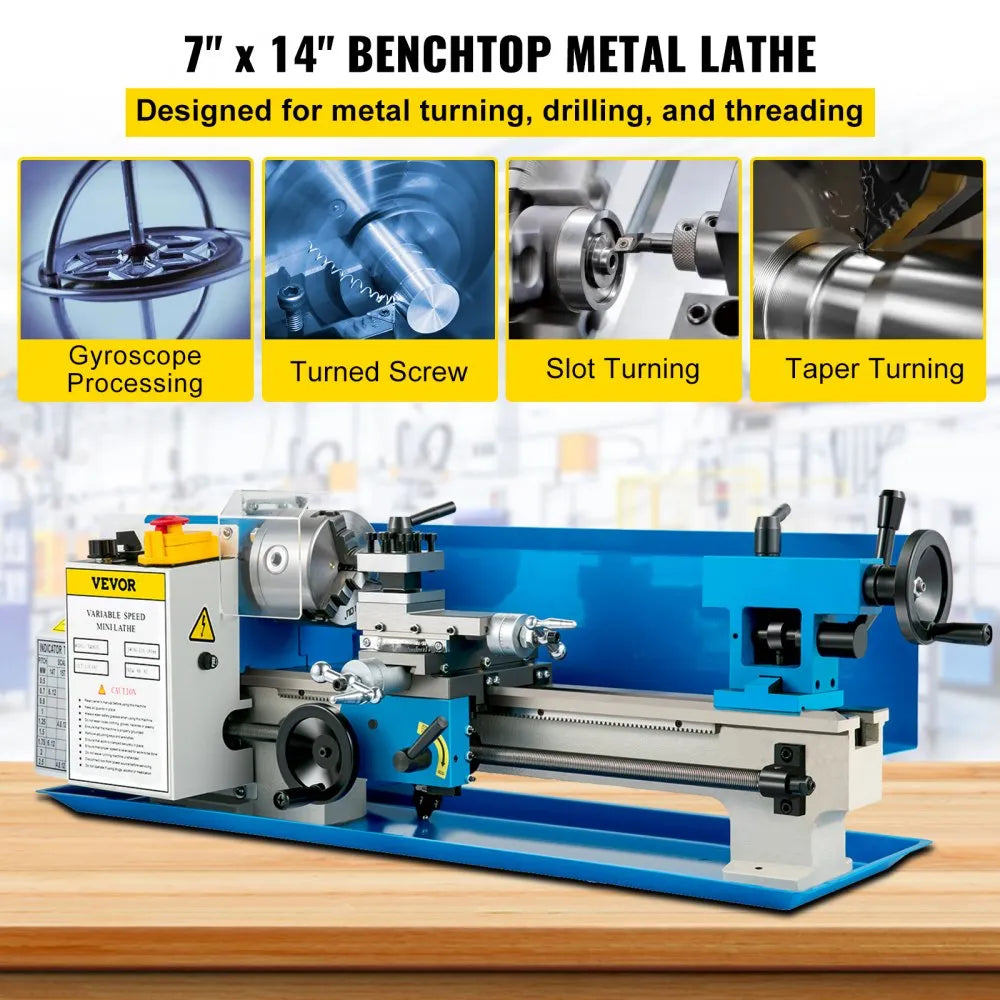

Discover precision engineering with the VEVOR Metal Lathe, featuring a 7" x 14" design that excels in metal turning tasks This robust benchtop lathe is powered by a 550W motor, offering a versatile variable speed range from 0 to 2250 RPM Crafted from strong aluminum and fitted with tough nylon gears, it includes a reliable 3-jaw chuck for optimal performance Designed for user-friendliness, the MT3 spindle taper and MT2 tailstock taper contribute to seamless operation.

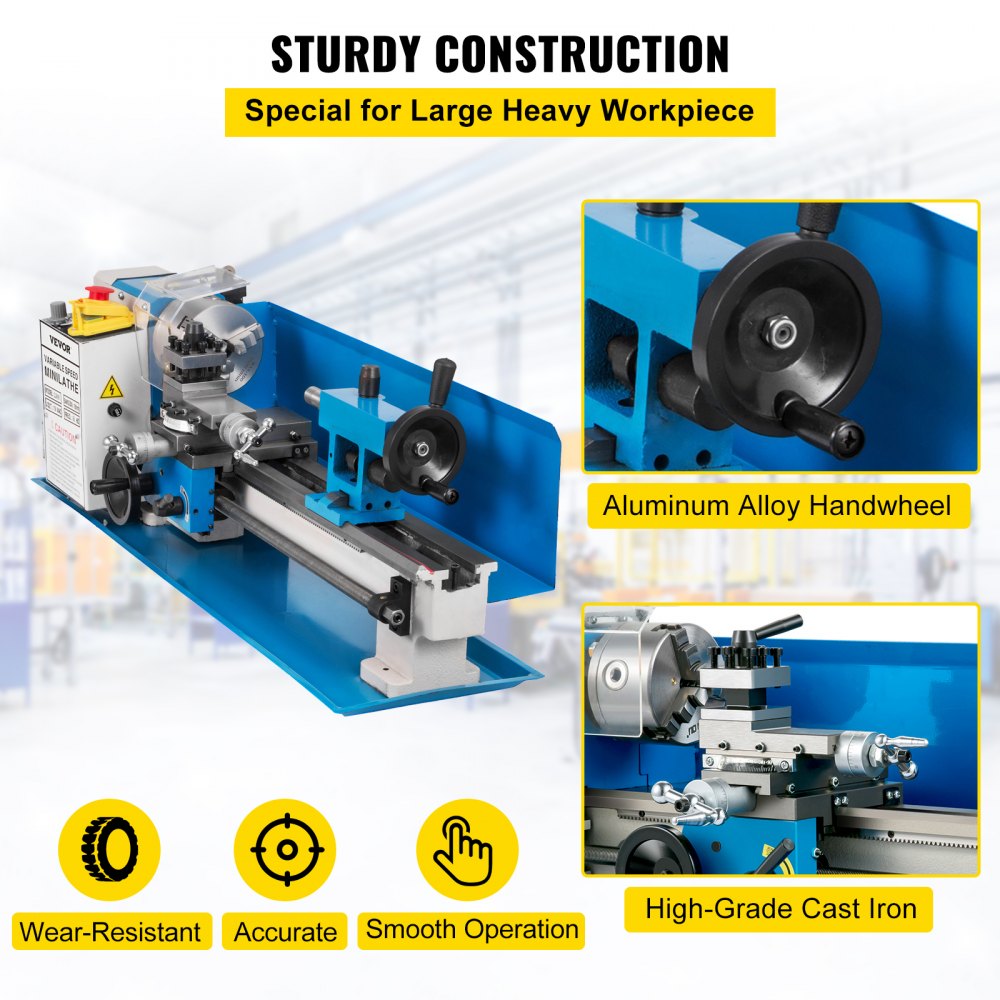

The cast iron bed is treated with high-frequency quenching and precision grinding, ensuring exceptional durability and performance This lathe is an excellent choice for a wide array of metalworking projects, providing both accuracy and reliability you can count on.

Features and Benefits:

    •Sturdy aluminum construction for durability.

    •Infinitely variable speeds provide flexibility.

    •Accurate 3-jaw chuck for stable material setting.

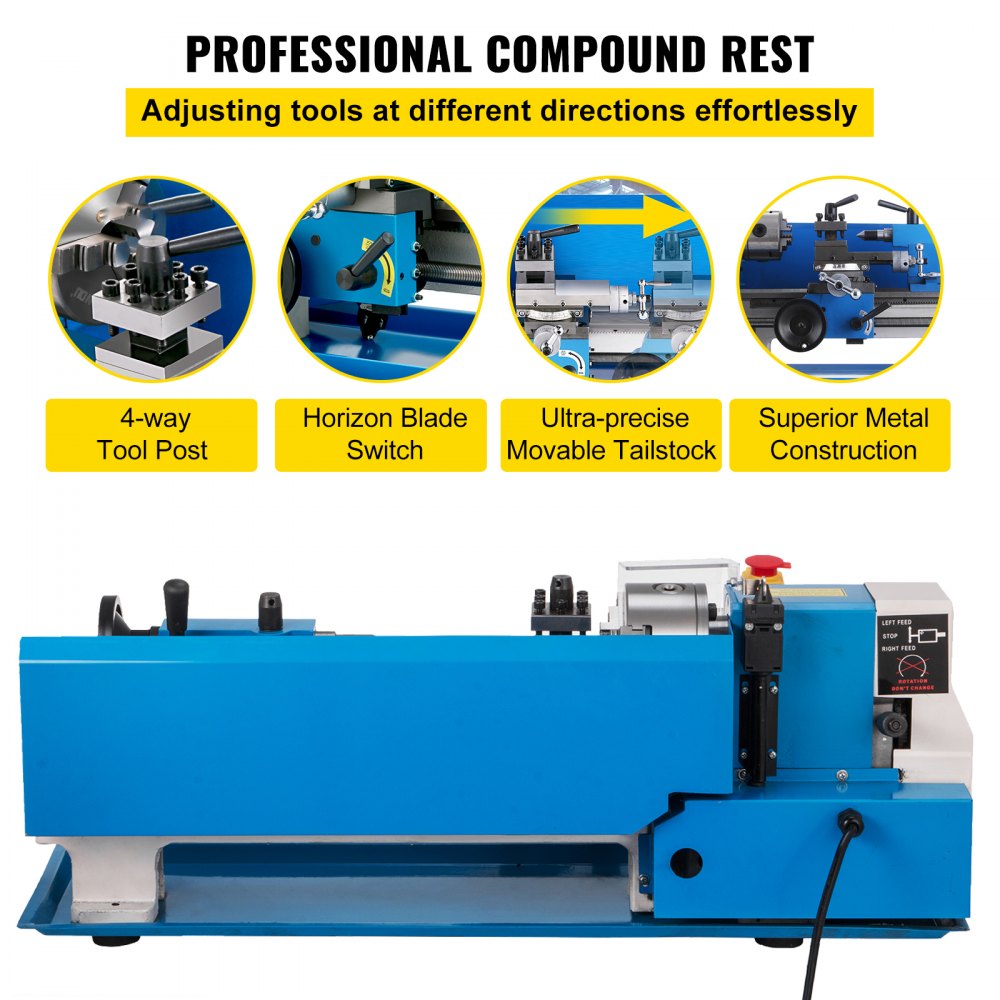

    •Professional compound rest allows for diverse cutting tasks.

    •Four-way tool post for easy blade changes.

    •Mini precision parts processing.

    •Sample processing.

    •Modeling works.

Specifications:

 Power of Motor 550W DC Single Phase
 Spindle Speed 0 - 2250 RPM

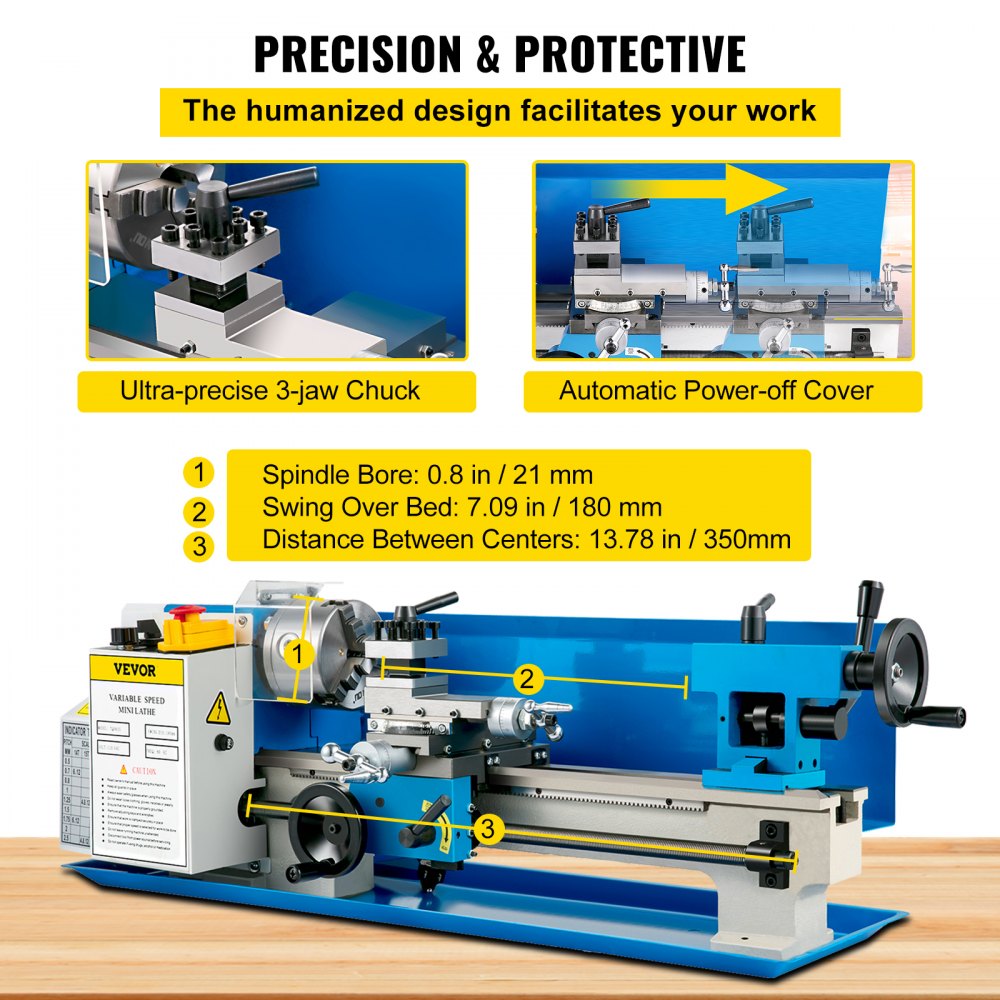

 Swing Over Bed 7.09" / 180 mm
 Swing Over Cross Slide 4.3" / 110 mm
 Chuck Diameter 3.94" / 100 mm
 Centers Distance 13.78" / 350 mm
 Spindle Bore 0.79" / 20 mm
 Spindle Taper MT3
 Tailstock Taper MT2
 Cross Slide Travel 2.53" / 65 mm
 Top Slide Travel 1.36" / 35 mm
 Spindle Accuracy 0.0004" / 0.01 mm
 Inch Thread 12 - 52 T.P.I
 Metric Thread 0.5 - 2.5 mm

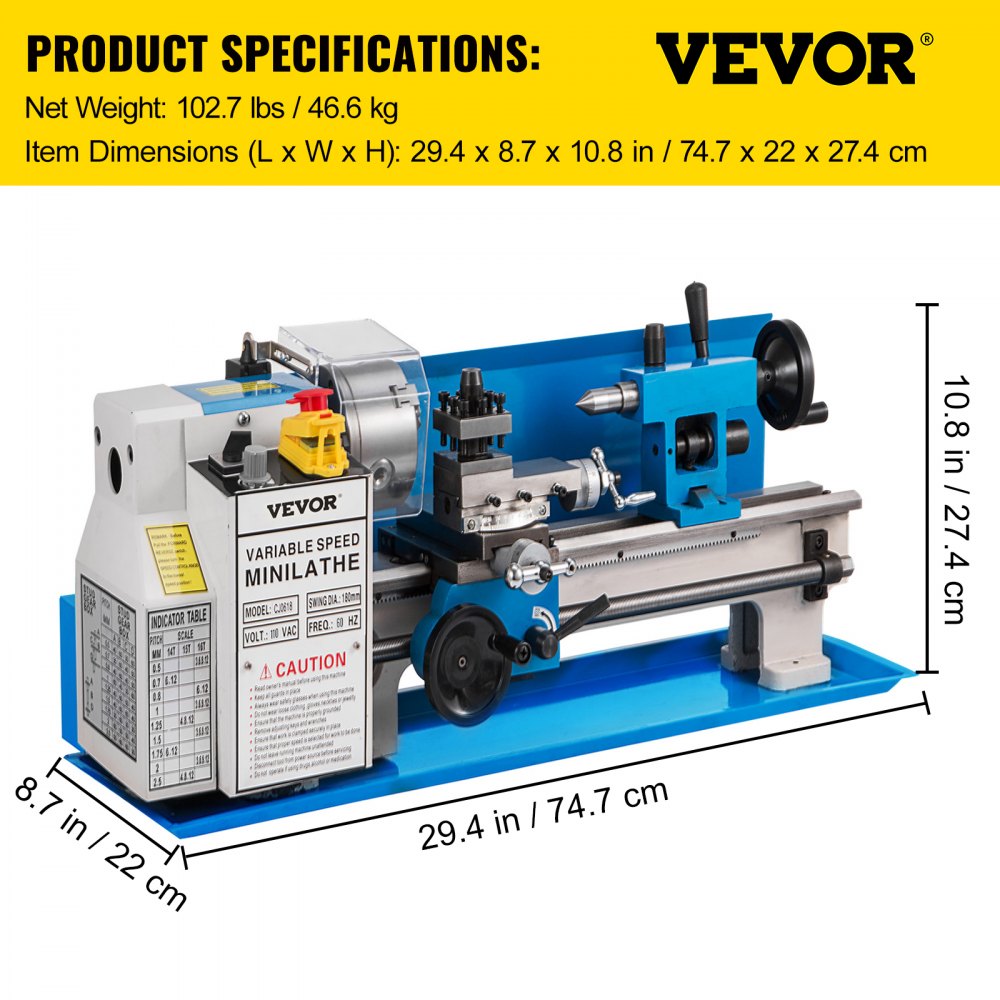

 Item Dimensions (L x W x H) 29.4 x 8.7 x 10.8 in / 74.7 x 22 x 27.4 cm
