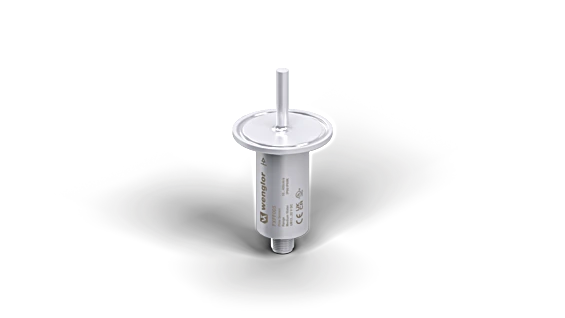

FXFF005 - Versatile Flow Sensor for Liquid Measurement with IO-Link

FXFF005 - Versatile Flow Sensor for Liquid Measurement with IO-Link

SKU: FXFF005 Download PDF

Variant:
  • FXFF005 - Versatile Flow Sensor for Liquid Measurement with IO-Link
Now $468.00
BEFORE   $0.00 Now $468.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the weFlux² flow sensors, designed to accurately measure both flow velocity and temperature for aqueous liquids, irrespective of their position or flow direction This innovative design significantly reduces the number of required measuring points and sensor variants, offering exceptional flexibility for installation in closed piping systems Depending on your specific needs, the sensors can be configured to provide either two switching outputs or a combination of one switching output and one analog output.

Use the IO-Link functionality to customize the outputs, tailoring the sensors to meet the demands of any application effectively.

Features and Benefits:

    •A single sensor for flow and temperature.

    •FDA compliant.

    •Ready for Industry 4.0 with IO-Link 1.1.

    •Measurement independent of flow direction and installation position.

Specifications:

 Measuring Range 10 ... 400 cm/s
 Temperature of the medium, flow measurement 0 ... 125 °C
 Temperature of the medium, temperature measurement -25 ... 150 °C
 Setting Range 10 ... 400 cm/s
 Medium Water
 Measuring error (total) ≤ 2 %
 MTTFd (EN ISO 13849-1) 1,210.41 a
 Response time in case of temperature jump 10 s
 Ambient temperature -25 ... 80 °C
 Storage temperature -25 ... 80 °C
 Pressure Resistance 25 bar
 EMC DIN EN 61326-1
 Shock resistance per DIN IEC 68-2-27 30 g / 11 ms
 Vibration resistance per DIN IEC 60068-2-6 5 g (10...2000 Hz)
 Supply Voltage 12 ... 32 V DC
 Current Consumption (Ub = 24 V) < 40 mA
 Number of Switching Outputs 2
 Number of analog outputs 1
 Analog Output 4...20 mA
 Signal source Flow, Temperature
 Response Time 1 ... 5 s
 Switching Output / Switching Current ± 100 mA
 Voltage Drop < 2 V
 Load Current Voltage Output ≤ 20 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Interface IO-Link V1.1
 Setting Method IO-Link
 Housing Material Stainless steel, V4A (1.4404/316L)
 Material in contact with media Stainless steel, V4A (1.4404/316L)
 Degree of Protection IP69K, IP68
 Connection M12 × 1; 4-pin
 Process Connection Clamp diameter: 50.5 mm
 Process Connection Length (PCL) 49 mm
 Probe Length (PL) 32 mm
 Output Analog output flow yes
 IO-Link yes
 PNP NO yes
 Adjustable parameters Output, Analog Output, Push-pull, NPN, PNP, Analog output, 0...10 V, 4...20 mA
 Circuit NC, NC/NO, NO
 Other parameters 2 switching points
