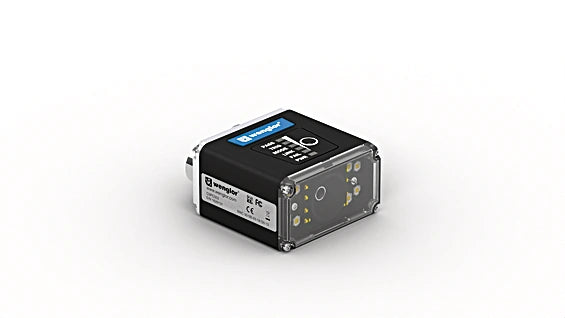

C5PC111 - Versatile 1D/2D Scanner for Omnidirectional Code Reading

C5PC111 - Versatile 1D/2D Scanner for Omnidirectional Code Reading

SKU: C5PC111 Download PDF

Variant:
  • C5PC111 - Versatile 1D/2D Scanner for Omnidirectional Code Reading
Now $29.20
BEFORE   $0.00 Now $29.20
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience seamless scanning with these versatile 2D code scanners, engineered for omnidirectional detection of both 1D and 2D codes They are compatible with a wide range of code formats, including: - **1D Codes**: Code39, Code93, Code128, UPC/EAN, BC412, Interleaved 2 of 5, Codabar, Postal Codes, and Pharmacode - **2D Codes**: DataMatrix ECC 0200, PDF417, Micro PDF417, QR-Code, Micro QR-Code, Aztec Code, GS1 Databar, and Dot code.

For added versatility, additional code types can be accommodated upon request These scanners are perfect for businesses seeking efficiency and accuracy in their scanning needs.

Features and Benefits:

    •Auto-button function.

    •Integrated LED illumination.

    •Integrated code reconstruction.

    •PROFINET and EtherNet/IP support.

Specifications:

 Optical Data
 Barcode Density High density
 Read Range 50 ... 300 mm
 Resolution 1,280 × 960 Pixel
 Resolution (MP) 1.2 MP
 Focal distance 7.7 mm
 Pixel Size 3.75 × 3.75 µm
 Light Source Red Light
 Wavelength 617 nm
 Focus Autofocus
 min. Resolution > 0.064 mm
 Environmental conditions
 Temperature Range 0 ... 45 °C
 Atmospheric humidity 5...95%, non-condensing
 Electrical Data
 Supply Voltage 5 ... 30 V DC
 Current Consumption (Ub = 24 V) 180 mA
 Scan Rate 42 scans/sec
 Switching Output Optoisolator
 Number of Switching Outputs 3
 Switching Output / Switching Current < 100 mA
 Reverse Polarity Protection yes
 Interface RS-232/Ethernet
 Trigger Input Optoisolator
 Signal Input Optoisolator
 Number of Signal Inputs 3
 Mechanical Data
 Setting Method Ethernet
 Housing Material Aluminum, anodised
 Optic Cover Plastic, PMMA
 Degree of Protection IP65/IP67
 UL Enclosure Type 1
 Connection M12 × 1; 12-pin
 Type of Connection Ethernet M12 × 1; 8-pin
 Minimum object distance 50 mm
 Output PNP NO / NC switchable yes
 NPN NO / NC switchable yes
 Ethernet yes
 PROFINET-I/O, CC-B yes
 EtherNet/IP yes
