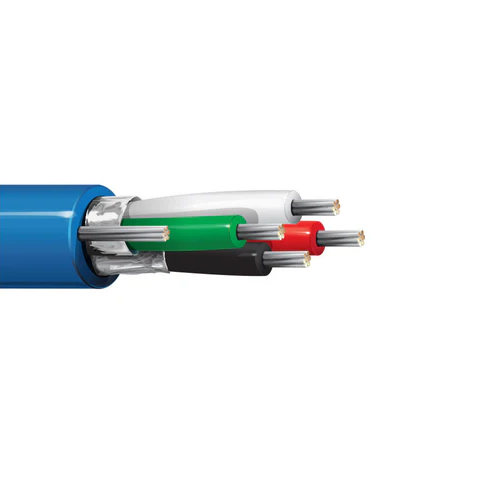

Belden 8723SB 22 AWG 2 Pair 7x30 Stranding Tinned Copper 300V Audio and Instrumentation Cable

Description:-

Audio and Instrumentation, 22 AWG stranded (7x30) tinned copper conductors, twisted pairs, polypropylene insulation, individually shielded with 100% Beldfoil shield (100% coverage), 24 AWG stranded tinned copper drain wire, LSZH jacket.

Insulation:-

• Material: PP - Polypropylene
• Nom. Thickness: 0.009 in (0.23 mm)
• Nom. Insulation Diameter: 0.046 in (1.2 mm)

Inner Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Outer Jacket:-

• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Nom. Thickness: 0.034 in (0.86 mm)
• Nom. Diameter: 0.196 in (4.98 mm)

Standards:-

• UL Voltage Rating: 300 V (CMG-LS)
• Nom. Characteristic Impedance: 45 Ohm
• Operating Temperature Range: -30°C to +105°C

Applications:-

• shipboard applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Specifications:-

• Size (AWG): 22
• No. of Pair: 2
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 8723SB
