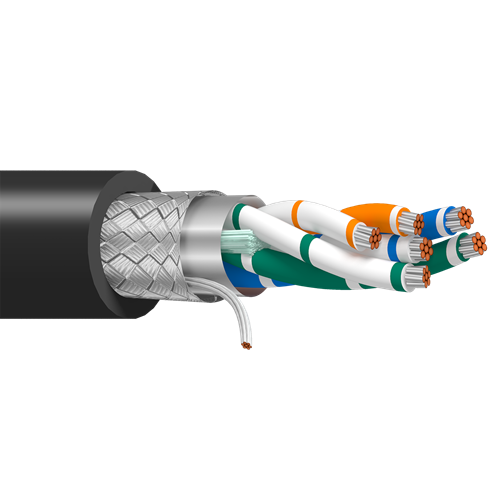

Belden 3108A 22 AWG 3 Pair 7x30 Stranding Tinned Copper 300V Multi-Pair Cable

Description:

RS-485, 3 Pair 22 AWG (7x30) Tinned Copper, PE Insulation, Overall Beldfoil+Tinned Copper Braid (65%) Shield, PVC Outer Jacket, CM, PLTC, and oil-resistant.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.023 in (0.58 mm)
• Nom. Insulation Diameter: 0.075 in (1.9 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC - Tinned Copper

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 65%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.053 in (1.3 mm)
• Nom. Diameter: 0.374 in (9.50 mm)
• Overall Cable Diameter (Nominal): 0.374 in (9.50 mm)

Standards:

• Voltage Rating: 300 V (CM, PLTC
• Operating Temperature: -20°C to +60°C
• Nom. Characteristic Impedance: 120 Ohms

Applications:

• harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.

Specifications:

• Size (AWG): 22
• No. of Pair: 3
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 3108A
