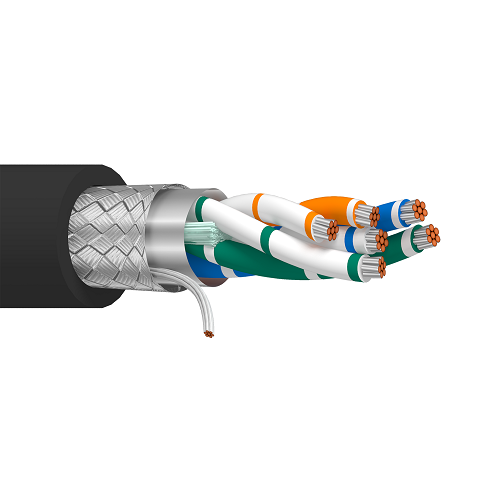

Belden 3108Z 22 AWG 3 Pair 7x30 Stranding Tinned Copper 300V MarineTuff RS-485 Cable

Description:-

MarineTuff RS-485, 3 Pair 22 AWG (7x30) Tinned Copper, PE Insulation, Overall Beldfoil+Tinned Copper Braid (65%) Shield, LSZH-TS Outer Jacket, CMG, PLTC, ABS (21-2090759-PDA-DUP).

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.023 in (0.58 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC  - Tinned Copper

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 65%

Outer Jacket:-

• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant, Thermoset)
• Nom. Thickness: 0.100 in (2.54 mm)
• Nom. Diameter: 0.468 in (11.9 mm)
• Overall Cable Diameter (Nominal): 0.468 in (11.9 mm)

Standards:-

• UL Voltage Rating: 300 V (CMG, PLTC)
• Nom. Characteristic Impedance: 120 Ohm
• Operating Temperature Range: -20°C to +75°C

Applications:-

• Harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.

Specifications:-

• Size (AWG): 22
• No. of Pairs: 3
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 3108Z
