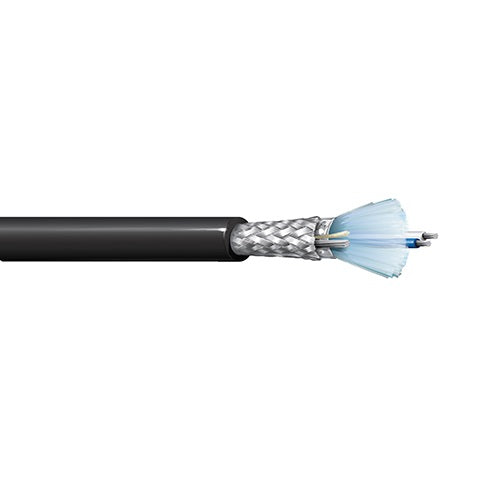

Belden 3105T 22 AWG 1 Pair 7x30 Stranding Tinned Copper 300V MarineTuff RS-485 Cable

Description:-

MarineTuff RS-485, 120 Ohm, 1 pair 22 AWG (7x30) tinned copper Datalene insulation, Overall Foil + 65% Tinned Copper Braid, LSZH jacket, CMG-ST1, PLTC, SUN RES, ABS (21-2090759-PDA-DUP).

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.029 in (0.74 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC  - Tinned Copper

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 65%

Outer Jacket:-

• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Nom. Thickness: 0.125 in (3.18 mm)
• Nom. Diameter: 0.450 in (11.4 mm)
• Overall Cable Diameter (Nominal): 0.450 in (11.4 mm)

Standards:-

• Nom. Characteristic Impedance: 120 Ohm
• UL Voltage Rating: 300 V (CMG-ST1, PLTC)
• Operating Temperature Range: -20°C to +60°C

Applications:-

• NFPA 130, harsh environment, IIoT, factory or process automation, video, audio, data communication, etc., Transit

Specifications:-

• Size (AWG): 22
• No. of Pairs: 1
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 3105T
