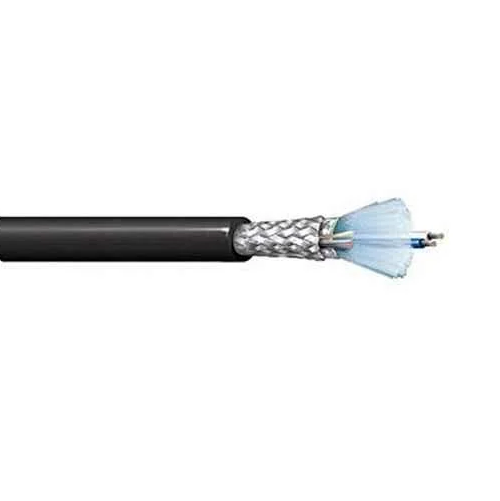

Belden 123107A 22 AWG 2 Pair 7x30 Stranding RS485 AIA Armor 300V Multi Conductor Cable

Description:

RS-485, 2 Pair 22 AWG (7x30) Tinned Copper, PE Insulation, Overall Beldfoil+Tinned Copper Braid (65%) Shield, PVC Inner Jacket, Aluminum Interlock Armor, PVC Outer Jacket, CM, PLTC.

Insulation:

• Material: PE - Polyethylene (Foam)
• Thickness: 0.025 in

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 65%

• Overall Beldfoil shield (100% coverage) plus a tinned copper braid shield (65% coverage), and a drain wire.

Inner Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.350 in

Armor:

Armor Type and Material: AIA - Aluminum Interlock Armor

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Thickness: 0.050 in
• Nom. Diameter: 0.704 in
• Overall Cable Diameter (Nominal): 0.704 in

Standards:

• Voltage Rating: 300 V (CM, PLTC)
• Operating Temperature: -40°C To +60°C

Applications:

• exposure to rodent, crush, or cut through force, burial, serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, outdoor such as solar, lighting, etc.
