Belden 7205A 24 AWG 1 Pair 41x40 Stranding Bare Copper 300V MachFlex Cable

Description:-

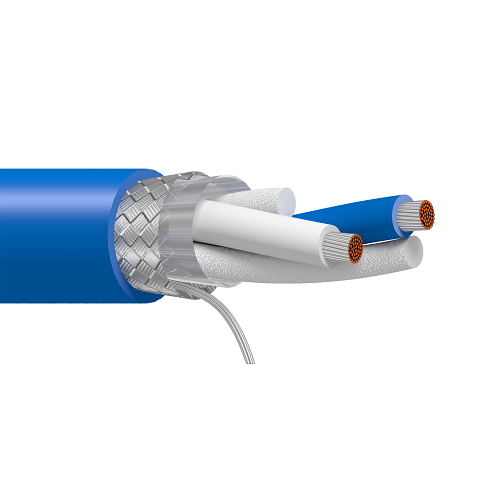

MachFlex for High Flex, 1 Pair 24 AWG (41x40) Bare Copper, PO Insulation, Overall Beldfoil+Tinned Copper Braid (85%) Shield, PVC Outer Jacket, CM.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.0555 in (1.41 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.045 in (1.1 mm)
• Nom. Diameter: 0.232 in (5.89 mm)

Standards:-

• UL Voltage Rating: 300 V RMS
• Operating Temperature Range: -20°C To +60°C

Applications:-

• Flex Data, RS232, RS422

Specifications:-

• Size (AWG): 24
• No. of Pairs: 1
• Stranding: 41x40
• Conductor Material: BC - Bare Copper
• Part Number: 7205A
