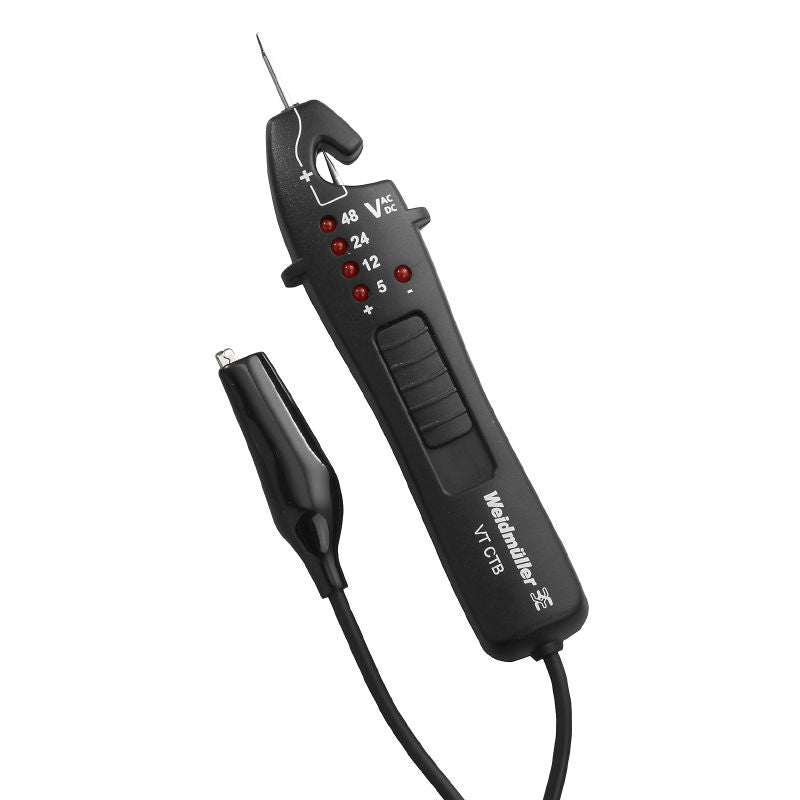

9918970000 - Compact Voltage Tester 3-48V with LED Display
9918970000 - Compact Voltage Tester 3-48V with LED Display
SKU: SKU: 9918970000 Download PDF
- 9918970000 - Compact Voltage Tester 3-48V with LED Display
- 9918970000 - Compact Voltage Tester 3-48V with LED Display
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
The VT CTB voltage tester is expertly crafted to assess voltages ranging from 3V to 48V, making it a versatile tool for both AC and DC measurements It boasts a user-friendly LED display for precise and easy-to-read results Compact in size, this device measures 137 mm x 21 mm x 19 mm and is lightweight at just 50 g, ensuring portability Adhering to RoHS regulations, it also meets safety standards EN 61010-1 and EN 61326, providing users with peace of mind while testing.
Features and Benefits:
•Measuring range for AC voltage from 3 to 48 V.
•DC voltage measuring range of up to 48 V.
•LED display for ease of use.
•Compact size with a weight of 50 g.
•Environmental compliance with RoHS and REACH.
•Protection degree IP40.
•Testing AC and DC voltage in various electrical applications.
Specifications:
| Depth | 19 mm |
| Height | 21 mm |
| Width | 137 mm |
| AC voltage measuring range | 3-48 V |
| DC voltage measuring range | 48 V |
| Frequency range, max | 65 Hz |
| Frequency range, min | 0 Hz |
| Working temperature, max | 50 °C |
| Working temperature, min | -10 °C |
| Tested and approved according to | EN 61010-1, EN 61326 |
