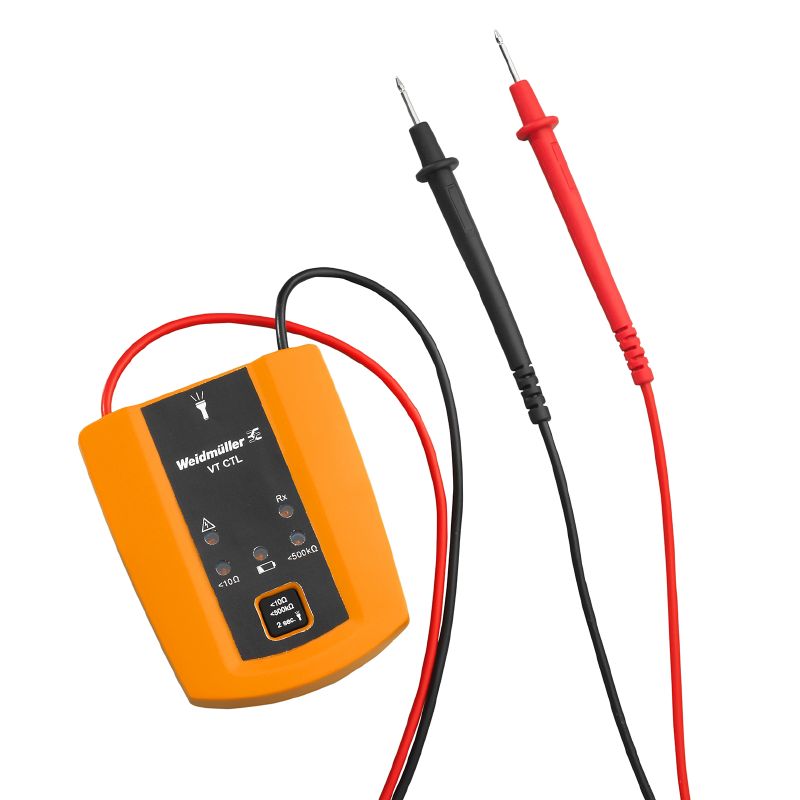

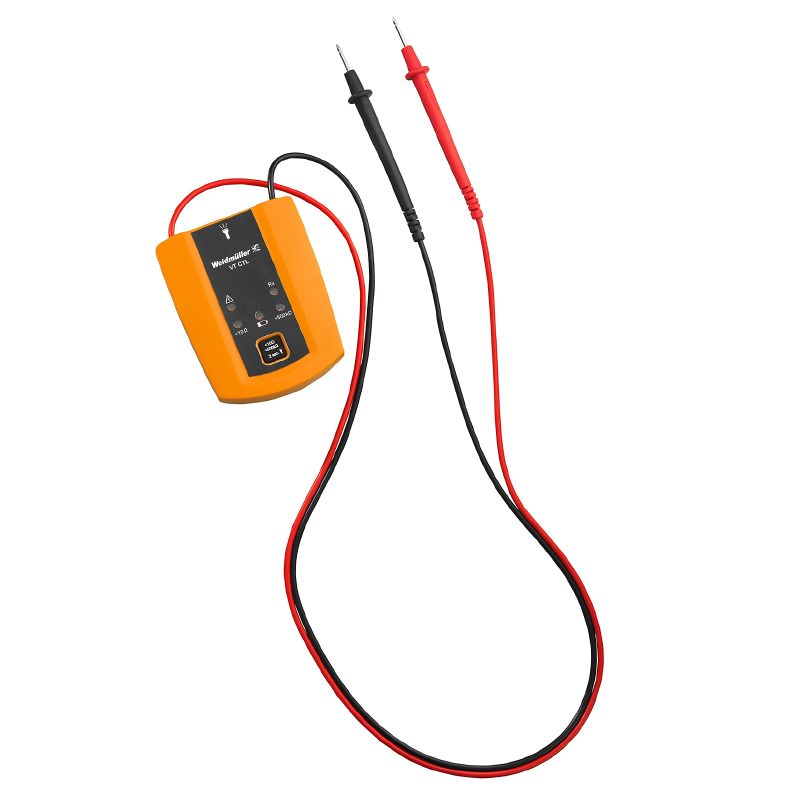

2436690000 - IP44 AC Voltage Continuity Tester with Buzzer & Visual Alerts

2436690000 - IP44 AC Voltage Continuity Tester with Buzzer & Visual Alerts

SKU: SKU: 2436690000 Download PDF

Regular price Now $49.33
Regular price BEFORE   $0.00 Sale price Now $49.33
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the VT CTL continuity tester, a versatile tool for your testing needs Capable of measuring AC voltage from 01 to 400 V, this device is powered by a single 15 V AAA battery It features both visual and audible indicators for optimal continuity testing, with a handy buzzer and clear optical display Built to withstand various conditions, the tester boasts an IP44 protection rating and meets the DIN EN 61010-1 safety standards, as well as RoHS compliance for environmental responsibility.

Features and Benefits:

    •Continuity test includes both optical and buzzer indicators.

    •Visual and acoustic display for easy monitoring.

    •Measuring range supports AC voltages from 0.1 to 400 V.

    •IP44 protection degree ensures safety in various environments.

    •Powered by 1.5 V AAA battery for convenience.

    •Testing tools and devices in electrical and electronic applications.

Specifications:

 AC voltage measuring range 0.1 - 400 V
 Battery type 1.5 V type AAA battery
 Continuity test Yes - optical + buzzer
 Display Visual & acoustic
 Protection degree IP44
 Tested and approved according to DIN EN 61010-1
 RoHS Compliance Status Compliant
 RoHS Exemption 7cI
 REACH SVHC No SVHC above 0.1 wt%
 SCIP b05b5122-6117-4cb0-b28c-df32f921fa36
 ETIM 6.0 EC000494
 ETIM 7.0 EC000494
 ETIM 8.0 EC000494
 ETIM 9.0 EC000494
 ETIM 10.0 EC000494
 ECLASS 9.0 27-20-03-08
 ECLASS 9.1 27-20-03-08
 ECLASS 10.0 27-20-03-08
 ECLASS 11.0 27-20-03-08
 ECLASS 12.0 27-20-03-08
 ECLASS 13.0 27-20-03-08
 ECLASS 14.0 27-20-03-08
 ECLASS 15.0 27-20-03-08
