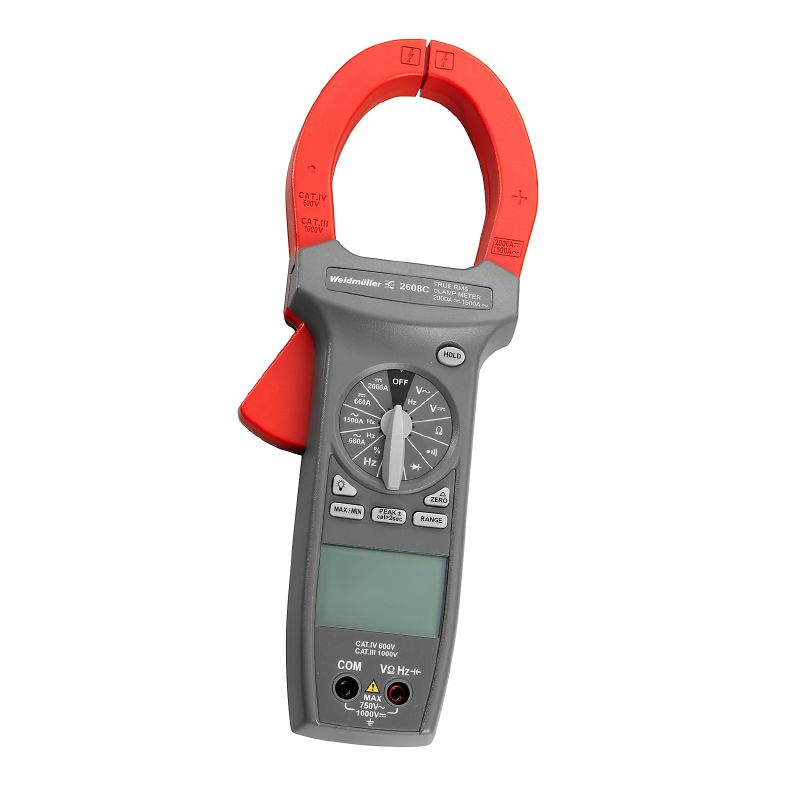

9427370000 - Digital Clamp Multimeter for 0.66-1000V, 2000A Max

9427370000 - Digital Clamp Multimeter for 0.66-1000V, 2000A Max

SKU: SKU: 9427370000 Download PDF

Regular price Now $342.13
Regular price BEFORE   $0.00 Sale price Now $342.13
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the MULTIMETER C 2608, a versatile digital clamp-on tool that meets RoHS regulations, perfect for all your electrical testing needs This device expertly measures AC voltage from 066 to 750 V and DC voltage from 066 to 1000 V, offering a wide and reliable range for various applications With the ability to measure frequencies between 1 MHz and 66 Hz, as well as capacitance from 66 nF to 6.

6 mF, this multimeter is highly functional Designed to measure currents up to an impressive 2,000 A, it also features resistance measurements ranging from 660 Ω to 66 MΩ, making it suitable for category CAT III usage Moreover, the device supports manual range selection and operates effectively within a temperature range of 0 °C to 50 °C, ensuring reliability across diverse working conditions Upgrade your electrical measurement capabilities with the MULTIMETER C 2608.

Features and Benefits:

    •Digital clamp-on device for measuring.

    •Manual selection of measuring ranges.

    •Complies with EN/IEC 61010-1 standards.

    •Min/max function applies only to DC range.

    •Suitable for various electrical measuring and testing tasks.

Specifications:

 AC voltage measuring range 0.66 - 750 V
 DC voltage measuring range 0.66 - 1000 V
 Battery type 9V block battery
 Display digital
 Frequency measurement Yes
 Frequency range, max. 66 Hz
 Frequency range, min. 1 MHz
 Measured capacitance value, max. 6.6 mF
 Measured capacitance value, min. 6.6 nF
 Measured current value, max. 2,000 A
 Measuring range category CAT III
 Opening width of current-measuring clamp-on attachment 57 mm
 Resistance measuring range, max. 66 MΩ
 Resistance measuring range, min. 660 Ω
 Resolution of AC voltage ± 0.5%
 Resolution of DC voltage ± 0.5%
 Working temperature, max. 50 °C
 Working temperature, min. 0 °C
