Description:

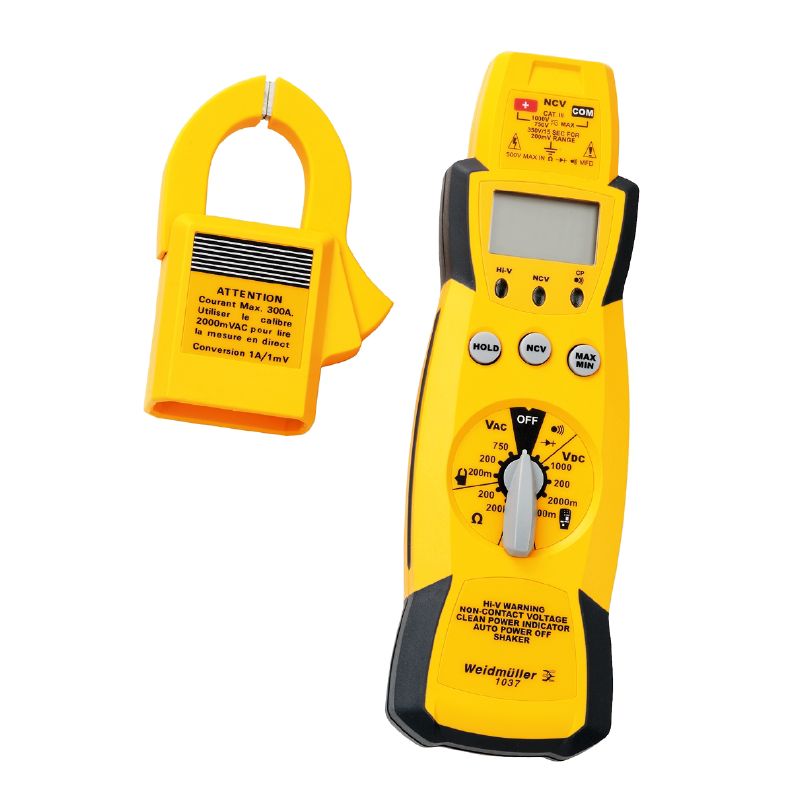

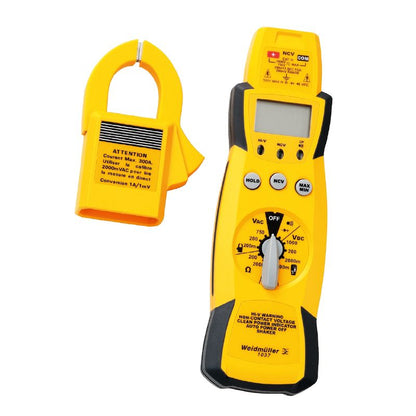

Introducing the MULTIMETER 1037, an advanced digital multimeter perfect for all your measuring and testing needs This versatile tool also functions as a clamp-on meter Crafted with a sturdy build, it meets RoHS standards for environmental safety While this product will soon be discontinued, you can still place an order until August 31, 2025 With a net weight of 880 grams, it’s both reliable and easy to handle for any technician or DIY enthusiast.
Features and Benefits:
•Includes AC voltage measuring range of 0.2 - 750 V.
•DC voltage measuring range from 0.2 - 1000 V.
•Capacitance measurement up to 200 µF.
•Maximum current measurement of 200 A.
•Resistance measuring range from 0.2 Ω to 200 kΩ.
•Manual selection of measuring range.
•Test probe included.
•Designed for operation in a temperature range of 0 °C to 50 °C.
•Ideal for various electrical measurement and testing applications.
Specifications:
| Depth | 66 mm |
| Height | 44 mm |
| Width | 214.5 mm |
| Battery type | 9V block battery |
| Frequency measurement | No |
| Frequency range, max. | 500 Hz |
| Frequency range, min. | 50 Hz |
| Opening width of current-measuring clamp-on attachment | 23 mm |
| Working temperature, max. | 50 °C |
| Working temperature, min. | 0 °C |
| Tested and approved according to | EN/IEC 61010-1 |
| Measuring range category | CAT III |
