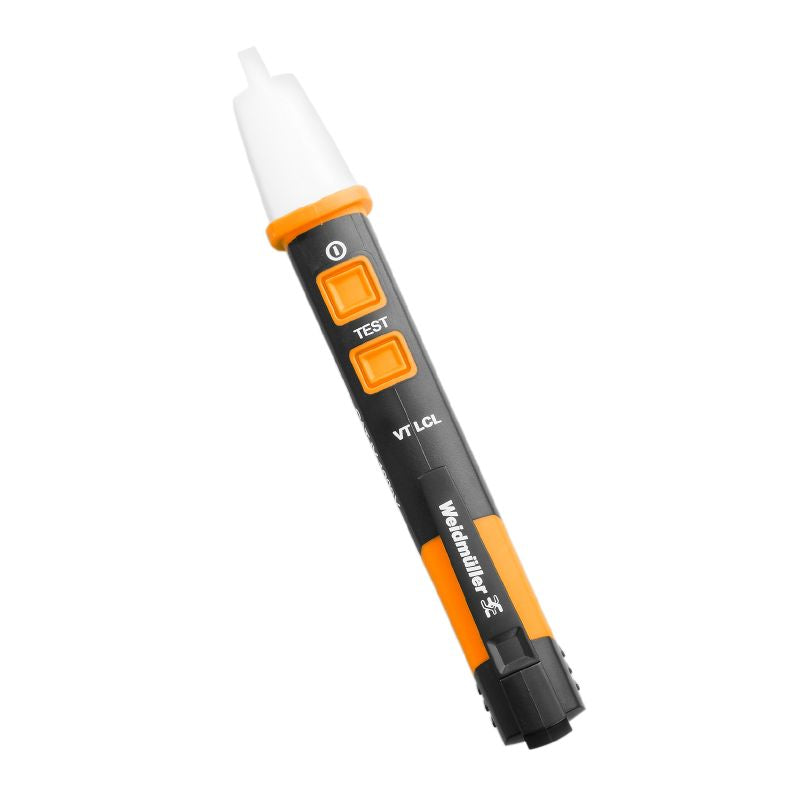

2436670000 - IP65 Non-Contact Voltage Tester for CAT IV 1000V
2436670000 - IP65 Non-Contact Voltage Tester for CAT IV 1000V
SKU: SKU: 2436670000 Download PDF
- 2436670000 - IP65 Non-Contact Voltage Tester for CAT IV 1000V
- 2436670000 - IP65 Non-Contact Voltage Tester for CAT IV 1000V
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Ensure safety and efficiency with this non-contact voltage tester, designed to meet RoHS standards This handy tool allows for the detection of cable voltage without the need for direct contact With a measurement capability of up to CAT IV 1000V, it operates on a 15V AAA battery and features both visual alerts and acoustic signals for user feedback Its IP65 protection rating ensures reliability in diverse environments.
Additionally, the device is certified under DIN EN 61010-1 and DIN EN 61326, guaranteeing its high standards of quality and safety.
Features and Benefits:
•Visual and acoustic display.
•Compliant with RoHS standards.
•Non-contact voltage detection.
•Suitable for outdoor and wet conditions due to its IP65 rating.
Specifications:
| Depth | 23 mm |
| Height | 25 mm |
| Width | 155 mm |
| Length | 155 mm |
| Net weight | 55.3 g |
| Battery type | 1.5 V type AAA battery |
| Measuring range category | CAT IV 1000 V |
| Rated voltage, max. | 1000 V AC |
| Rated voltage, min. | 12 V AC |
| Tested and approved according to | DIN EN 61010-1, DIN EN 61326 |
| ETIM 6.0 | EC000494 |
| ECLASS 9.0 | 27-20-03-08 |
