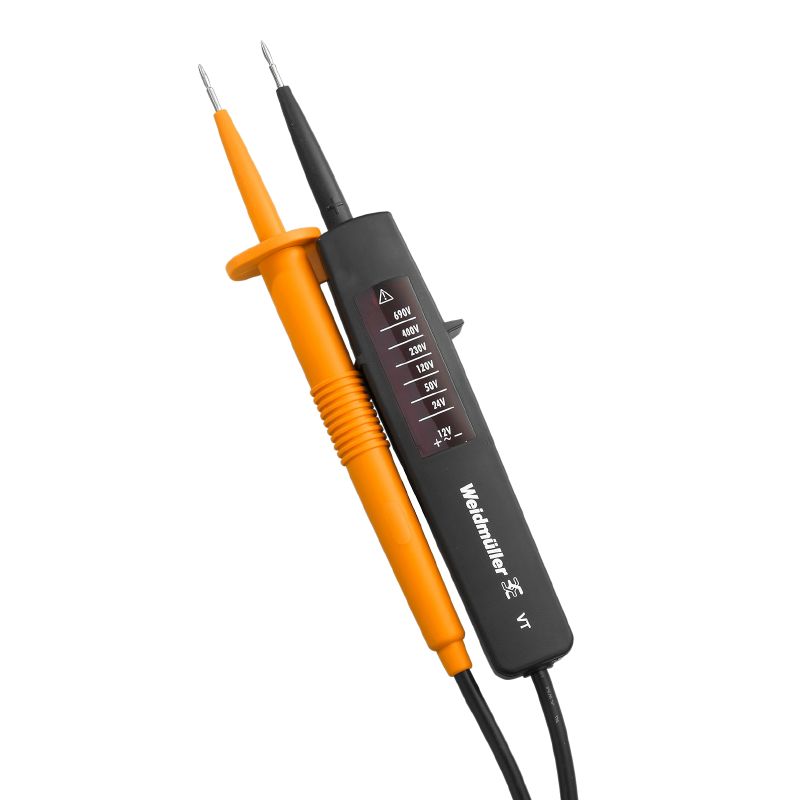

9918950000 - Dual Voltage Tester 12-690V, 190mm x 55mm Durable Design
9918950000 - Dual Voltage Tester 12-690V, 190mm x 55mm Durable Design
SKU: SKU: 9918950000 Download PDF
- 9918950000 - Dual Voltage Tester 12-690V, 190mm x 55mm Durable Design
- 9918950000 - Dual Voltage Tester 12-690V, 190mm x 55mm Durable Design
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a versatile voltage tester that accurately measures voltages from 12V to 690V With an easy-to-read AC voltage display offering settings at 12V, 50V, 120V, 230V, 400V, and 690V, this device meets your electrical testing needs Additionally, it is equipped to handle DC voltage up to 1000V and boasts a peak voltage resistance of 5kV, ensuring it meets rigorous safety standards Built to endure challenging environments, this tester operates effectively in temperatures ranging from -15°C to 55°C, making it a reliable tool for any situation.
Features and Benefits:
•Voltage display for both AC and DC systems.
•LED display for easy reading.
•Compliance with EN/IEC 61010 and EN 61243-3 2010 standards.
•IP64 protection for enhanced durability.
Specifications:
| AC voltage measuring range | 12-690 V |
| DC voltage measuring range | 1000 V |
| Measuring range category | CAT III 600 V, CAT IV 300 V |
| Insulation test | 5 kV |
| Protection degree | IP64 |
| Rated voltage, max | 690 V AC/DC |
| Rated voltage, min | 12 V AC/DC |
| Working temperature, max | 55 °C |
| Working temperature, min | -15 °C |
| Dimensions | 190 mm x 55 mm x 21 mm |
