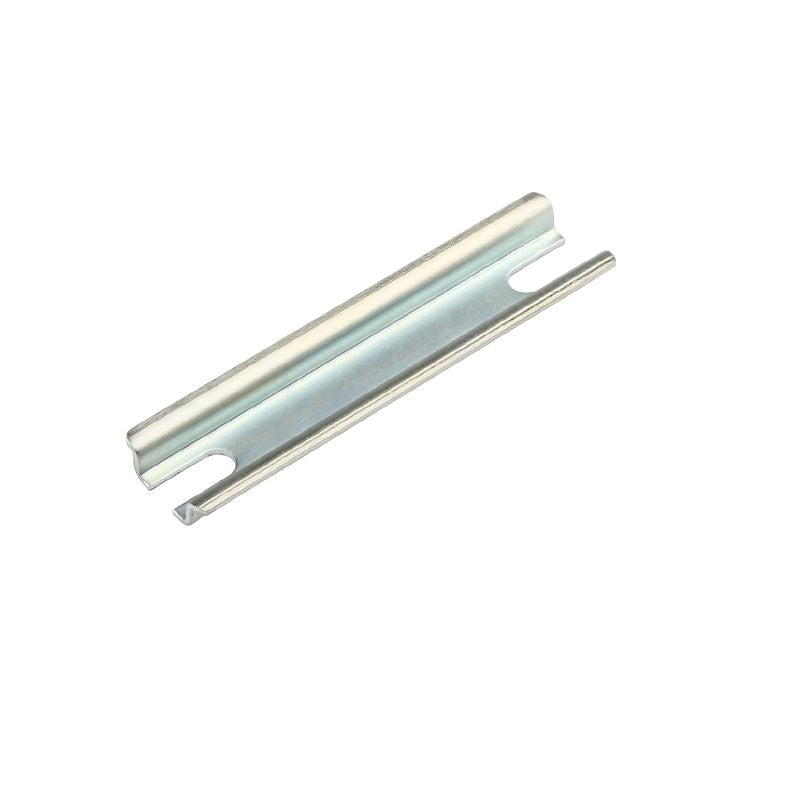

8898030000 - 106mm Steel Slot Component with Zinc Plating (Pack of 20)
8898030000 - 106mm Steel Slot Component with Zinc Plating (Pack of 20)
SKU: SKU: 8898030000 Download PDF
- 8898030000 - 106mm Steel Slot Component with Zinc Plating (Pack of 20)
- 8898030000 - 106mm Steel Slot Component with Zinc Plating (Pack of 20)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the TS 15 series product, measuring 106 mm in width Crafted from durable steel, this item boasts galvanic zinc plating along with passivation for enhanced longevity It is identified by the order number 8898030000, making it easy to reference Perfect for those seeking reliability and strength in their materials.
Features and Benefits:
•Compliant with RoHS standards without exemptions.
•REACH SVHC does not contain any substances above 0.1 wt%.
•Manufactured from steel with a material thickness of 1 mm.
•Galvanic zinc plated and passivated surface finishes.
Specifications:
| Depth | 5.5 mm |
| Depth (inches) | 0.217 inch |
| Height | 15 mm |
| Height (inches) | 0.591 inch |
| Width | 106 mm |
| Width (inches) | 4.173 inch |
| Net weight | 22 g |
| Basic material | Steel |
| Surface finish | galvanic zinc plated and passivated |
| Standards | DIN EN 60715 |
| ETIM 6.0 | EC001285 |
| ETIM 7.0 | EC001285 |
| ETIM 8.0 | EC001285 |
| ETIM 9.0 | EC001285 |
| ETIM 10.0 | EC001285 |
| ECLASS 9.0 | 27-40-06-02 |
| ECLASS 10.0 | 27-40-06-02 |
| ECLASS 11.0 | 27-40-06-02 |
| ECLASS 12.0 | 27-40-06-02 |
| ECLASS 13.0 | 27-40-06-02 |
| ECLASS 14.0 | 27-40-06-02 |
| ECLASS 15.0 | 27-40-06-02 |
