Description:

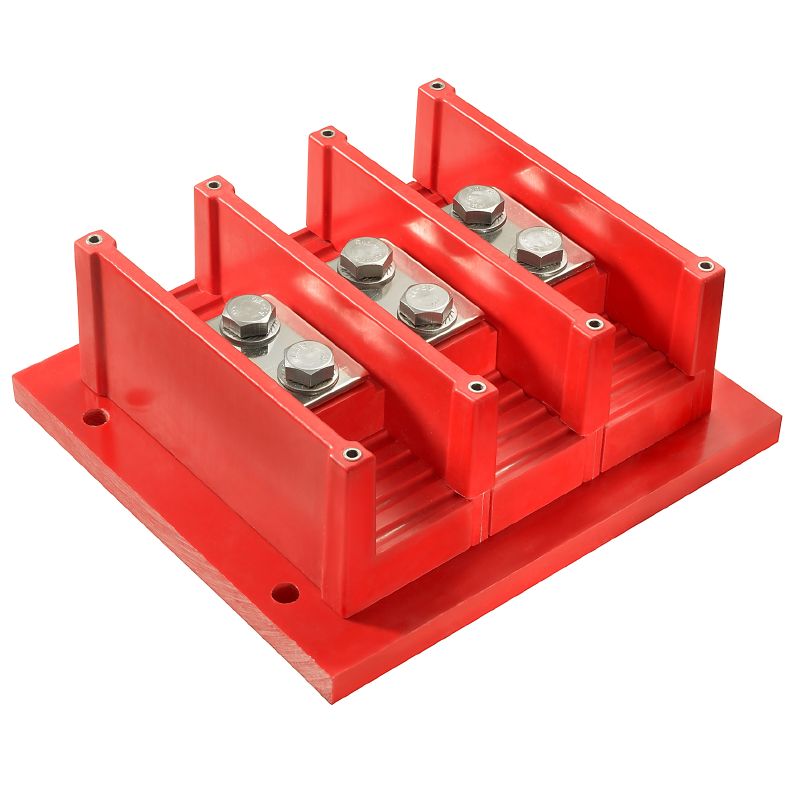

Introducing the HV2700/3-M12 F, a versatile component featuring bolt-type screw terminals for reliable feed-through connections across a variety of applications This product fully adheres to RoHS regulations without any exemptions, making it an excellent choice for environmentally-friendly projects With compact dimensions of 90 mm in depth, 220 mm in height, and 240 mm in width, it delivers efficiency in a small footprint.
Features and Benefits:
•Mounting plate requires no end cover plate.
•Compliant with RoHS regulations.
•Rated operating temperature ranges from -50 °C to 140 °C.
Specifications:
| Order No. | 2540690000 |
| GTIN (EAN) | 4050118554373 |
| Continuous operating temp. min. | -50 °C |
| Continuous operating temp. max. | 140 °C |
| Number of potentials | 3 |
| Number of levels | 1 |
| Clamping range, bolted connection, max. | 185 mm² |
| Clamping range, bolted connection, min. | 10 mm² |
| Connection direction | on side |
| Number of connections | 6 |
| Tightening torque, max. | 35 Nm |
| Tightening torque, min. | 33 Nm |
| Rated cross-section | 185 mm² |
| Rated voltage | 2,700 V |
| Nominal current | 600 A |
| Rated impulse withstand voltage | 25 kV |
| Pollution severity | 3 |
