1928110000 - 105mm Galvanized Steel Rail for TS 35 x 7.5 Standard
1928110000 - 105mm Galvanized Steel Rail for TS 35 x 7.5 Standard
SKU: SKU: 1928110000 Download PDF
- 1928110000 - 105mm Galvanized Steel Rail for TS 35 x 7.5 Standard
- 1928110000 - 105mm Galvanized Steel Rail for TS 35 x 7.5 Standard
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

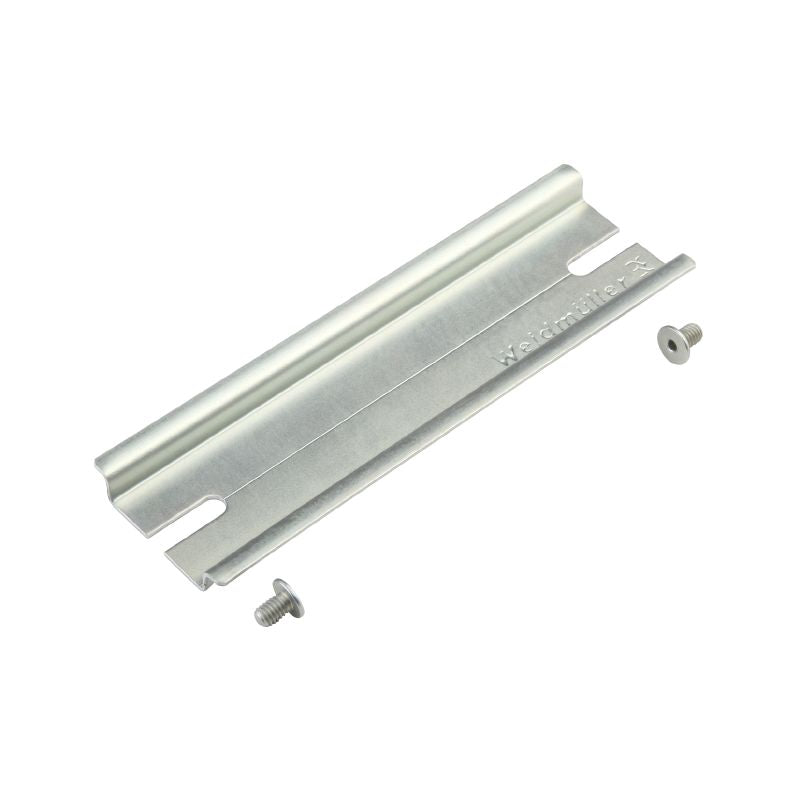

Introducing the TS35 POK4 SET, a meticulously crafted rail tailored to the TS 35 x 75 standard With a generous width of 105 mm, this rail is made from durable galvanized steel and features an attractive chromium-plated finish Designed without a slot, it complies with RoHS regulations, ensuring it meets safety and environmental standards Perfect for your structural needs, this rail combines functionality and quality seamlessly.
Features and Benefits:
•Direct mounting installation.
•Screwed integral fixing.
•Material thickness of 1 mm.
•Compliant without exemption with RoHS.
•No SVHC above 0.1 wt% as per REACH regulations.
•Galvanized and chromium-plated surface finish.
Specifications:
| Depth | 7.5 mm |
| Depth (inches) | 0.295 inch |
| Height | 35 mm |
| Height (inches) | 1.378 inch |
| Width | 105 mm |
| Width (inches) | 4.134 inch |
| Basic material | Steel |
| Standards | DIN EN 60715 |
| Stamp dimensions | 6.3 x 20 mm |
| ETIM 6.0 | EC001285 |
| ETIM 7.0 | EC001285 |
| ETIM 8.0 | EC001285 |
| ETIM 9.0 | EC001285 |
| ETIM 10.0 | EC001285 |
| ECLASS 9.0 | 27-40-06-02 |
| ECLASS 9.1 | 27-40-06-02 |
| ECLASS 10.0 | 27-40-06-02 |
| ECLASS 11.0 | 27-40-06-02 |
| ECLASS 12.0 | 27-40-06-02 |
| ECLASS 13.0 | 27-40-06-02 |
| ECLASS 14.0 | 27-40-06-02 |
| ECLASS 15.0 | 27-40-06-02 |
