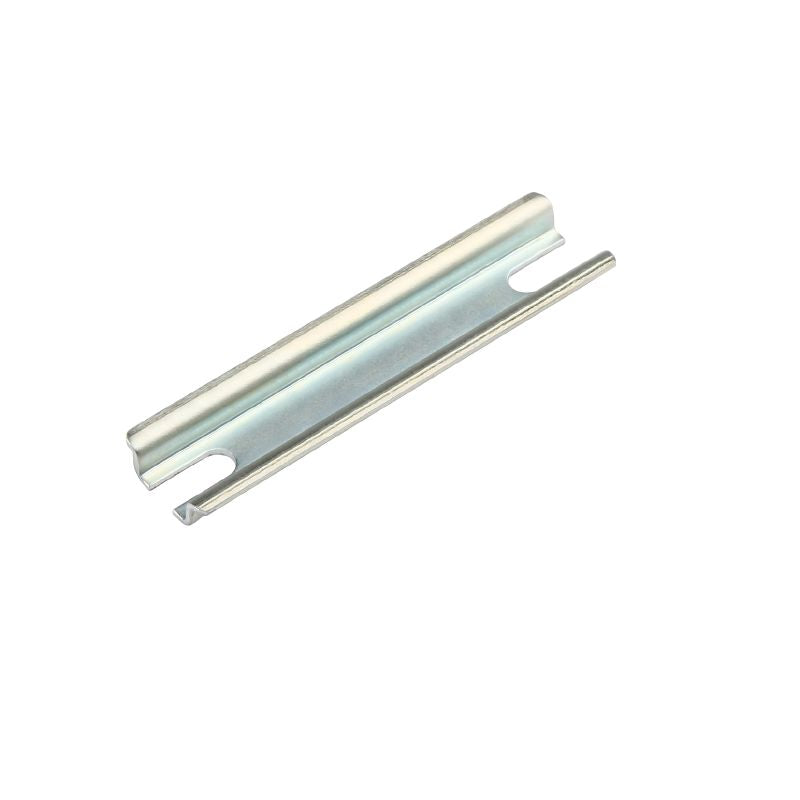

1567780000 - 64mm Steel Rail with Galvanic Zinc Finish, 1mm Thick
1567780000 - 64mm Steel Rail with Galvanic Zinc Finish, 1mm Thick
SKU: SKU: 1567780000 Download PDF
- 1567780000 - 64mm Steel Rail with Galvanic Zinc Finish, 1mm Thick
- 1567780000 - 64mm Steel Rail with Galvanic Zinc Finish, 1mm Thick
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
This rail, constructed from durable steel, boasts a width of 64 mm and features a galvanic zinc plating with passivation for enhanced corrosion resistance It is designed for straightforward mounting and maintains a standard thickness of 1 mm, making it a reliable choice for various applications.
Features and Benefits:
•Compliant with RoHS without exemptions.
•Direct mounting installation.
•Galvanic zinc plated and passivated surface finish.
Specifications:
| Depth | 5.5 mm |
| Height | 64 mm |
| Width | 64 mm |
| Material thickness | 1 mm |
| Stamp dimensions | 4.5 x 20 mm |
| Basic material | Steel |
| GTIN (EAN) | 4008190205898 |
| ETIM 6.0 | EC001285 |
| ETIM 7.0 | EC001285 |
| ETIM 8.0 | EC001285 |
| ETIM 9.0 | EC001285 |
| ETIM 10.0 | EC001285 |
| ECLASS 9.0 | 27-40-06-02 |
| ECLASS 9.1 | 27-40-06-02 |
| ECLASS 10.0 | 27-40-06-02 |
| ECLASS 11.0 | 27-40-06-02 |
| ECLASS 12.0 | 27-40-06-02 |
| ECLASS 13.0 | 27-40-06-02 |
| ECLASS 14.0 | 27-40-06-02 |
| ECLASS 15.0 | 27-40-06-02 |
