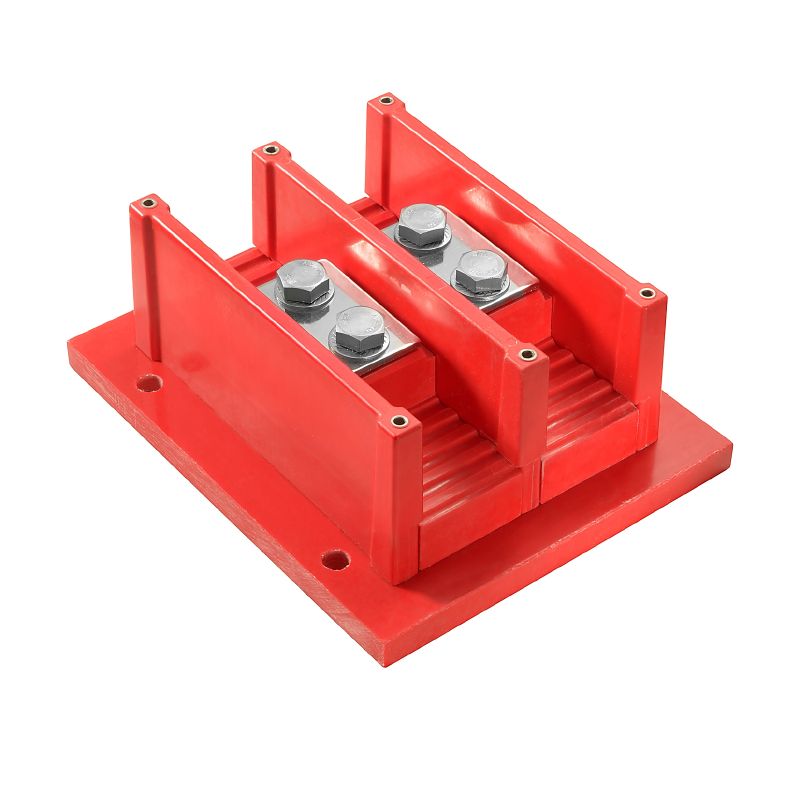

2540680000 - HV2700/2-M12 F RoHS-Compliant Feed-Through Terminal Connector

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the HV2700/2-M12 F, a versatile component featuring bolt-type screw terminals, ideal for feed-through applications requiring a secure screw connection This unit is RoHS compliant, ensuring it meets environmental standards Built robustly, it is well-suited for various settings, providing reliable performance wherever it's used.

Features and Benefits:

•Depth: 90 mm.

•Height: 220 mm.

•Width: 180 mm.

•Diameter: 11 mm.

•Net weight: 3,300 g.

•Continuous operating temperature range: -50 °C to 140 °C.

•Material color: red.

•UL 94 flammability rating: V-0.

•Number of potentials: 2.

•Number of levels: 1.

•Number of connections: 4.

•Type of connection: Screw connection.

•Rated voltage: 2,700 V.

•Nominal current: 600 A.

•Rated impulse withstand voltage: 25 kV.
