Description:

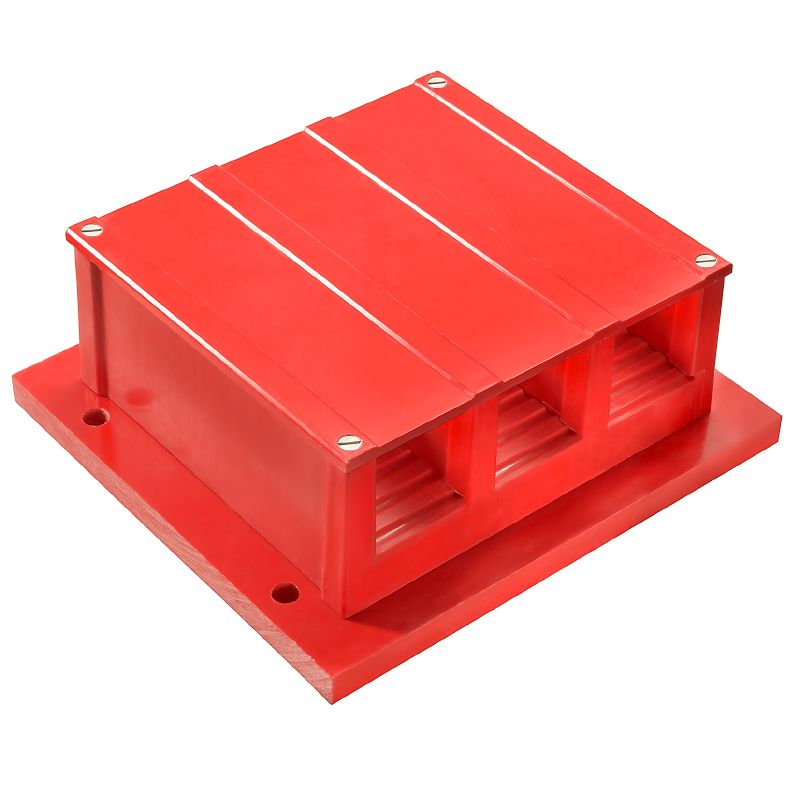

Introducing the HV4000/3-M12 F, a reliable component engineered for secure connections through its bolt-type screw terminals and feed-through capability Built to meet RoHS standards, it's ideal for various applications that demand sturdy electrical connections This unit boasts a robust construction, withstanding temperatures ranging from -50 °C to a maximum of 140 °C Weighing in at 4,900 grams, it has been rigorously tested to comply with diverse environmental standards, assuring its performance in harsh conditions.
Features and Benefits:
•Compliant without exemption to RoHS standards.
•Supports three potential connections.
•Can handle cable lugs from 10 mm² to 240 mm².
•Utilizes M12 for screw connections.
•Compatible with EN 45545-2:2020 and other fire protection ratings.
Specifications:
| Dimensions | {'Depth': '96.1 mm', 'Height': '220 mm', 'Width': '240 mm', 'Diameter': '11 mm'} |
| Continuous operating temperature | {'min': '-50 °C', 'max': '140 °C'} |
| Clamping range | {'max': '240 mm²', 'min': '10 mm²'} |
| Rated voltage | 4,000 V |
| Nominal current | 600 A |
| Rated impulse withstand voltage | 30 kV |
| Tightening torque | {'max': '65 Nm', 'min': '63 Nm'} |
| Number of connections | 6 |
| Standards | EN 45545-2:2020, NFPA 130 ASTME 162/662, BSS 7239/7242 |
| Wire connection cross section AWG | {'max': 'kcmil 500', 'min': 'AWG 6'} |
