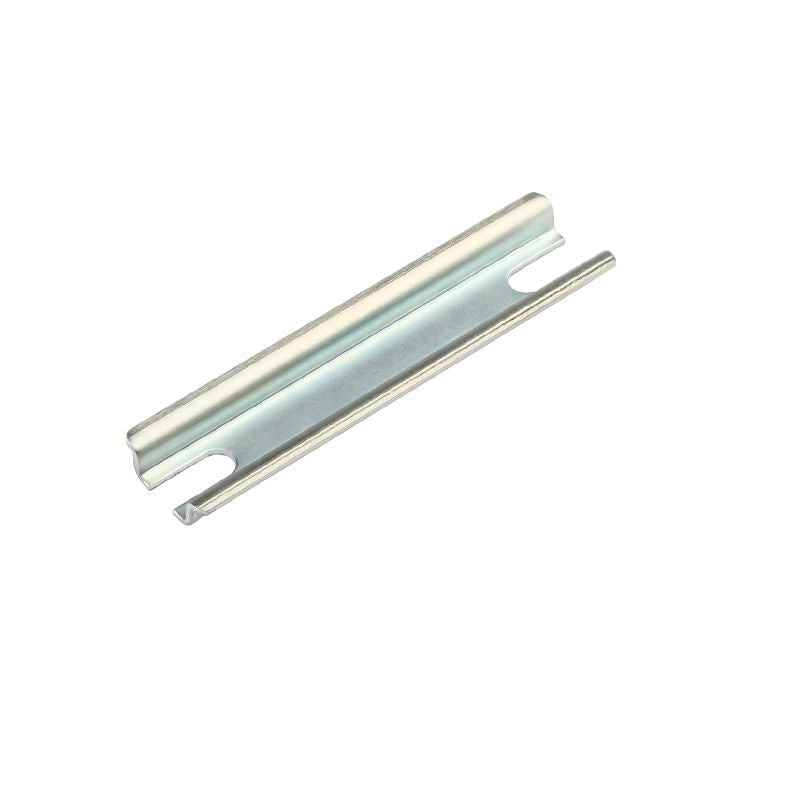

1928060000 - 68mm Steel Rail, Galvanized, Slotless, Direct Mount
1928060000 - 68mm Steel Rail, Galvanized, Slotless, Direct Mount
SKU: SKU: 1928060000 Download PDF
- 1928060000 - 68mm Steel Rail, Galvanized, Slotless, Direct Mount
- 1928060000 - 68mm Steel Rail, Galvanized, Slotless, Direct Mount
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Discover the TS15 68 KLIPPON POK1 CSS steel rail, an exceptional solution measuring 68 mm in width, purposely designed without a slot for enhanced versatility Crafted from durable galvanized and chromium-plated steel, it meets RoHS compliance standards for safety With dimensions of 75 mm in depth and 15 mm in height, this rail is ideal for direct installation and can be easily affixed with screws, making it a reliable choice for a variety of applications.
Features and Benefits:
•Made from galvanized, chromium-plated steel.
•Compliant with RoHS without exemptions.
•Direct mounting with screwed integral fixing.
•DIN EN 60715 standard.
•Material thickness of 1 mm.
Specifications:
| Depth: | 7.5 mm |
| Depth (inches): | 0.295 inch |
| Height: | 15 mm |
| Height (inches): | 0.591 inch |
| Width: | 68 mm |
| Width (inches): | 2.677 inch |
| Net weight: | 13 g |
| Basic material: | Steel |
| Stamp dimensions: | 4.5 x 20 mm |
| Material thickness: | 1 mm |
| ETIM 6.0: | EC001285 |
| ETIM 7.0: | EC001285 |
| ETIM 8.0: | EC001285 |
| ETIM 9.0: | EC001285 |
| ETIM 10.0: | EC001285 |
| ECLASS 9.0: | 27-40-06-02 |
| ECLASS 9.1: | 27-40-06-02 |
| ECLASS 10.0: | 27-40-06-02 |
| ECLASS 11.0: | 27-40-06-02 |
| ECLASS 12.0: | 27-40-06-02 |
| ECLASS 13.0: | 27-40-06-02 |
| ECLASS 14.0: | 27-40-06-02 |
| ECLASS 15.0: | 27-40-06-02 |
