8000004218 - KLIPPON K5 Terminal Box, 170mm x 130mm x 90mm, IP66/IP67
8000004218 - KLIPPON K5 Terminal Box, 170mm x 130mm x 90mm, IP66/IP67
SKU: SKU: 8000004218 Download PDF
- 8000004218 - KLIPPON K5 Terminal Box, 170mm x 130mm x 90mm, IP66/IP67
- 8000004218 - KLIPPON K5 Terminal Box, 170mm x 130mm x 90mm, IP66/IP67
Couldn't load pickup availability
Description:

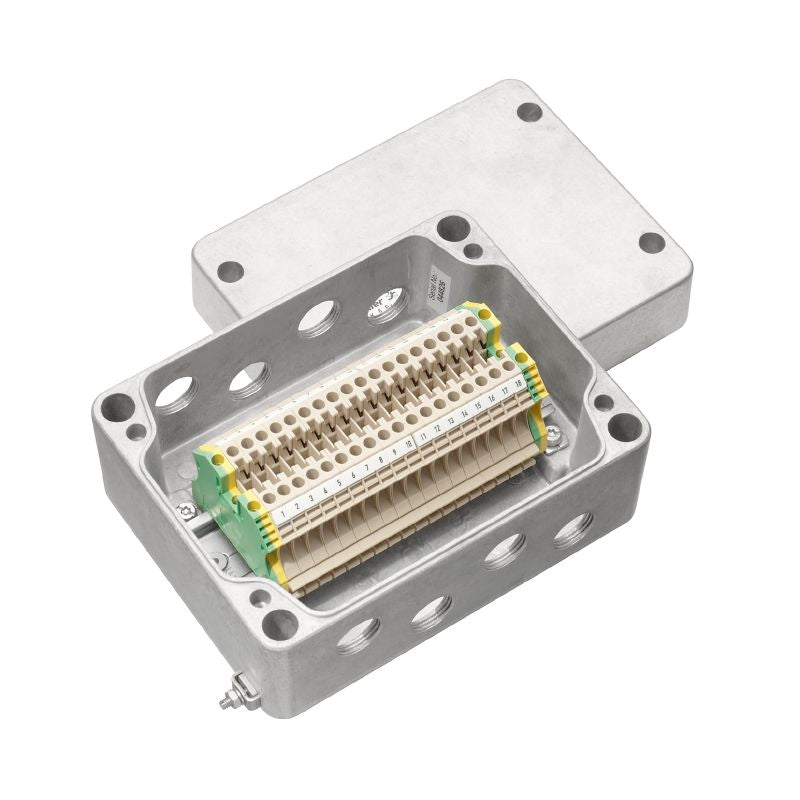

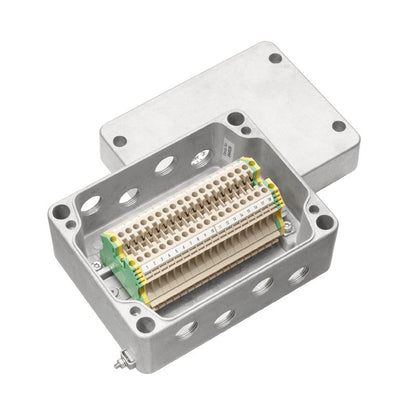

Introducing the KLIPPON K5 4M20WCSS EX terminal box, specifically engineered for use in hazardous settings categorized as ATEX II 2GD T85°C Ex e II T6 This robust enclosure features openings on each side that can accommodate four M20x15 connectors, allowing for versatile installation options Constructed from untreated aluminum (AlSi12), it combines strength with compliance to RoHS standards With dimensions of 170 mm in width, 130 mm in height, and 90 mm in depth, this terminal box weighs 1765 grams.
Boasting an IP66 and IP67 rating, it provides excellent protection against dust and water exposure, making it a reliable choice for challenging environments.
Features and Benefits:
•Compliant with RoHS without exemptions.
•No SVHC present above 0.1 wt%.
•Suitable for hazardous area applications.
•IP66 and IP67 protection grades.
•Hazardous environments.
•Industrial applications requiring ATEX certification.
Specifications:

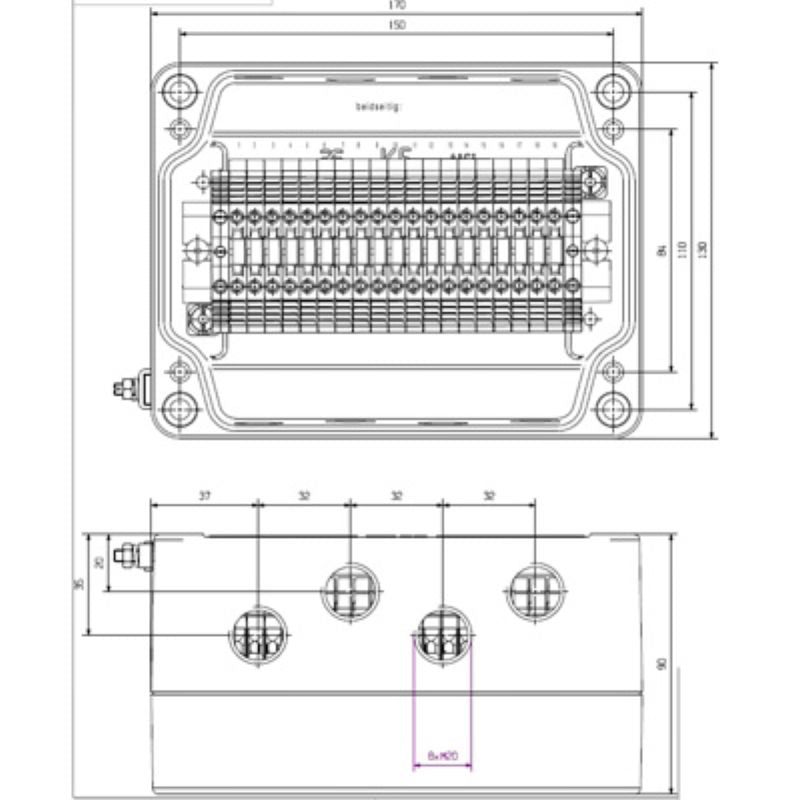

| Depth: | 90 mm (3.543 inch) |
| Height: | 130 mm (5.118 inch) |
| Width: | 170 mm (6.693 inch) |
| Net weight: | 1,765 g |
| Basic material: | Aluminium AlSi12 |
| Surface finish: | untreated |
| Protection degree: | IP66, IP67 |
| Certificate no. Terminal Box (ATEX): | IBExU12ATEX1145 X |
| Certificate no. Terminal Box (IECEx): | IECEx IBE 13.0002X |
| Version: | ATEX II 2GD T85°C Ex e II T6 |
