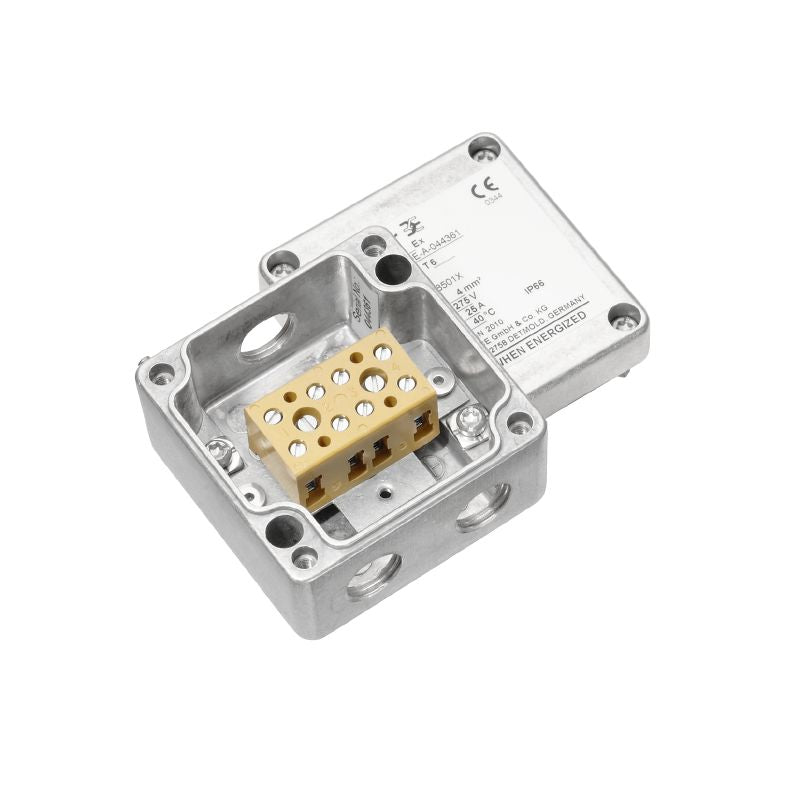

8000004202 - IP66 Rated M16 Terminal Box, Untreated Aluminium, 45mm Depth

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the KLIPPON K1 M16BCSS EX terminal box, expertly crafted to meet ATEX II 2G Ex e IIC T6 standards This box offers excellent cable management capabilities with one M16x15 opening on side A and two additional M16x15 openings on side B With an impressive protection rating of IP66 and IP67, it guards against both dust and water effectively Made from untreated aluminium AlSi12, this terminal box is built to last.

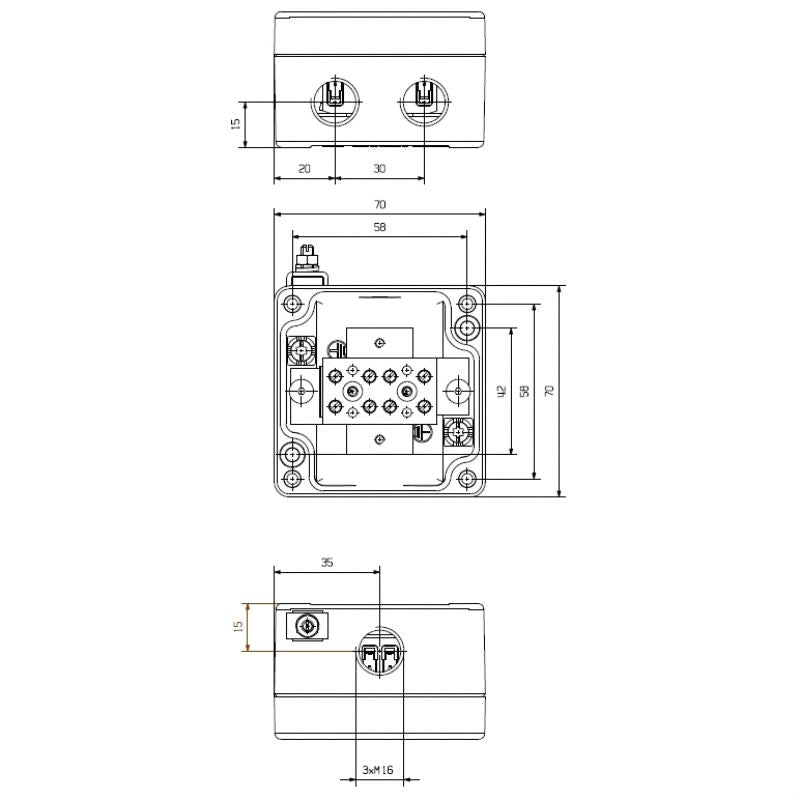

It complies with RoHS regulations and contains no SVHC substances exceeding 01 wt% With compact dimensions of 45 mm deep, 70 mm high, and 70 mm wide, it weighs in at 370 g, making it a robust and reliable choice for various applications.

Features and Benefits:

•Robust construction with untreated aluminium AlSi12.

•Protection degree of IP66 and IP67 for high dust and water resistance.

•ATEX II 2G Ex e IIC T6 certified, suitable for hazardous environments.

•Compliant with RoHS and REACH regulations.

Specifications:
