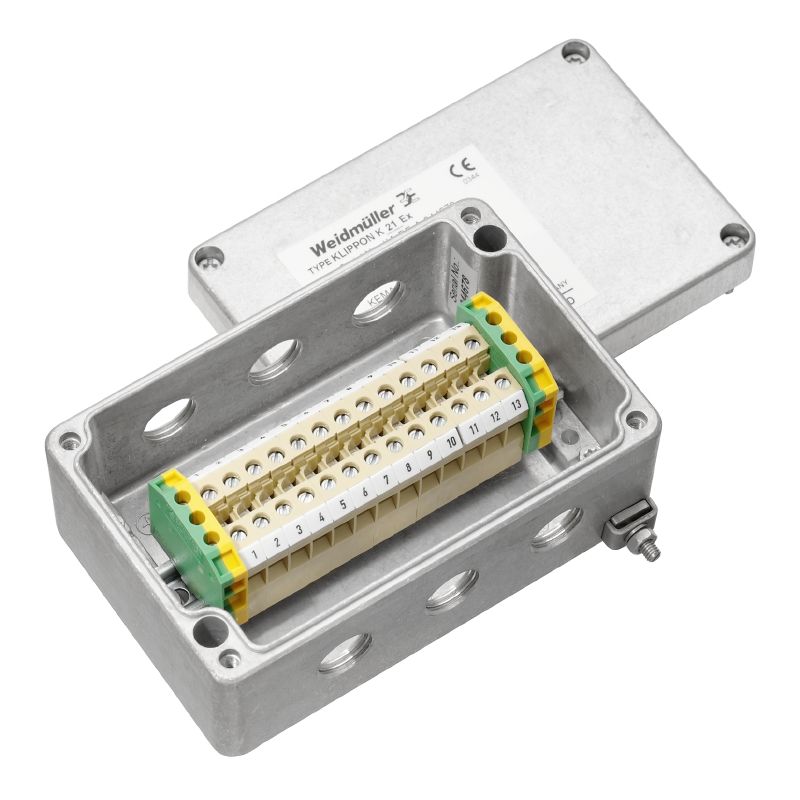

8000004212 - KLIPPON K21 Aluminium Terminal Box, ATEX Certified, IP66/IP67
8000004212 - KLIPPON K21 Aluminium Terminal Box, ATEX Certified, IP66/IP67
SKU: SKU: 8000004212 Download PDF
- 8000004212 - KLIPPON K21 Aluminium Terminal Box, ATEX Certified, IP66/IP67
- 8000004212 - KLIPPON K21 Aluminium Terminal Box, ATEX Certified, IP66/IP67
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Meet the KLIPPON K21 M16ACSS EX terminal box, a robust solution that conforms to ATEX ll 2GD T85°C Ex e ll T6 standards This terminal box is equipped with drill holes on both sides, featuring three M16x15 holes on each side for versatile connectivity It adheres to RoHS requirements, ensuring that no substances of very high concern (SVHC) exceed 01 wt% Crafted from aluminum AlSi12 with a raw surface finish, this terminal box offers formidable protection levels with IP66 and IP67 ratings, making it ideal for demanding environments.
Features and Benefits:
•Compliant with RoHS without exemptions.
•Three drill holes of M16x1.5 on each side.

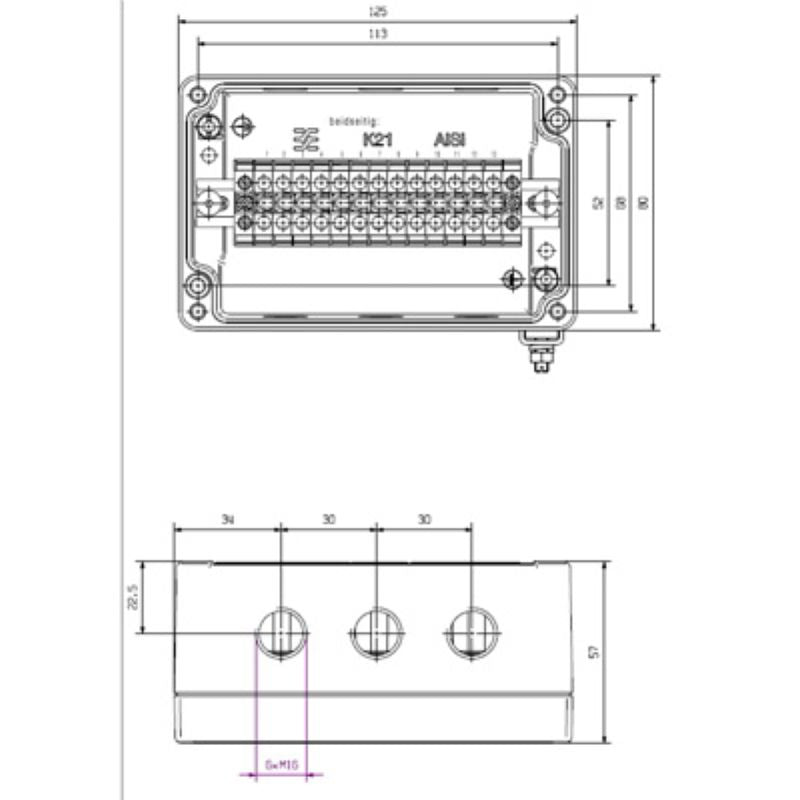

Specifications:
| Depth | 57 mm |
| Height | 80 mm |
| Width | 125 mm |
| Basic material | Aluminium AlSi12 |
| Protection degree | IP66, IP67 |
| Certificate no. Terminal Box (ATEX) | IBExU12ATEX1145 X |
| Certificate no. Terminal Box (IECEx) | IECEx IBE 13.0002X |
