8000004215 - ATEX Rated IP66 Aluminium Terminal Box with M20 Holes
8000004215 - ATEX Rated IP66 Aluminium Terminal Box with M20 Holes
SKU: SKU: 8000004215 Download PDF
- 8000004215 - ATEX Rated IP66 Aluminium Terminal Box with M20 Holes
- 8000004215 - ATEX Rated IP66 Aluminium Terminal Box with M20 Holes
Couldn't load pickup availability
Description:

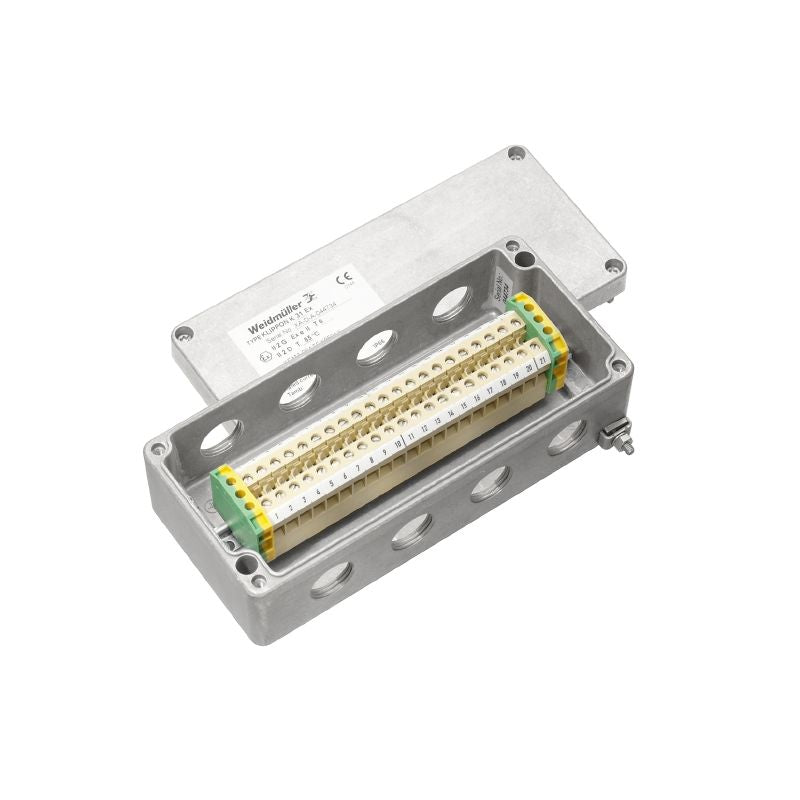

Introducing the KLIPPON K31 M20ACSS EX terminal box, specifically engineered for use in ATEX-rated environments classified as II 2GD T85°C Ex e II T6 This durable box features four drill holes (M20x15) located on both sides A and B Ensuring compliance with RoHS standards, it is free from substances of very high concern (SVHC) as per REACH regulations Constructed from untreated AlSi12 aluminium, this terminal box offers robust protection with an impressive IP66 and IP67 rating, making it suitable for various demanding applications.
Features and Benefits:
•ATEX certified terminal box suitable for hazardous environments.
•Compliant with RoHS without exemptions.
•Made of aluminium AlSi12.
•Includes features such as drill holes for easy mounting.
Specifications:

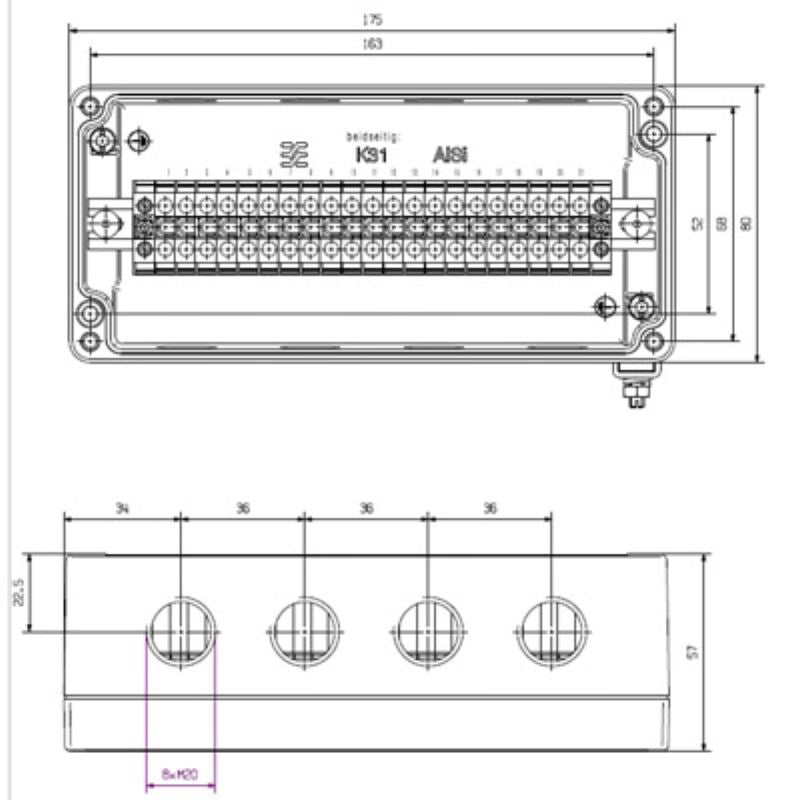

| Depth | 57 mm |
| Height | 80 mm |
| Width | 175 mm |
| Protection degree | IP66, IP67 |
| Material | Aluminium AlSi12 |
| Drill holes side A | 4 x M20x1.5 |
| Drill holes side B | 4 x M20x1.5 |
| Certificate no. Terminal Box (ATEX) | IBExU12ATEX1145 X |
| Certificate no. Terminal Box (IECEx) | IECEx IBE 13.0002X |
