Description:

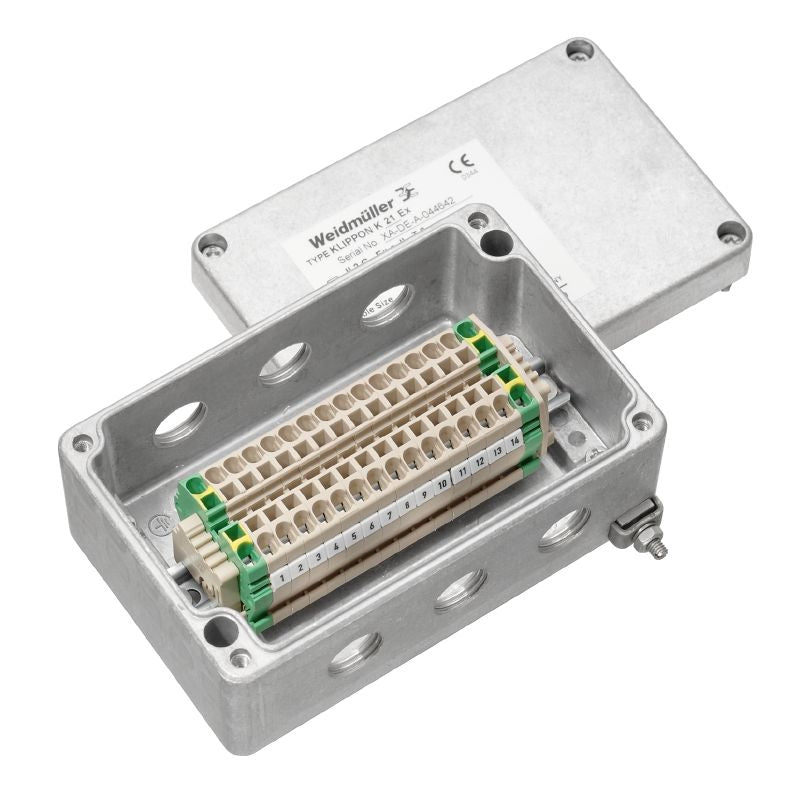

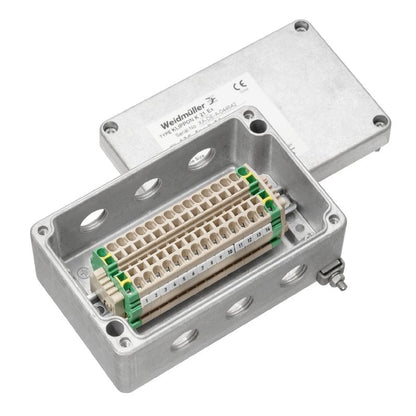

Introducing the KLIPPON K21 M16ZCSS EX terminal box, expertly crafted for safe usage in hazardous settings With its ATEX certification, this terminal box is specifically rated for environments classified as 2GD T85°C Ex e ll T6 It boasts convenient mounting options, featuring drill holes on both sides, each equipped with three M16x15 holes for easy installation Compliant with RoHS standards, this product guarantees the absence of restricted substances.
Furthermore, it meets IECEx and ATEX type approvals, ensuring top-notch safety Constructed from untreated aluminum (AlSi12), the terminal box provides robust protection with an impressive IP66 and IP67 rating against dust and water ingress.
Features and Benefits:
•Constructed from untreated aluminum for durability.
•Meets IP66 and IP67 standards for environmental protection.
•Compatible with explosive atmosphere requirements.
•Complies with RoHS and REACH regulations.

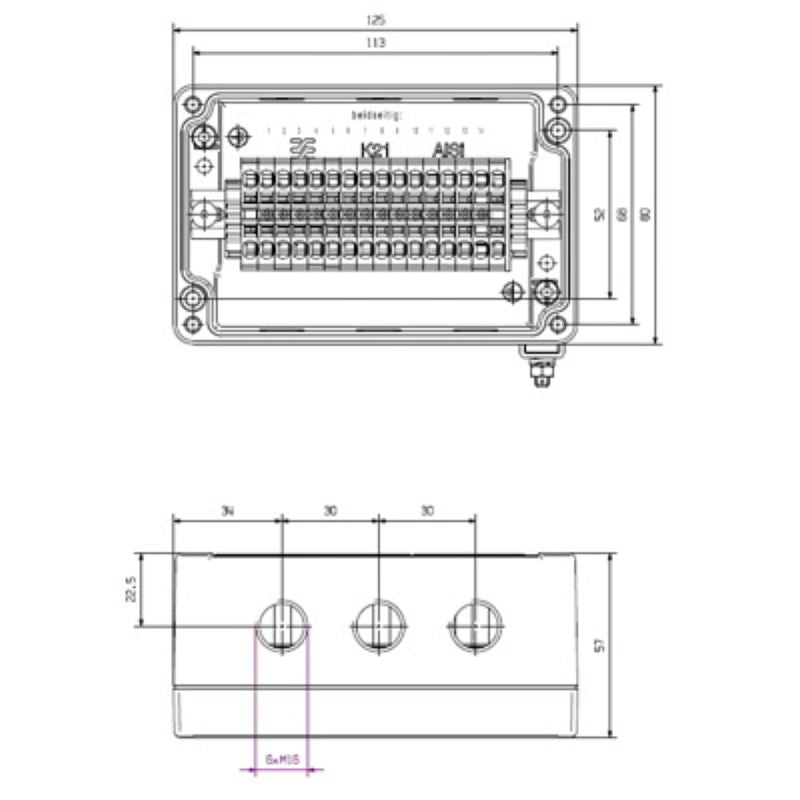

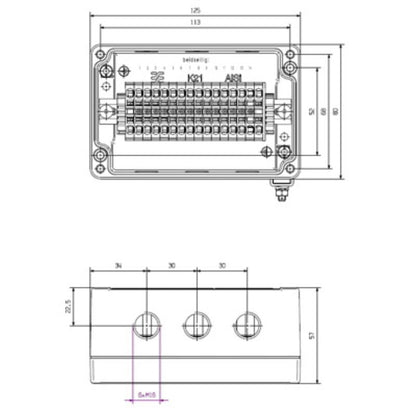

Specifications:
| Depth | 57 mm |
| Height | 80 mm |
| Width | 125 mm |
| Net weight | 549 g |
| Basic material | Aluminium AlSi12 |
| Protection degree | IP66 and IP67 |
| Drill holes side A | 3 x M16x1.5 |
| Drill holes side B | 3 x M16x1.5 |
| ATEX classification | ATEX ll 2GD T85°C Ex e ll T6 |
| Certificate no. Terminal Box (ATEX) | IBExU12ATEX1145 X |
| Certificate no. Terminal Box (IECEx) | IECEx IBE 13.0002X |
| General approval | RoHS compliant without exemption |
