8000004210 - KLIPPON K2 M20BCSS EX ATEX Terminal Box, Dual M20 Holes
8000004210 - KLIPPON K2 M20BCSS EX ATEX Terminal Box, Dual M20 Holes
SKU: SKU: 8000004210 Download PDF
Select a Variant:
- 8000004210 - KLIPPON K2 M20BCSS EX ATEX Terminal Box, Dual M20 Holes
- 8000004210 - KLIPPON K2 M20BCSS EX ATEX Terminal Box, Dual M20 Holes
Qty:
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Description:

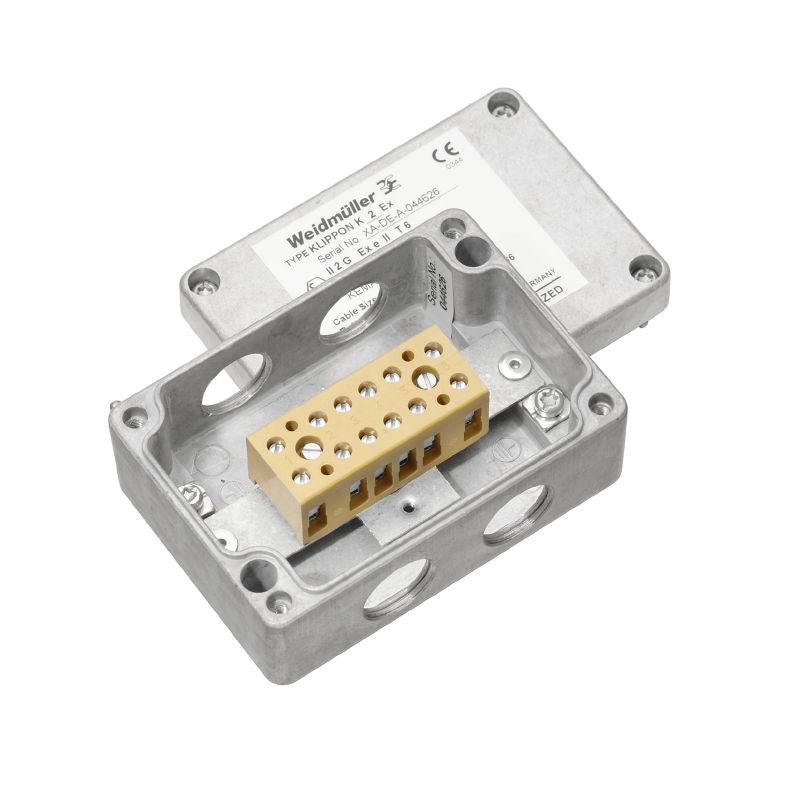

Introducing the KLIPPON K2 M20BCSS EX terminal box, expertly engineered for use in ATEX ll 2GD T85°C Ex e ll T6 environments This versatile box boasts dual M20x15 drill holes on each side, providing flexibility for installation Adhering to RoHS regulations, it contains no SVHC materials exceeding 01 wt% Its standard size makes it an excellent choice for a wide range of application scenarios.
Features and Benefits:
•Protection degree IP66 and IP67.
•Basic material is untreated aluminium AlSi12.

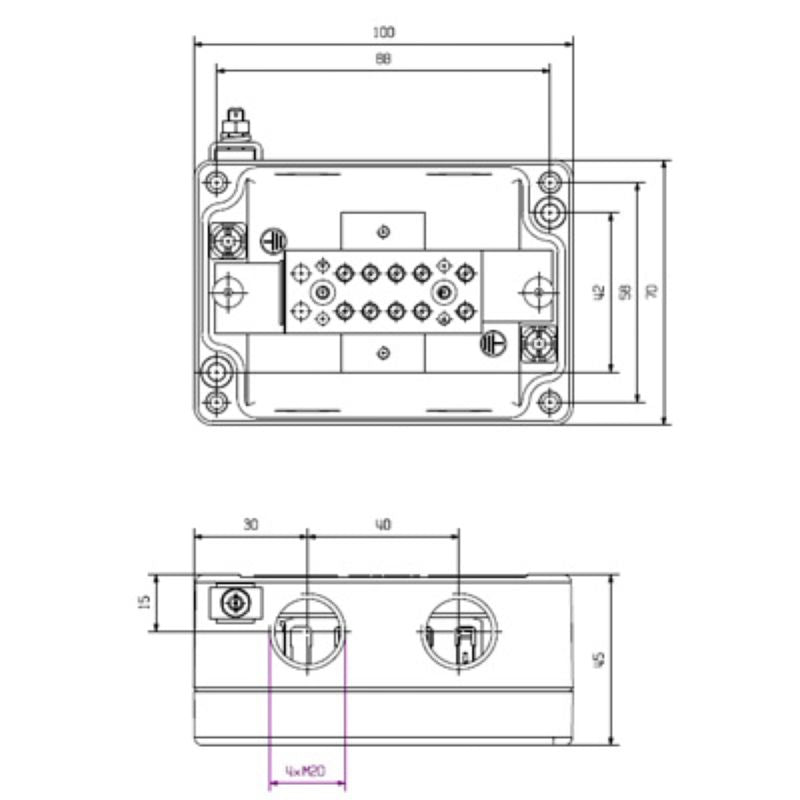

Specifications:
| Depth | 45 mm |
| Height | 70 mm |
| Width | 100 mm |
| Drill holes side A | 2 x M20x1.5 |
| Drill holes side B | 2 x M20x1.5 |
| Protection degree | IP66, IP67 |
| Certificate no. Terminal Box (ATEX) | IBExU12ATEX1145 X |
| Certificate no. Terminal Box (IECEx) | IECEx IBE 13.0002X |
| ETIM 6.0 | EC002503 |
| ETIM 7.0 | EC002503 |
| ETIM 8.0 | EC002503 |
| ETIM 9.0 | EC002503 |
| ETIM 10.0 | EC002503 |
| ECLASS 9.0 | 27-18-05-02 |
| ECLASS 9.1 | 27-18-05-90 |
| ECLASS 10.0 | 27-18-05-02 |
| ECLASS 11.0 | 27-18-05-02 |
| ECLASS 12.0 | 27-18-05-02 |
| ECLASS 13.0 | 27-18-05-02 |
| ECLASS 14.0 | 27-18-05-02 |
| ECLASS 15.0 | 27-18-05-02 |
