Description:

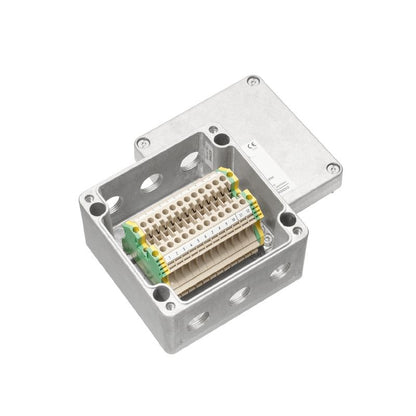

Introducing the KLIPPON K41 M20WCSS EX terminal box, engineered for ATEX compliant applications with a robust rating of II 2GD T85°C Ex e II T6 This versatile enclosure is equipped with M20x15 connection holes on both sides (A and B), allowing for adaptable installation configurations Constructed from untreated Aluminium AlSi12, it ensures long-lasting durability while adhering to environmental standards, including RoHS compliance.

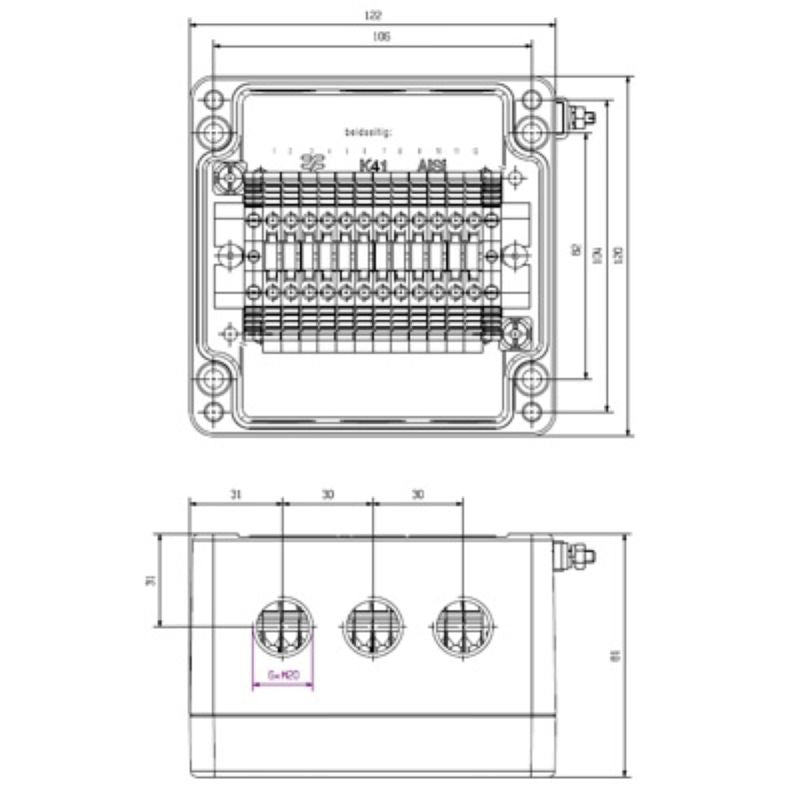

Weighing in at 1,235 grams, this terminal box measures 81 mm in depth, 120 mm in height, and 122 mm in width, making it a reliable choice for your installation needs.
Features and Benefits:
•IP66 and IP67 protection degrees.
•Compliant with RoHS without exemptions.
•Includes certification for ATEX and IECEx.
Specifications:
| Depth | 81 mm |
| Height | 120 mm |
| Width | 122 mm |
| Net weight | 1,235 g |
| Basic material | Aluminium AlSi12 |
| Surface finish | untreated |
| Drill holes side A | 3 x M20x1.5 |
| Drill holes side B | 3 x M20x1.5 |
| Protection degree | IP66, IP67 |
| ATEX version | II 2GD T85°C Ex e II T6 |
| Certificate no. (ATEX) | IBExU12ATEX1145 X |
| Certificate no. (IECEx) | IECEx IBE 13.0002X |
