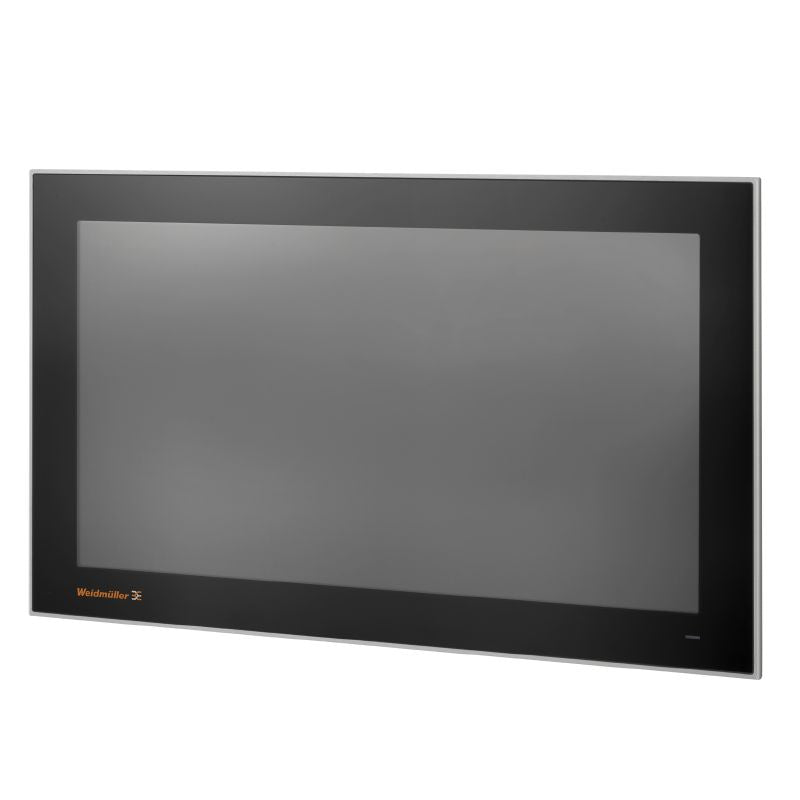

2987520000 - 21.5" Touchscreen Display with Aluminum Frame & 1920x1080 Resolution

2987520000 - 21.5" Touchscreen Display with Aluminum Frame & 1920x1080 Resolution

SKU: SKU: 2987520000 Download PDF

Regular price Now $2,104.17
Regular price BEFORE   $0.00 Sale price Now $2,104.17
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the UV66-ADV-21-CAP-W-V2, a cutting-edge device that meets RoHS compliance and boasts UL certification (certificate number E230683) With a modern aesthetic, it measures 5584 mm in width, 3498 mm in height, and 52 mm in depth, all while weighing a mere 6,950 grams This model can withstand storage temperatures ranging from -30 °C to +70 °C and performs effectively in operational conditions from -20 °C to 60 °C, even in high humidity levels of up to 95% at 40 °C.

The device showcases a glass display framed in aluminum, delivering an impressive brightness of 250 cd/m² and showcasing 16,700,000 colors at a sharp resolution of 1920 x 1080 on a 215-inch screen Its advanced projected capacitive touch-screen technology is accompanied by the robust Linux Yocto 40 operating system, powered by an NXP ARM Cortex-A53 iMX 8M Mini processor for exceptional performance.

Versatile and user-friendly, this model offers dual USB 20 ports and two Ethernet ports supporting speeds of 10/100/1000 MBit/s, alongside 16 GB of flash storage and 4 GB of RAM Elevate your interactive experience with a reliable and stylish solution that meets your connectivity needs.

Features and Benefits:

    •Compliant with RoHS and UL certification.

    •Displays 16,700,000 colors.

    •Robust and sleek design with an aluminium coated frame.

    •High luminance of 250 cd/m².

Specifications:

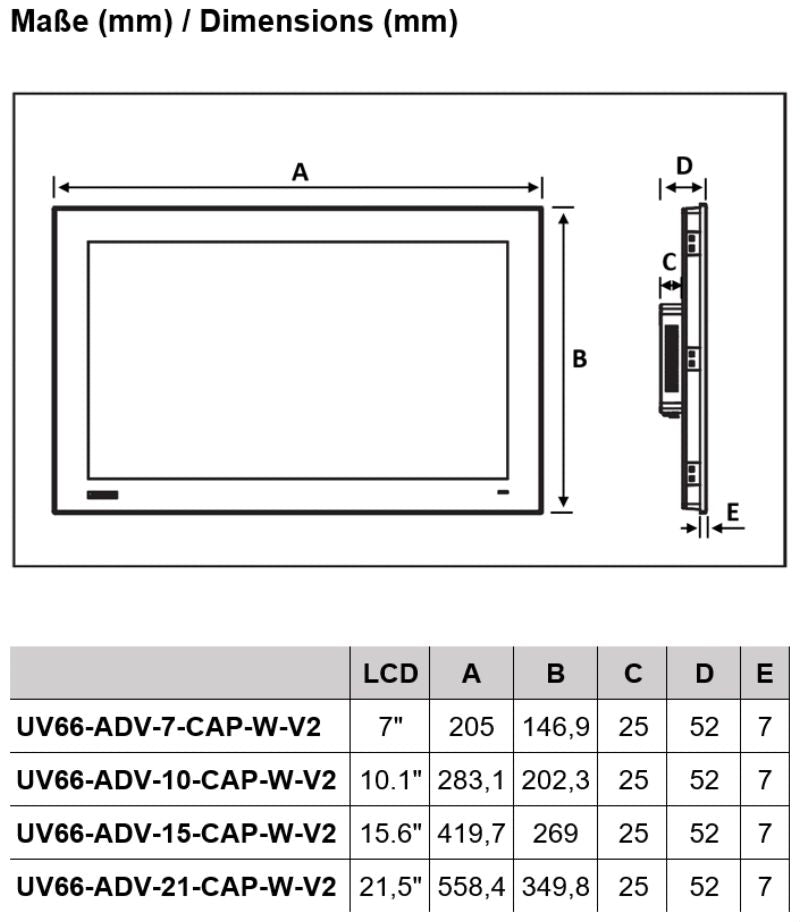

 Depth 52 mm
 Height 349.8 mm
 Width 558.4 mm
 Storage temperature -30 °C ... +70 °C
 Operating temperature -20 °C ... 60 °C
 Humidity 95% relative humidity, non-condensing @ 40°C
 Luminance 250 cd/m²
 Material display Glass
 Material frame Aluminium coated
 Resolution 1920 x 1080
 Size 21.5"
 Touch-Screen Projected capacitive (P-CAP)
 Operating system Linux Yocto 4.0
 Protection degree Built-in: IP66, Enclosure: IP20
 Voltage supply 24 V DC
 Voltage supply range 19.2 V to 28.8 V
 Interfaces 2x USB 2.0, 2 x Ethernet 10/100/1000 MBit/s (RJ45)
 Memory (Flash) 16 GB
 Memory (RAM) 4 GB
 Processor NXP ARM Cortex-A53 i.MX 8M Mini
 Classifications ETIM 6.0 EC001412, ECLASS 9.0 27-33-02-01
