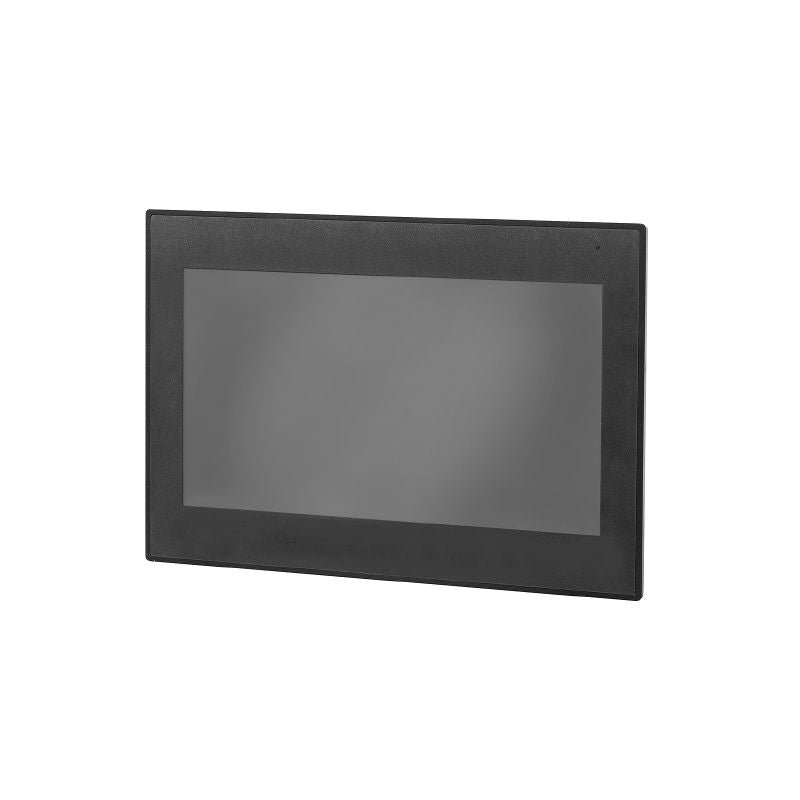

2555790000 - 10.1" IP66 Web-Compatible Touch Panel - Durable Design
2555790000 - 10.1" IP66 Web-Compatible Touch Panel - Durable Design
SKU: SKU: 2555790000 Download PDF
- 2555790000 - 10.1" IP66 Web-Compatible Touch Panel - Durable Design
- 2555790000 - 10.1" IP66 Web-Compatible Touch Panel - Durable Design
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

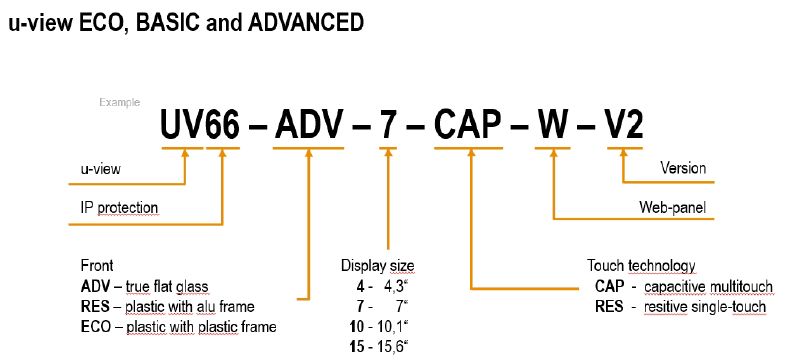

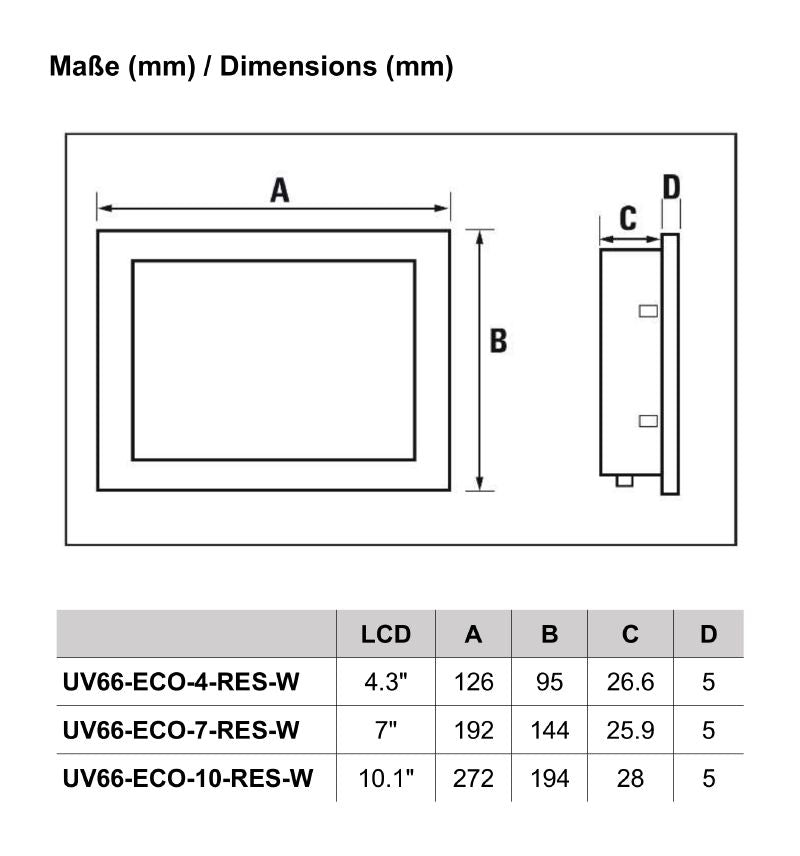

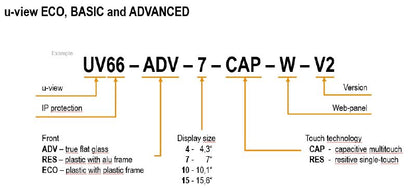

Introducing the UV66-ECO-10-RES-W, a touch panel that seamlessly integrates with web applications Boasting a 101-inch resistive touchscreen, this device is built to withstand demanding environments with an IP66 front protection rating Its solid construction measures 268 mm in width, 190 mm in height, and 368 mm in depth, making it a reliable choice for various industrial uses and applications.
Features and Benefits:
•Top and Bottom angle of 70°.
•Luminance of 400 cd/m².
•Display is made of plastic.
•Capable of displaying 16 million colors.
•Resolution of 1024 x 600.
•Current consumption of 0.35 A at 24 V.
•Protection degree IP66.
Specifications:
| Depth | 36.8 mm |
| Height | 190 mm |
| Width | 268 mm |
| Net weight | 882 g |
| Storage temperature | -20 °C ... +85 °C |
| Operating temperature | 0 °C ... +50 °C |
| Humidity | 10 - 95% relative humidity, non-condensing |
| Current consumption | 0.35 A |
| Voltage supply | 24 V DC |
| Voltage supply range | 20.4 V - 27.6 V |
| Interfaces | 1x Ethernet 10/100 MBit/s (RJ45) |
| Memory (Flash) | 4 GB |
| Memory (RAM) | 1 GB |
| Processor | Dual Core ARM Cortex-A9, 1 GHz (GPU 2D / GPU 3D support) |
| Operating system | Linux + Browser (HTML5) |
