1334950000 - UC20 WL2000 Automation Controller for IIoT & Real-Time Systems
1334950000 - UC20 WL2000 Automation Controller for IIoT & Real-Time Systems
SKU: SKU: 1334950000 Download PDF
- 1334950000 - UC20 WL2000 Automation Controller for IIoT & Real-Time Systems
- 1334950000 - UC20 WL2000 Automation Controller for IIoT & Real-Time Systems
Couldn't load pickup availability
Description:

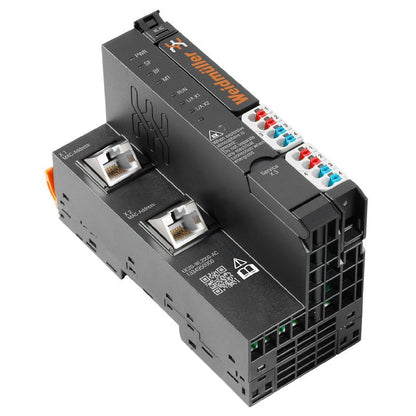

Introducing the UC20-WL2000-AC, an advanced web-based automation controller tailored for real-time systems and Industrial Internet of Things (IIoT) applications This controller boasts integrated engineering tools, including u-create web, and is compatible with CODESYS (u-OS), ensuring optimal performance across various environments Perfectly engineered for versatility and efficiency, it meets the needs of modern automation with ease.
Features and Benefits:
•Web-based engineering tools provide easy configuration.
•Supports real-time system and IIoT applications.
•Compliant with RoHS and includes exemption details.

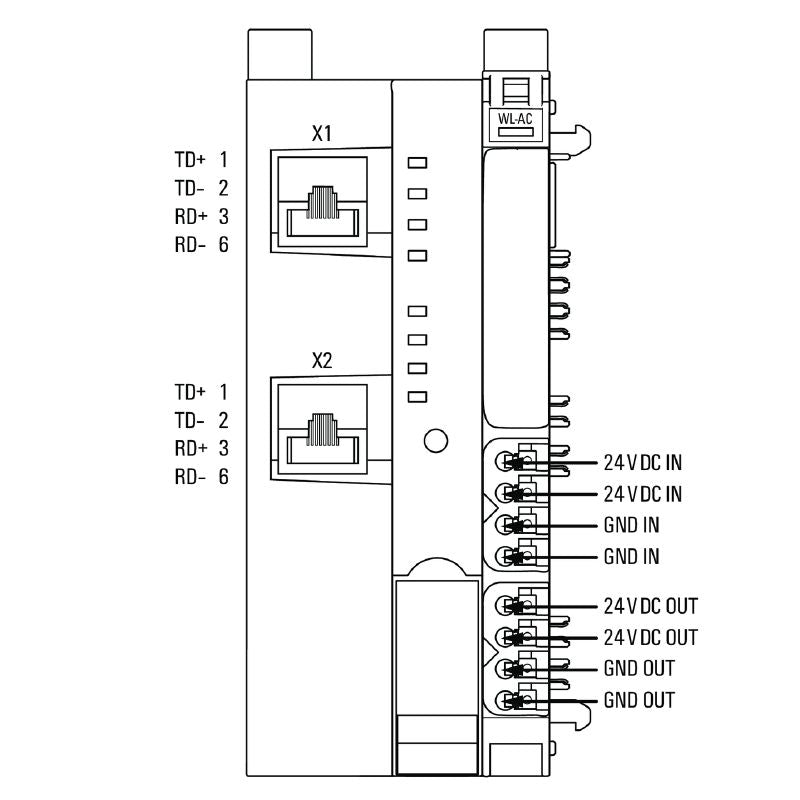

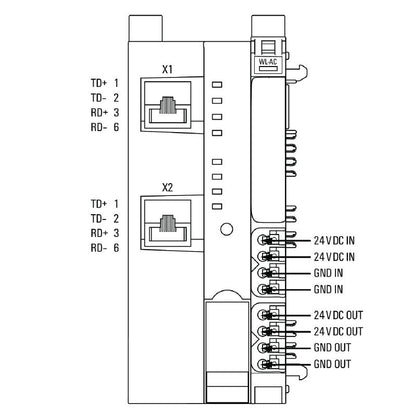

•Connection type includes PUSH IN with 2 x RJ45.
•Includes matching end brackets with the controller.
Specifications:
| Depth | 76 mm |
| Height | 120 mm |
| Width | 52 mm |
| Net weight | 232 g |
| Storage temperature | -40 °C ... +85 °C |
| Operating temperature | -20 °C...55 °C |
| Current consumption from I sys, typ. | 116 mA |
| Feed current for I IN (input current path), max. | 5 A |
| Feed current for I OUT (output current path), max. | 5 A |
| Supply voltage for outputs | 24 V DC +20 %/ -15 % |
| Supply voltage system and inputs | 24 V DC +20 %/ -15 % |
| Configuration interface | Micro USB 2.0 |
| Max. number of modules | 64 |
| Memory (Flash) | 8 GB, 32 GB via microSD |
| Processor | Dual Core ARM Cortex A9, 624 MHz, 512 Mbyte RAM |
| Transmission speed backplane bus, max. | 48 Mbit |
