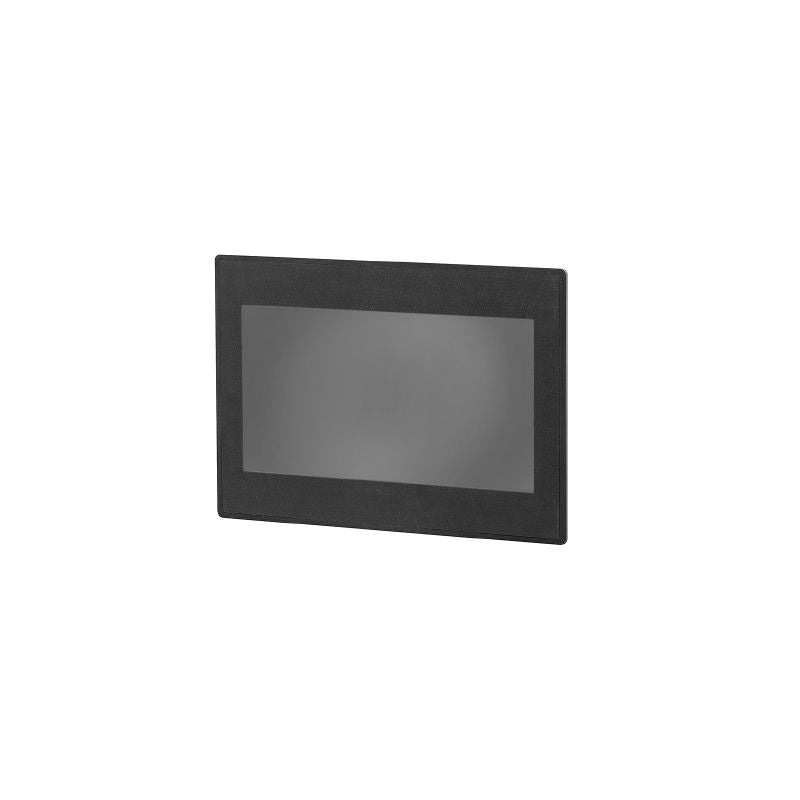

2555780000 - 7" Web-Compatible Touch Panel with IP66 Durability
2555780000 - 7" Web-Compatible Touch Panel with IP66 Durability
SKU: SKU: 2555780000 Download PDF
- 2555780000 - 7" Web-Compatible Touch Panel with IP66 Durability
- 2555780000 - 7" Web-Compatible Touch Panel with IP66 Durability
Couldn't load pickup availability
Description:

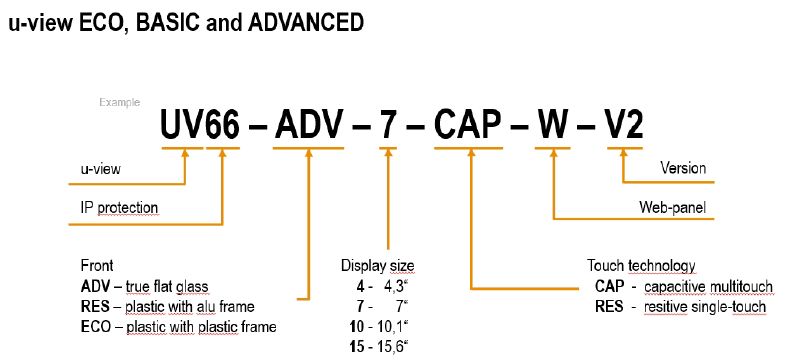

Introducing the UV66-ECO-7-RES-W, a seamless web-compatible touch panel featuring a 7-inch resistive display Built to withstand tough conditions, this device boasts a front protection rating of IP66, ensuring exceptional durability Its dimensions are 138 mm in height, 186 mm in width, and a depth of 353 mm, designed for wall installations with a thickness ranging from 2 mm to 6 mm This touch panel operates effectively in a wide temperature range, with storage capabilities from -20 °C to +85 °C and optimal performance at temperatures between 0 °C and +50 °C.
Additionally, it maintains functionality in environments with relative humidity levels of 10 - 95%, non-condensing.
Features and Benefits:
•Displays 16 million colors.
•Resolution of 800 x 480 pixels.
•Luminance of 350 cd/m².
•Operating system is Linux combined with HTML5 browser.
•IP66 protection degree for increased durability.
•Low current consumption of 0.25 A at 24 V.
Specifications:

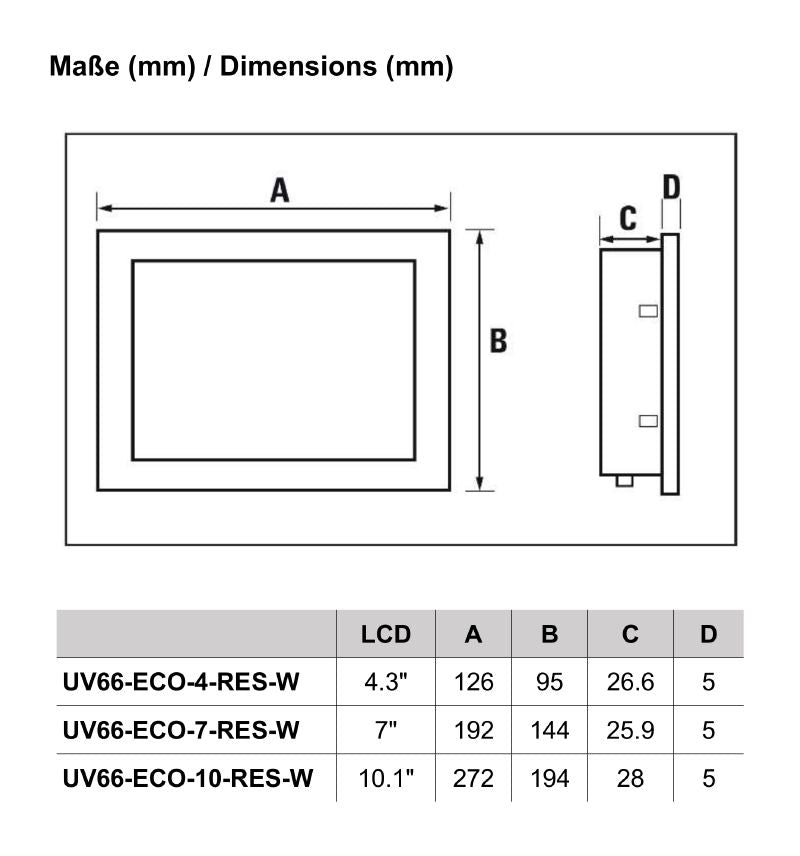

| Depth | 35.3 mm |
| Depth (inches) | 1.39 inch |
| Height | 138 mm |
| Height (inches) | 5.433 inch |
| Width | 186 mm |
| Width (inches) | 7.323 inch |

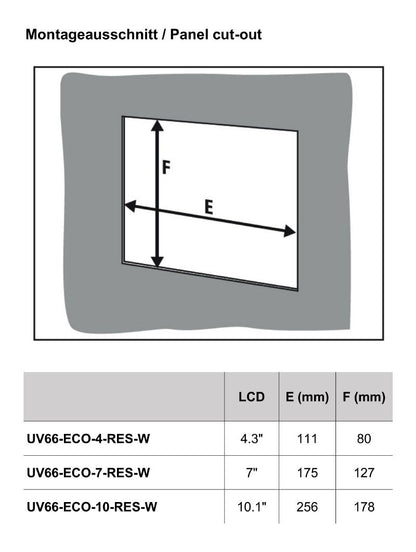

| Wall thickness, min. | 2 mm |
| Wall thickness, max. | 6 mm |
| Net weight | 472 g |
| Storage temperature | -20 °C ... +85 °C |
| Operating temperature | 0 °C ... +50 °C |
| Humidity | 10 - 95% relative humidity, non-condensing |
| Current consumption | 0.25 A |
| Voltage supply | 24 V DC |
| Voltage supply range | 20.4 V - 27.6 V |
| Memory (Flash) | 4 GB |
| Memory (RAM) | 1 GB |
| Processor | Dual Core ARM Cortex-A9, 1 GHz |
| Protection degree | IP66 |
| Ethernet interface | 1x Ethernet 10/100 MBit/s (RJ45) |
| USB interface | 1x USB-C |
| Operating system | Linux + Browser (HTML5) |
