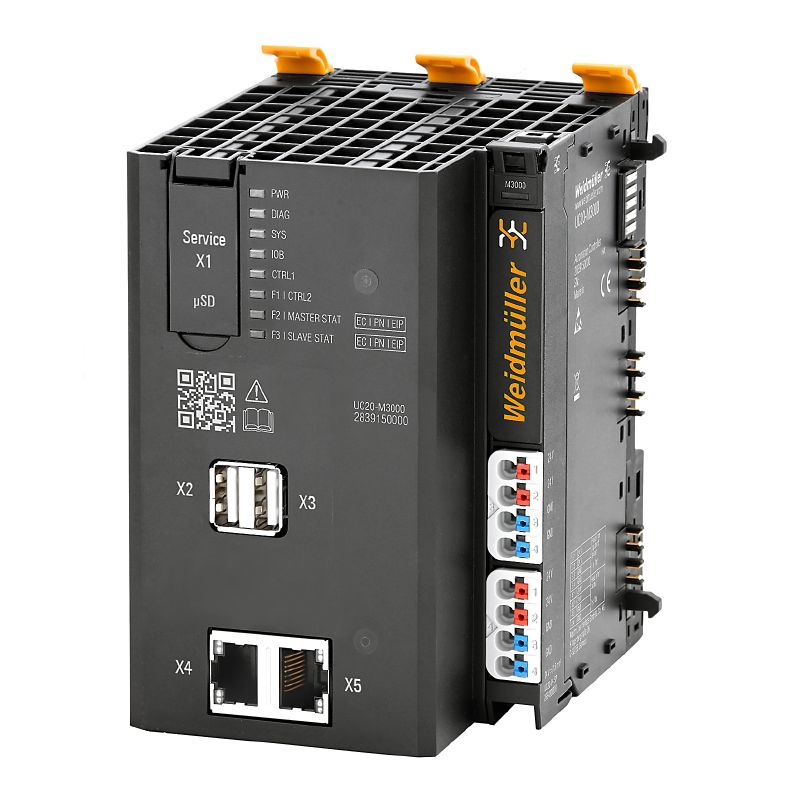

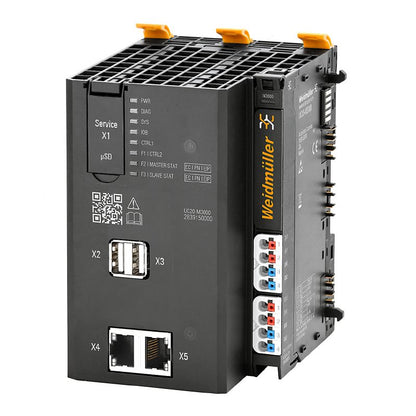

2839150000 - UC20-M3000 IP20 Automation Controller, 24 VDC Input
2839150000 - UC20-M3000 IP20 Automation Controller, 24 VDC Input
SKU: SKU: 2839150000 Download PDF
- 2839150000 - UC20-M3000 IP20 Automation Controller, 24 VDC Input
- 2839150000 - UC20-M3000 IP20 Automation Controller, 24 VDC Input
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the UC20-M3000 controller, specifically crafted for automation tasks This unit operates on a 24 VDC input and comes with IP20-rated protection, ensuring it stands up to various environmental conditions With its compliance to multiple standards, you can trust in its durability and compatibility for your automation needs.
Features and Benefits:
•Controller is suitable for IP20 applications.
•Includes matching end brackets with the control.
•USB-C (3.1) configuration interface and MicroSD card supported.
•Supports field bus protocols like EtherNet/IP and PROFINET.
•Has dual-core ARM Cortex A53 processor running at 1200 MHz.
Specifications:
| Depth | 101 mm |
| Height | 120 mm |
| Width | 80 mm |
| Net weight | 588 g |
| Operating temperature | -40 °C...70 °C |
| Storage temperature | -40 °C ... +85 °C |
| Air humidity (operation) | 10% to 95%, non-condensing |
| Air pressure (operation) | ≥ 795 hPa |
| Feed current for IOUT (max) | 10 A |
| Supply voltage for outputs | 24 V DC +20 %/ -15 % |
| Processor | Dual Core ARM Cortex A53, 1200 MHz |
| Memory (Flash) | 16 GB |
