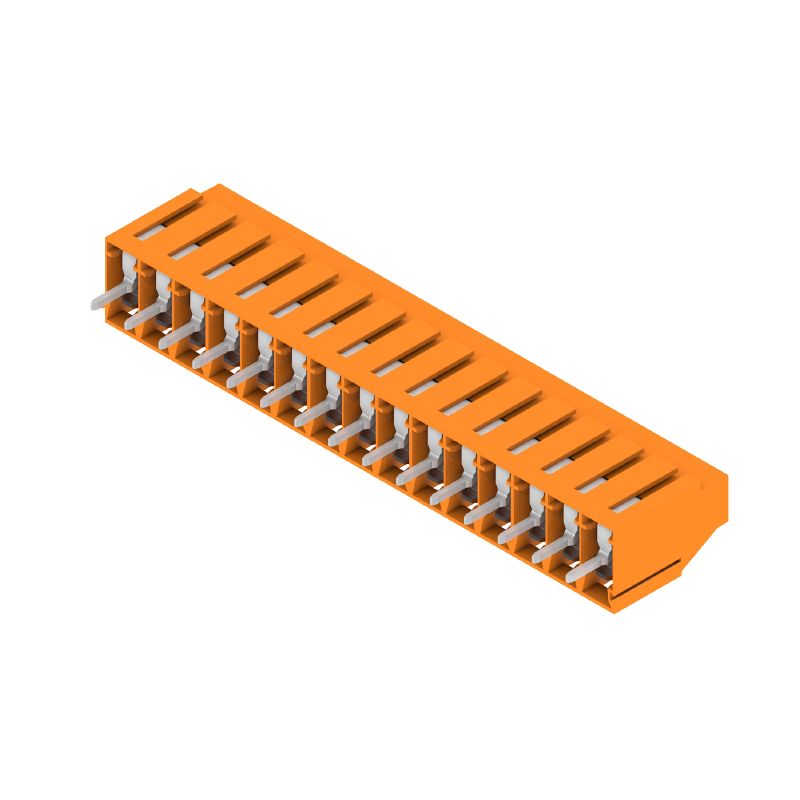

2567240000 - 15-Pole Orange PCB Terminal with 4.5mm Solder Pins (Pack of 24)

2567240000 - 15-Pole Orange PCB Terminal with 4.5mm Solder Pins (Pack of 24)

SKU: SKU: 2567240000   Download PDF

Select a Variant:
  • 2567240000 - 15-Pole Orange PCB Terminal with 4.5mm Solder Pins (Pack of 24)
Qty:
Regular price Now $164.02   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $164.02 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover reliable connectivity with this printed circuit board terminal, expertly designed with 15 poles for optimal performance Ideal for 90° solder pin connections, it boasts a solder pin length of 45 mm, enhanced with a durable tinned finish The vibrant orange terminal utilizes a clamping yoke connection, accommodating a maximum clamping range of 6 mm² Each box includes 24 terminals, making it a practical choice for your projects.

Features and Benefits:

    •Clamping yoke connection for easy wire attachment.

    •WireReady property for enhanced functionality.

    •Touch-safe protection according to DIN VDE standards.

    •Constructed from durable materials for reliability.

    •Easy assembly with THT solder connection.

Specifications:

 IEC Rated Voltage 500 V
 Rated Current 32.5 A
 Clamping range 0.5 - 6 mm²
 Tightening torque 0.5 to 0.6 Nm
 Solder pin dimensions 0.75 x 0.9 mm
 Protection degree IP20
 Storage temperature range -40 °C to 70 °C
 Operating temperature range -25 °C to 120 °C
