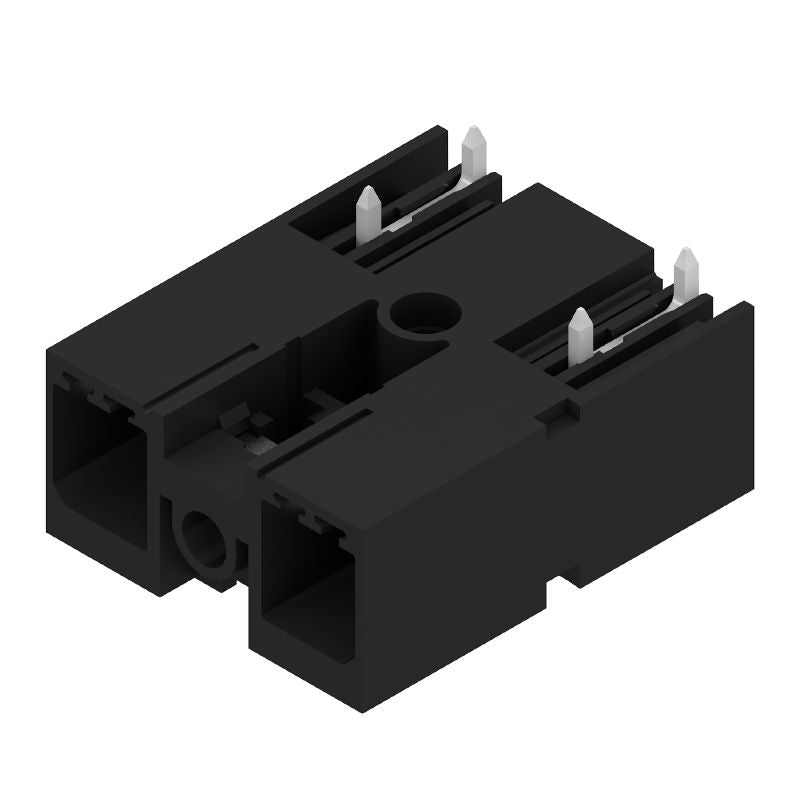

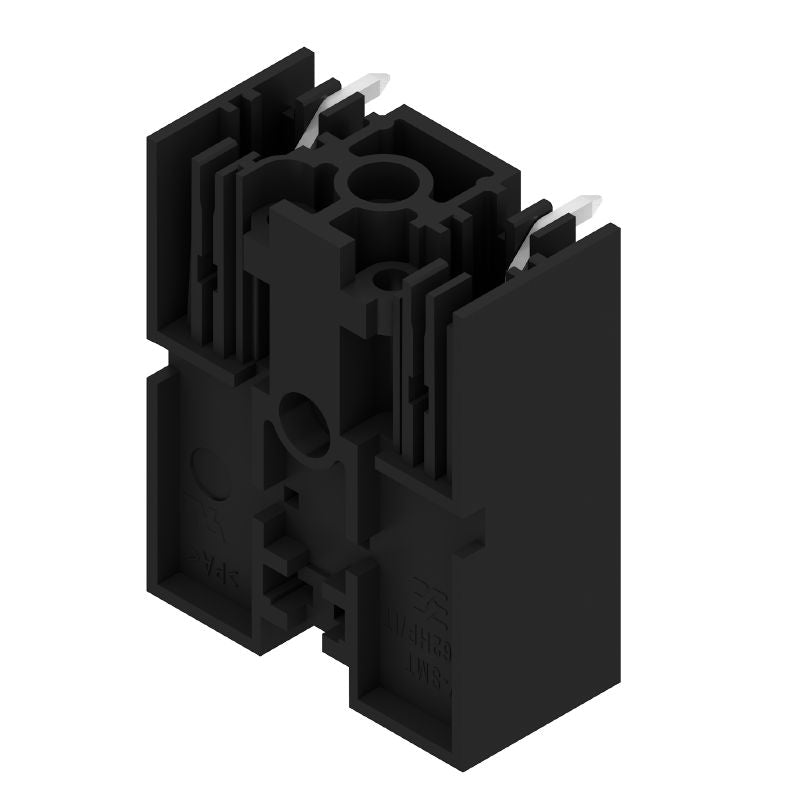

2546060000 - 2-Pole PCB Connector, 7.62mm Pitch, Tinned Black Finish (Pack of 110)

2546060000 - 2-Pole PCB Connector, 7.62mm Pitch, Tinned Black Finish (Pack of 110)

SKU: SKU: 2546060000   Download PDF

Select a Variant:
  • 2546060000 - 2-Pole PCB Connector, 7.62mm Pitch, Tinned Black Finish (Pack of 110)
Qty:
Regular price Now $348.62   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $348.62 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Enhance your PCB projects with this male header plug-in connector, expertly designed for secure mounting Featuring a middle screw flange, it supports THT/THR solder connections and boasts a pitch of 762 mm with a configuration for 2 poles at a 270° angle The solder pin length is 26 mm, and the connector is elegantly finished with a tinned black plating Compliant with RoHS standards and UL certified (certificate number E60693), this reliable component ensures quality and safety for your electronics applications.

Features and Benefits:

    •Solder pin dimensions of 0.8 x 1.0 mm.

    •Touch-safe protection according to DIN VDE standards.

    •High current capacity of up to 41 A.

    •Flexible installation options with THT/THR connections.

    •Insulation resistance of ≧ 10⁸ Ω.

    •Volume resistance of 2.00 mΩ.

Specifications:

 IEC Voltage Rating 1000 V / 41 A
 UL Voltage Rating 300 V / 40.5 A
 Operating Temperature Max 130 °C
 Storage Temperature Min -40 °C
 Creepage Distance Min 9.6 mm
 Clearance Distance Min 6.9 mm
 Number of Solder Pins per Pole 2
 Protection Degree IP20
 Insulating Material PA 9T
 Material Cu-alloy
